OVERVIEW

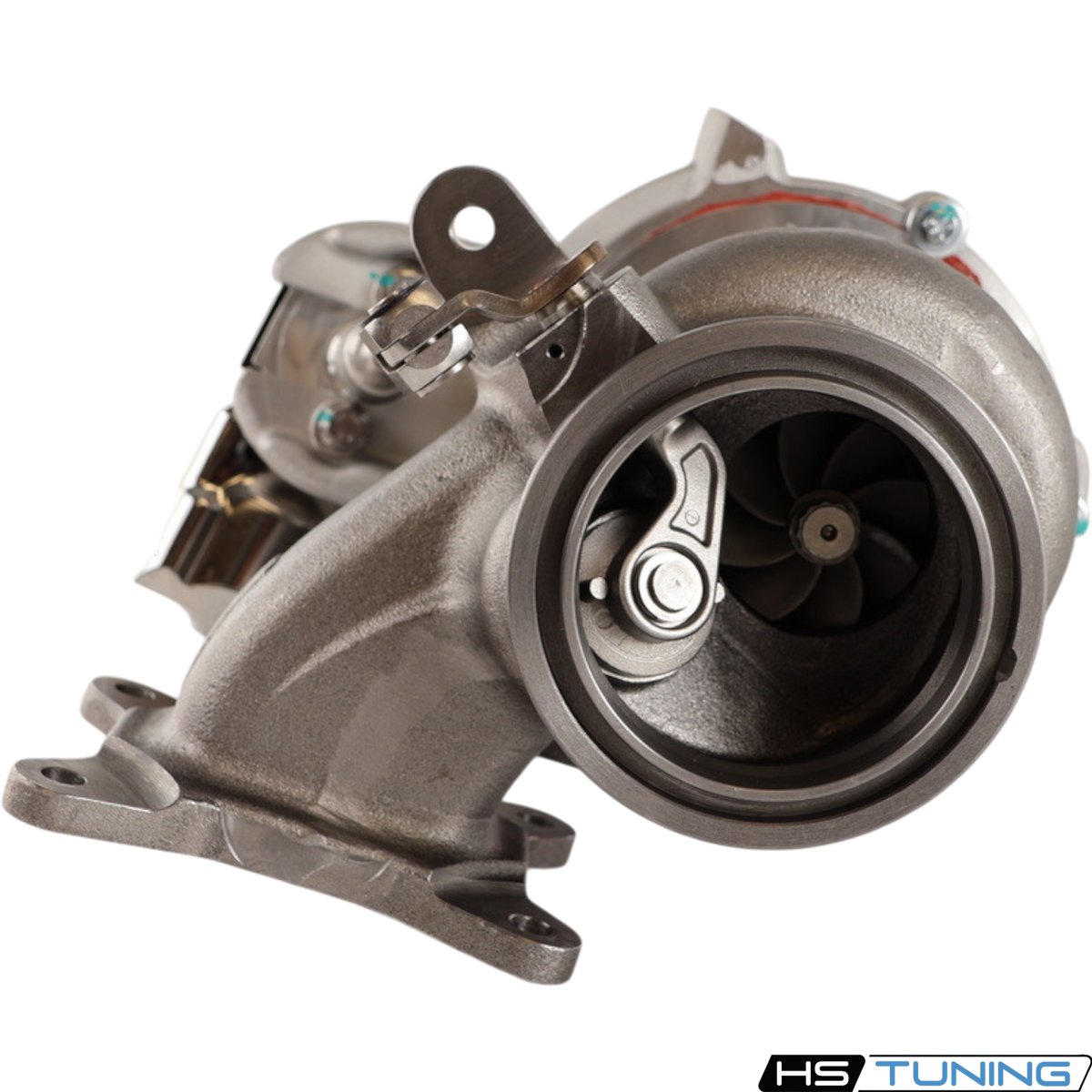

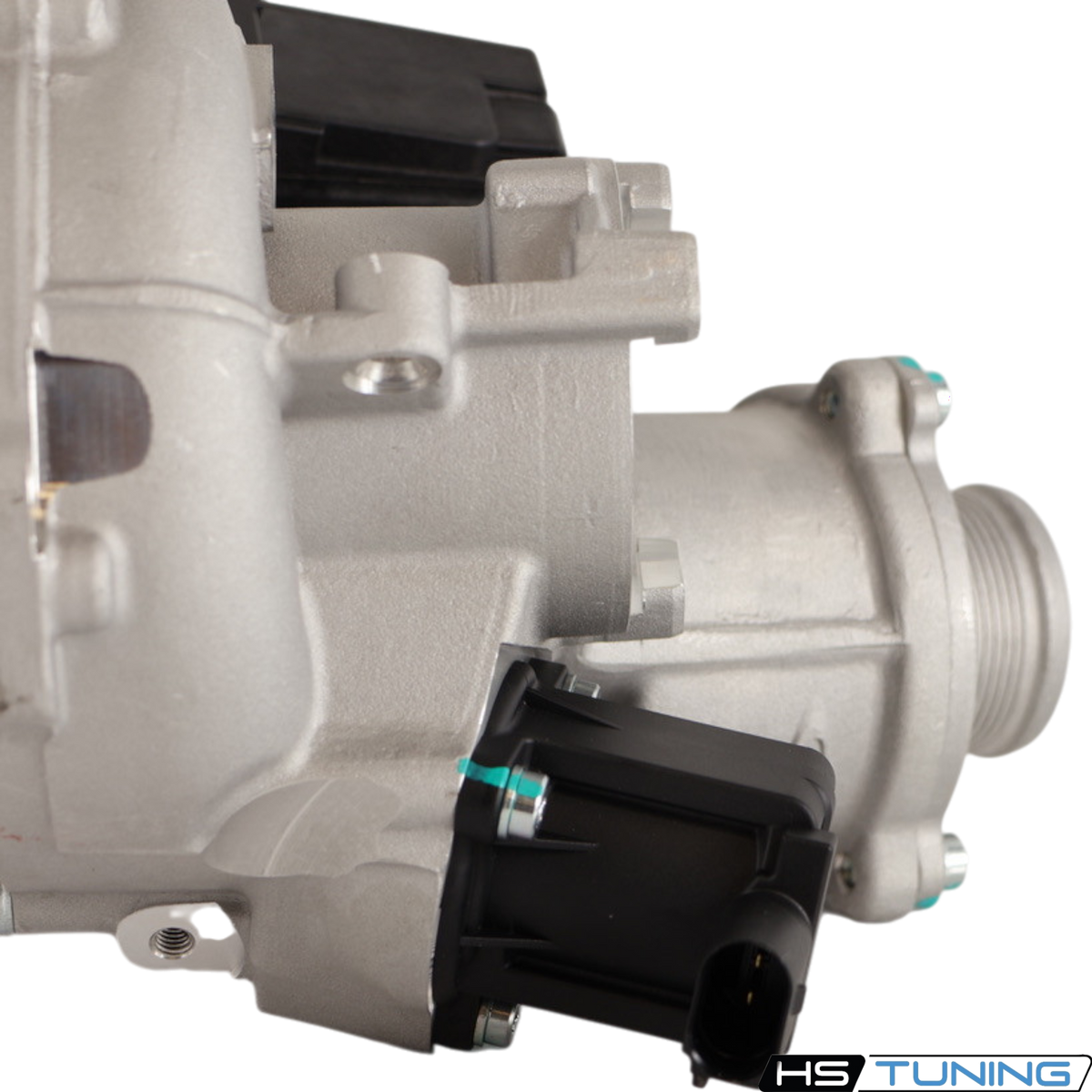

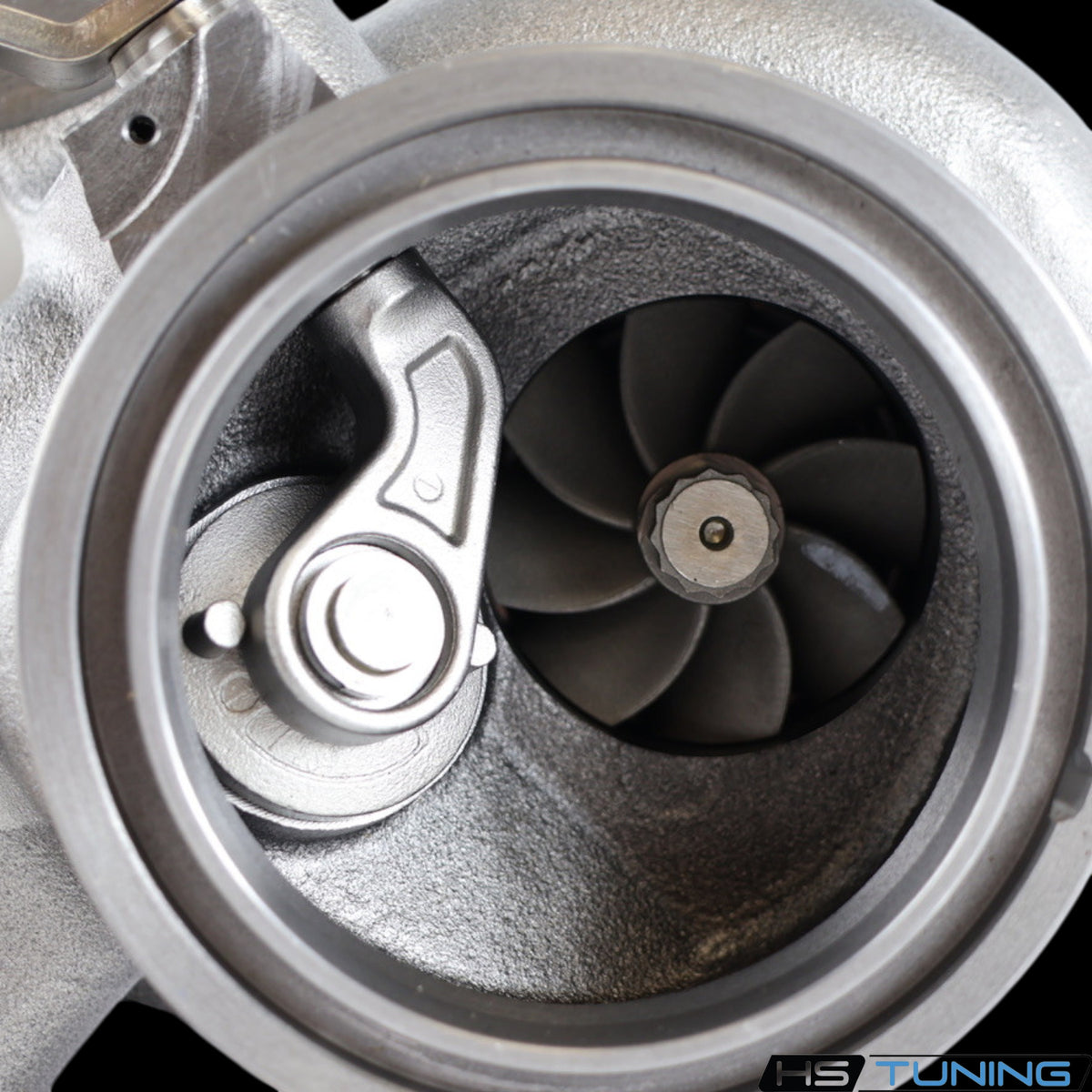

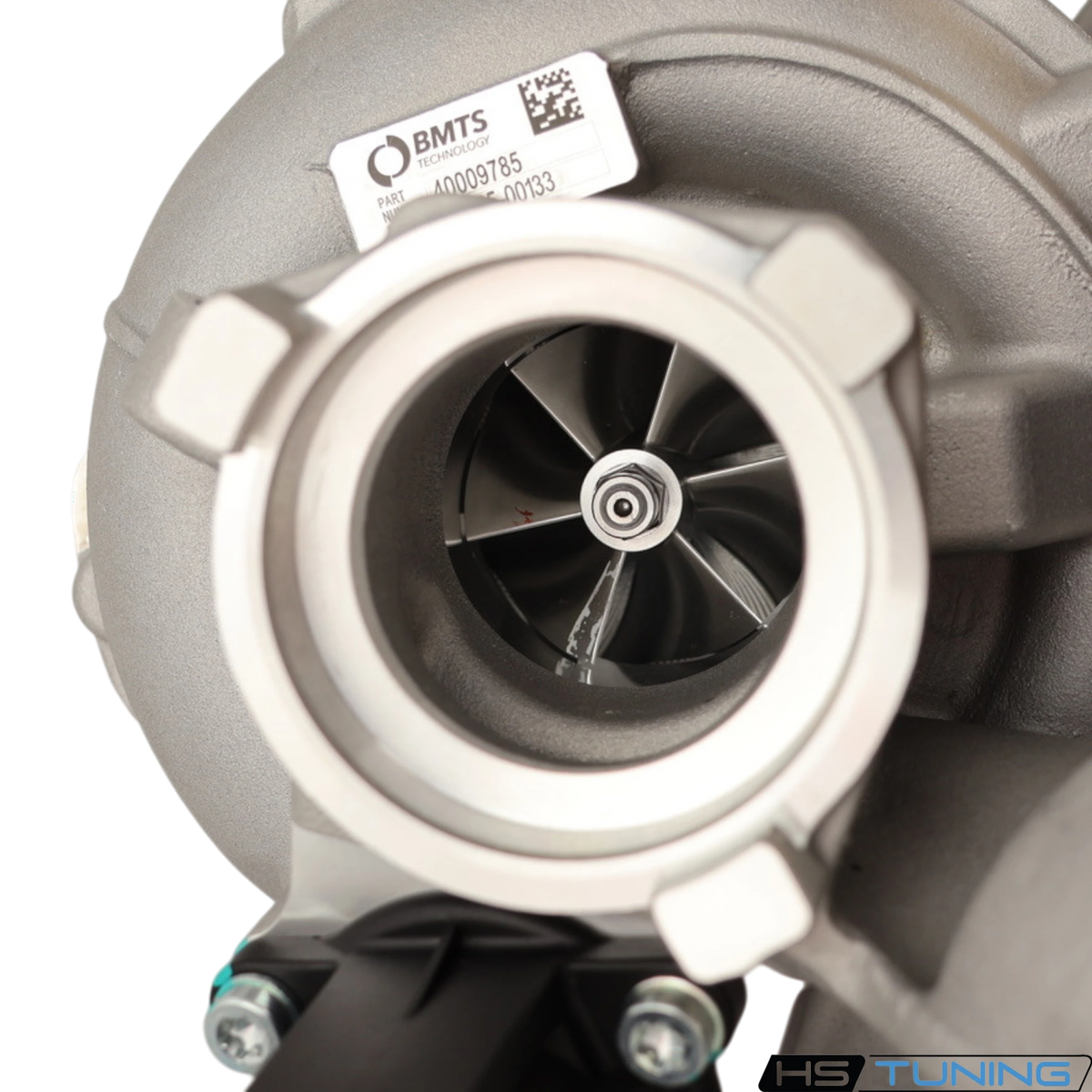

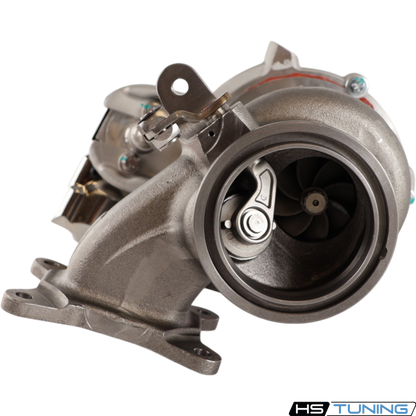

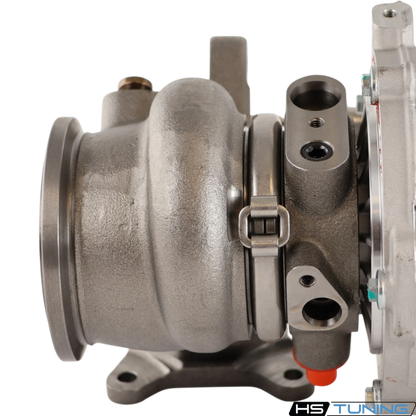

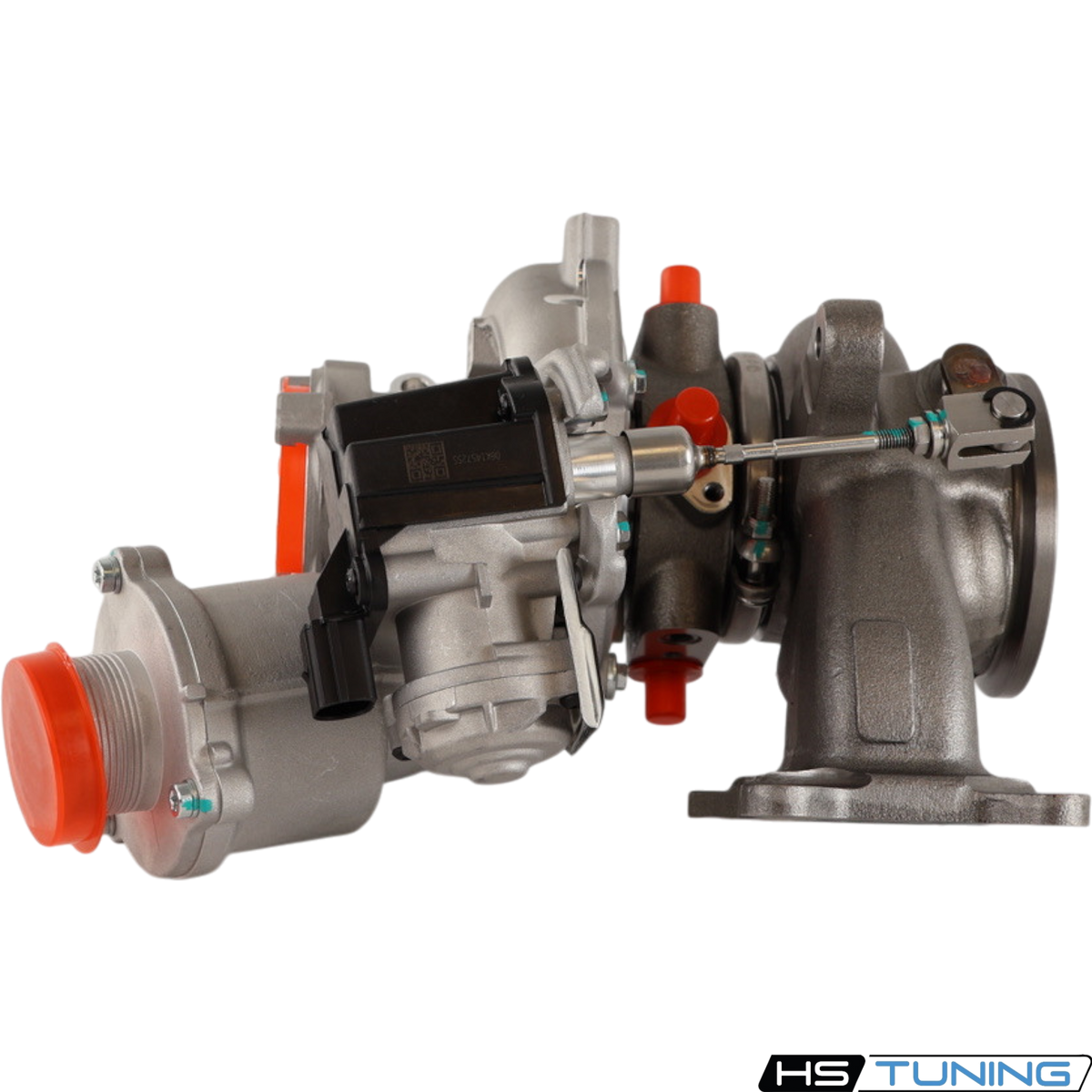

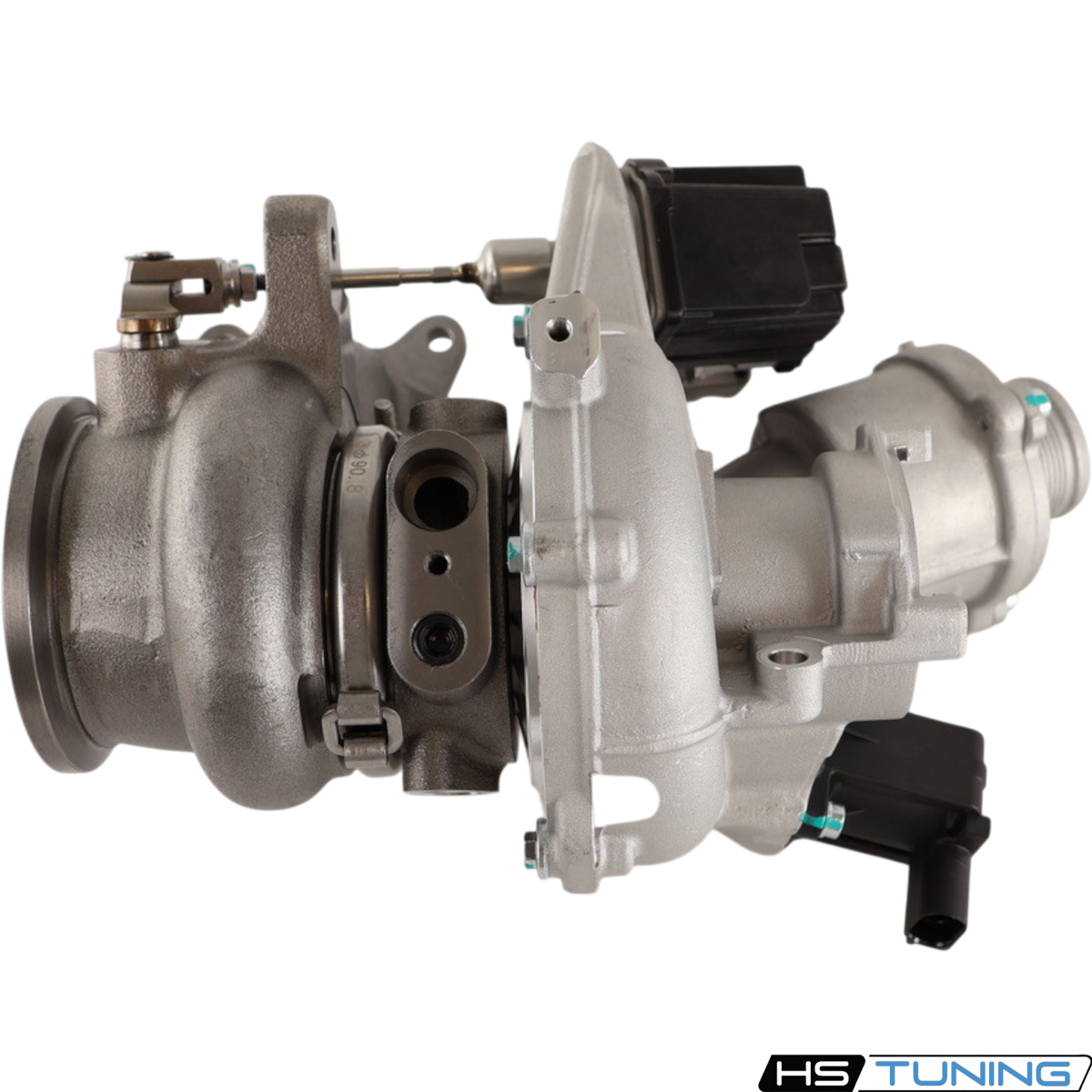

The BMTS Technology 40009785 is a new IS38-family turbocharger for select Volkswagen Audi Group 2.0T EA888 Gen 3 applications. It is intended as a replacement for vehicles originally equipped with a matching IS38 / 9VA04 turbocharger. Match the part number on your original turbo before ordering.
Specifications
- Brand: BMTS Technology
- Part number: 40009785
- Turbo family: IS38 / 9VA04
- Condition: New
- Bearing type: Journal
- Center housing cooling: Water-cooled
- Gaskets and seals: Not included
Fitment Sheet — BMTS 40009785
| Make | Model / Generation | Engine / application |
|---|---|---|
| Audi | S3 (8V) | 2.0 TFSI, selected IS38-equipped applications |
| Audi | TTS (8S) | 2.0 TFSI, selected IS38-equipped applications |
| Volkswagen | Golf R (Mk7) | 2.0 TSI, selected IS38-equipped applications |
| Volkswagen | Golf R (Mk7.5) | 2.0 TSI, selected IS38-equipped applications |
Fitment note: This is a reference guide, not a VIN-specific guarantee. Applications vary by model year, engine code, market, and production date. Confirm that your original turbocharger is an IS38 / 9VA04 and that BMTS 40009785 or a matching OE number applies to your VIN before ordering.
Installation
Professional installation is recommended. Diagnose and correct the cause of the original turbocharger failure before fitting. Inspect the oil feed and return lines, clean the intake and charge-air system, replace engine oil and the oil filter, and prime the turbocharger with clean oil before first start. Follow the vehicle and turbocharger manufacturer’s service procedure.
