OVERVIEW

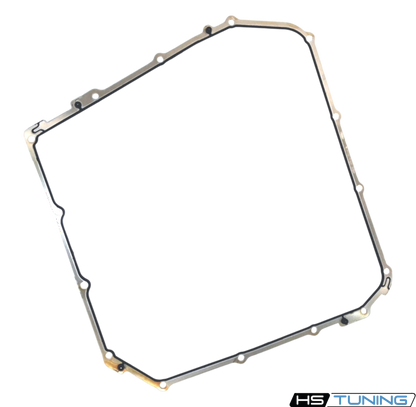

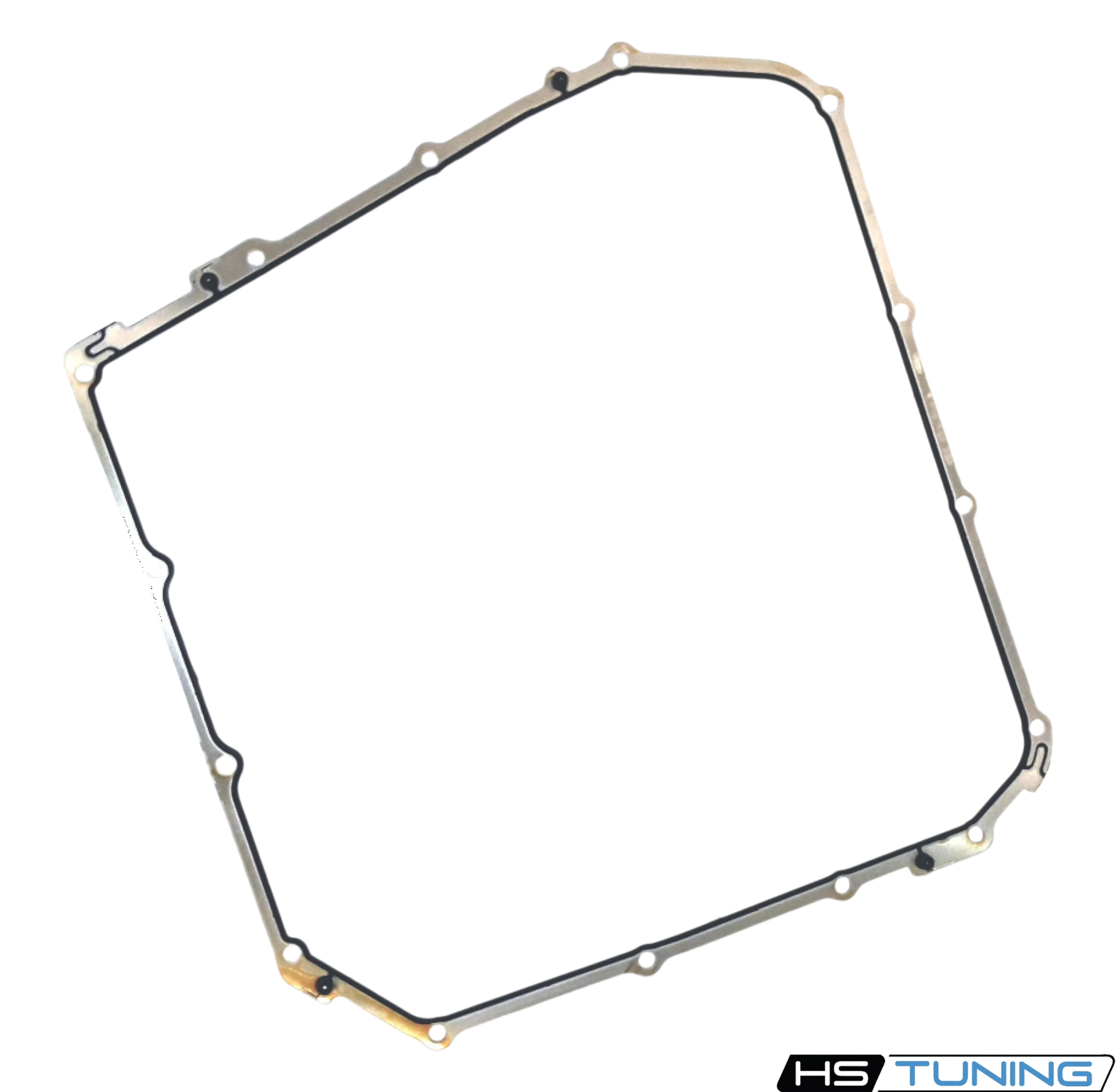

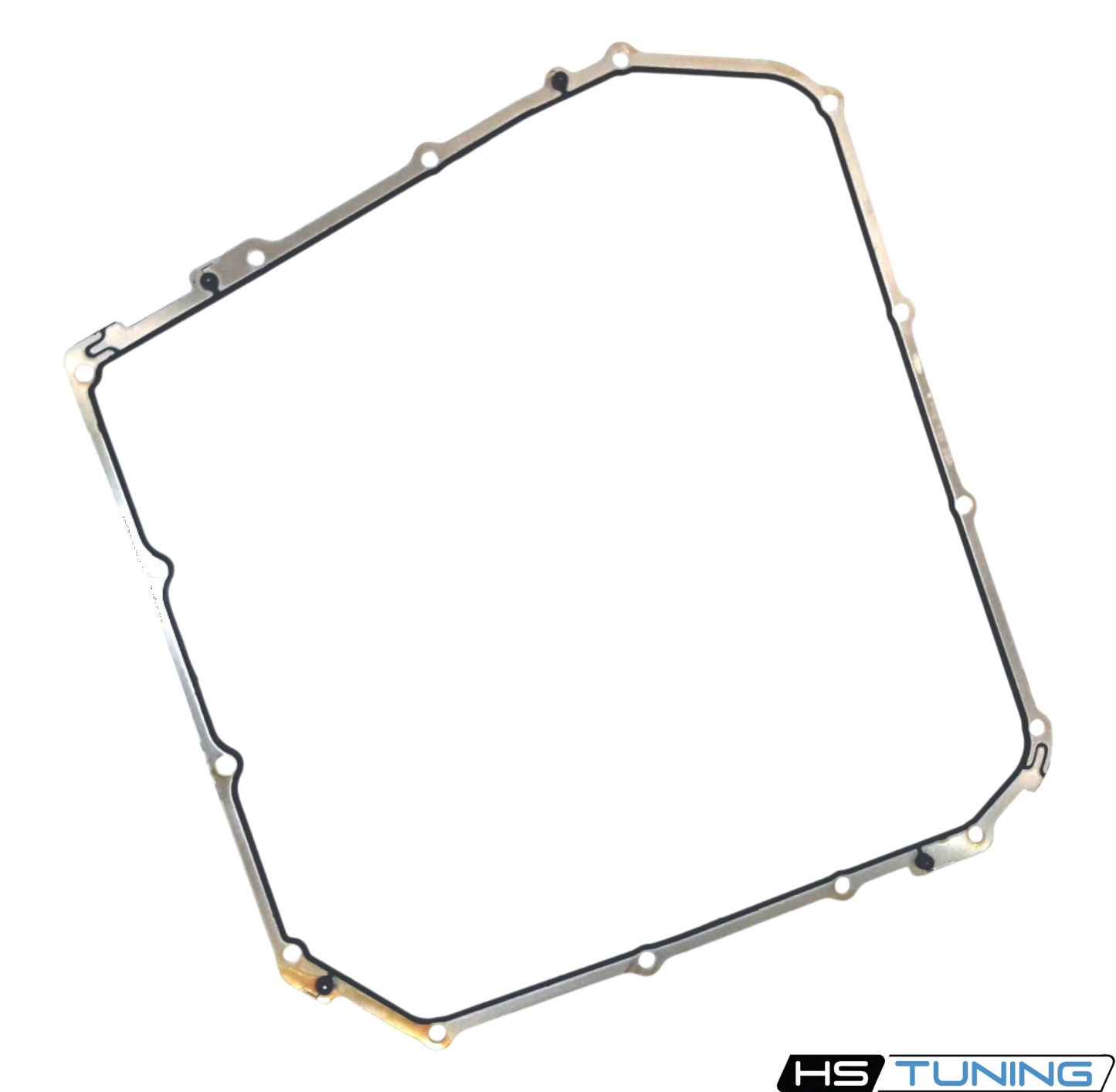

Genuine Audi 0B5321371F Transmission Oil Pan Gasket
Genuine OEM Audi transmission oil pan gasket for select 0B5 7-speed S tronic/dual-clutch transmissions. Part number 0B5321371F (0B5 321 371 F) is used to seal the transmission oil pan and should generally be replaced whenever the pan is removed.
Full Product Description
Restore a proper transmission-pan seal with this Genuine VW/Audi OEM 0B5321371F transmission oil pan gasket.
Also identified as 0B5 321 371 F, this gasket is designed for the 7-speed 0B5/S tronic transmission used in various Audi quattro applications. Audi service documentation identifies 0B5-321-371-F as the ATF pan gasket in 0B5 transmission service procedures.
The gasket is commonly replaced during transmission-fluid, filter, mechatronic, or transmission-pan service because removing the pan can compromise the existing gasket.
OEM Details
-
Brand: Audi Genuine OEM
-
OEM Part Number: 0B5321371F
-
Formatted OEM Number: 0B5 321 371 F
-
Part Type: Transmission Oil Pan Gasket
-
Transmission Family: 0B5 7-speed S tronic / dual-clutch
-
Drive Configuration: Primarily quattro applications
-
Supersedes/Replaces: 0B5321371D, 0B5321371E
-
Condition: New
-
Quantity: 1 gasket
Common Reasons This Part Is Replaced
1. Transmission Fluid Leak
A deteriorated, damaged, or improperly sealing pan gasket can allow transmission fluid to seep around the oil pan perimeter.
2. Transmission Service
The gasket is commonly replaced during scheduled transmission-fluid/filter service when the transmission pan is removed.
3. Pan Removal
The existing gasket may separate, deform, or lose its ability to seal when the pan is removed. Reusing it can result in leaks after reassembly.
4. Gasket Compression or Aging
Repeated heat cycles and years of transmission operation can cause sealing material to harden, flatten, or lose elasticity.
5. Mechatronic Service
0B5 transmission mechatronic repairs can require removal of associated components and replacement of the pan gasket. Audi service documentation lists 0B5-321-371-F as the ATF pan gasket for applicable procedures.
6. Previous Leak Repair
If a vehicle has previously experienced transmission-fluid leakage around the pan, replacing the gasket during corrective service is appropriate rather than reinstalling a previously compressed gasket.
Common Symptoms of a Bad or Compromised Pan Gasket
-
Transmission fluid visible around the transmission pan
-
Fluid spots underneath the vehicle
-
Wet or oily transmission-pan perimeter
-
Transmission-fluid level gradually decreasing
-
Transmission service revealing a damaged or separated gasket
-
Continued leakage after transmission-pan reinstallation
Important: A fluid leak does not automatically mean the gasket is the source. Fluid can migrate from other transmission seals, fittings, lines, or components. Proper leak diagnosis should be performed before replacing parts.
Fitment Sheet
| Make | Model | Generation / Chassis | Engine / Configuration | Transmission / Notes |
|---|---|---|---|---|
| Audi | A4 / S4 | B8 / 8K | Select engines | 7-speed 0B5, quattro applications |
| Audi | A4 Allroad | B8 / 8K | Select engines | 7-speed 0B5, quattro |
| Audi | RS4 | B8 | Select engines | 7-speed 0B5 |
| Audi | A5 / S5 | B8 / 8T | Select engines | 7-speed 0B5, quattro |
| Audi | A5 Cabriolet / S5 Cabriolet | B8 / 8F | Select engines | 7-speed 0B5 |
| Audi | RS5 | B8 | 4.2L / select configurations | 7-speed 0B5 |
| Audi | A6 / S6 | C7 / 4G | Select engines | 7-speed 0B5 |
| Audi | A6 Allroad | C7 / 4G | Select engines | 7-speed 0B5 |
| Audi | A7 / S7 | C7 / 4G | Select engines | 7-speed 0B5 |
| Audi | Q5 | 8R | Select engines | 7-speed 0B5, quattro |
The vehicle's VIN and transmission code should be used for final verification rather than relying on the model name alone.
Part Number Cross-Reference
-
0B5321371F
-
0B5 321 371 F
-
0B5321371E — previous revision
-
0B5321371D — previous revision
Buyer Compatibility Note
Please verify the exact OEM number and transmission application before ordering. This listing is intended for vehicles equipped with the applicable 0B5 7-speed transmission. Model-year and engine variations exist, so VIN verification is recommended.
Package Includes:
1 × Genuine Audi 0B5321371F / 0B5 321 371 F Transmission Oil Pan Gasket
