OVERVIEW
Genuine M6 × 18 attachment hardware

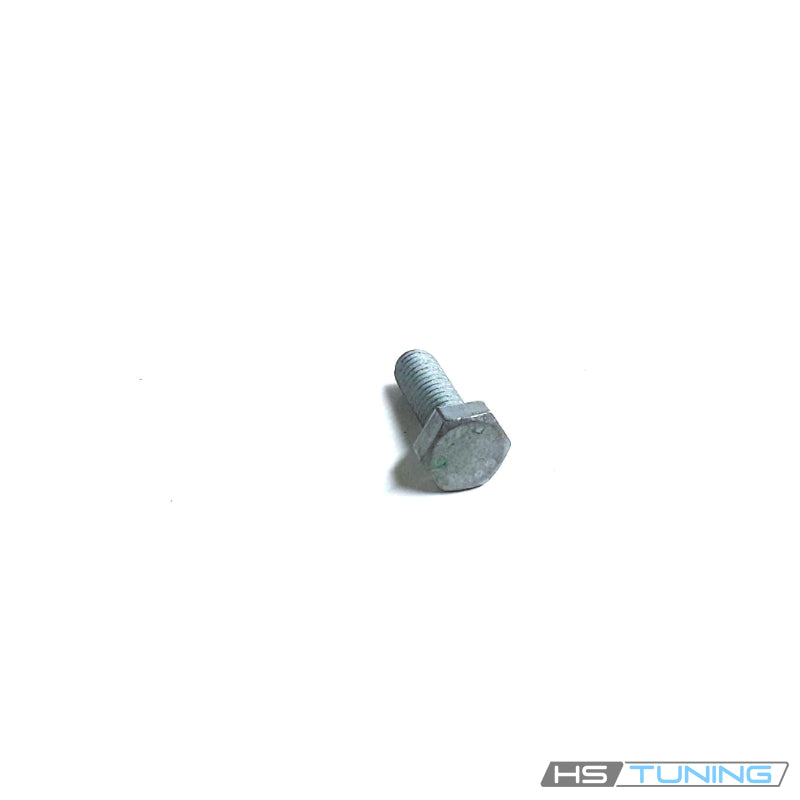

The N-010-216-12 Genuine VW/Audi hex-head bolt is used at the original mounting connections specified below. Verified applications include early A4 headlight-washer hardware, the listed Audi 100 ignition mounting arrangement and assigned Audi V8 rear-lid hardware.
These are distinct applications sharing a factory bolt number. Compare the complete number, intended connection and original fastening stack. The A4 washer application requires the original headlight-washer equipment and the stated chassis range.
Technical details
- Complete factory number: N-010-216-12.
- Nominal factory specification: M6 × 18.
- Design: external hex-head threaded bolt.
- Quantity supplied: one individual bolt.
The nominal specification describes the fastener itself rather than packaged shipping dimensions. Match the complete factory number, original attachment point and head seating arrangement. Similar-looking hardware elsewhere in the same assembly can differ in length, thread size or bearing surface.
Common reasons to replace
- A bolt is missing after component removal or previous service.
- The drive head is damaged or rounded.
- The threads have been crossed, stripped or otherwise damaged.
- The bolt is bent or its bearing surface no longer seats correctly.
- A previous repair used incorrect substitute hardware.
Inspect the washer mounting point, ignition hardware carrier or lid receiver before reassembly. A new bolt cannot repair a broken mounting tab, damaged bracket or stripped thread. Diagnose washer operation, ignition faults or lid alignment separately from the condition of the fastener.
Vehicle fitment
The table distinguishes the verified connection on each model. Retain the early A4 VIN limit and check the original equipment at the repair position.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 1998 | 1.8L turbocharged gasoline inline-four | B5 sedan; front-wheel drive or quattro; original headlight washer system; Body-mounted washer hardware; match original equipment | Early 1998 factory branch, VIN UP TO 8D-W-007799; original headlight washer lift-cylinder/nozzle-carrier mounting. Headlight washers required. |
| Audi A4 | 1998 | 2.8L 30-valve gasoline V6 | B5 sedan; front-wheel drive or quattro; original headlight washer system; Body-mounted washer hardware; match original equipment | Early 1998 factory branch, VIN UP TO 8D-W-007799; original headlight washer lift-cylinder/nozzle-carrier mounting. Headlight washers required. |
| Audi 100 | 1993 | 2.8L gasoline V6 | C4 sedan; front-wheel drive; original ignition-lead/coil mounting hardware; Engine-mounted ignition hardware; match original arrangement | Assigned M6 × 18 bolt in original ignition-coil/lead mounting arrangement. Not an ignition coil or sensor. |
| Audi V8 | 1994 | 4.2L gasoline V8 | D1 sedan; quattro; assigned rear-lid hardware; 4-speed automatic; body-mounted lid hardware | Assigned original rear-lid connection, M6 × 18; match original receiver and fastening stack. |
Installation guidance
Follow the factory procedure for the specific washer, ignition or rear-lid connection being serviced. Support the component where required and keep the original washers and associated hardware identified during disassembly. Protect nearby electrical connections and trim.
Align the mating components before engaging the bolt, start the threads carefully and use the correct tool for the actual drive. Follow the factory tightening instruction and sequence for the exact connection. Do not transfer torque values between different applications that happen to use the same bolt number.
After assembly, check correct seating and retention, restore disturbed components and perform the functional checks required for the serviced system. Do not compensate for a damaged receiver with a longer bolt or additional tightening force.
Ordering information
Supplied as one genuine bolt. Washer nozzles, ignition components, lid, brackets, washers and a complete hardware kit are not included. Confirm the quantity needed for the repair.
