OVERVIEW
Genuine VW/Audi brake caliper bolt, part number N-010-241-24. This original self-locking hex-head fastener is assigned to rear brake caliper fastening on the verified Audi applications below. It provides the specified threaded connection and head bearing surface for the matching caliper hardware.
Technical details
- Original part number: N-010-241-24 / N01024124.
- Genuine-part catalog nominal size: M8 × 22.
- Hexagonal head with collar; cataloged as self-locking.

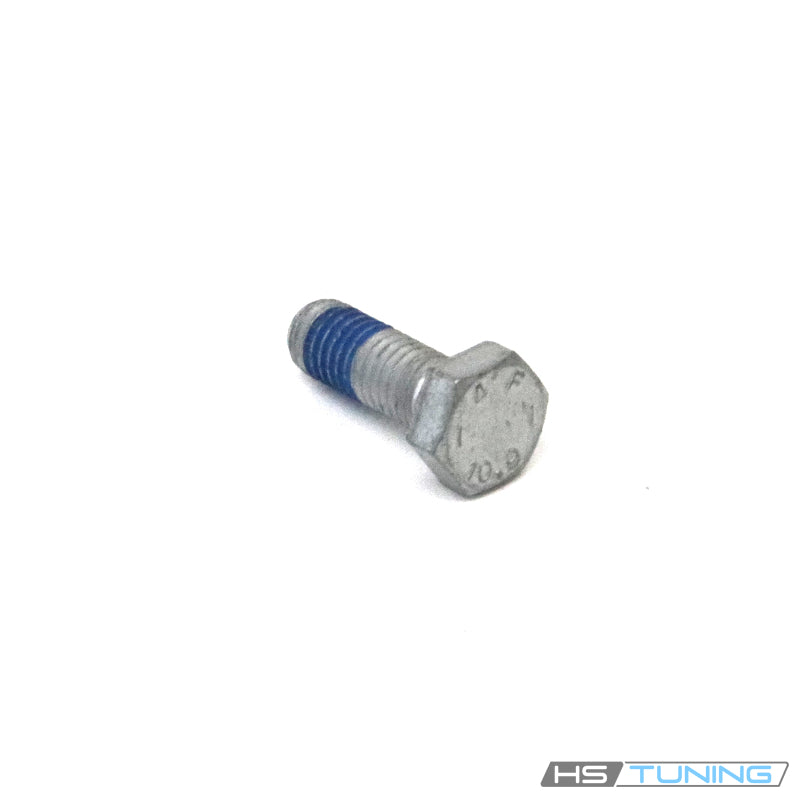

- The original photo shows the threaded shank and applied locking patch.
- Also cataloged as a disc brake caliper pin bolt / caliper assembly bolt.
- Supplied as one bolt. The caliper, guide pin and carrier are separate components.
Common reasons to replace
Brake service may require new fastening hardware according to the applicable repair instructions. Damaged threads, a rounded hex head, corrosion at the bearing surface or an impaired locking feature can also warrant replacement.
Caliper movement, noise or uneven pad wear requires inspection of the complete brake assembly. Check guide movement, bushings, pads and mounting points rather than assuming a new bolt alone will resolve the symptom. Stripped receiving threads or a damaged caliper require the appropriate repair before installation.
Installation and service notes
Confirm the fastener location using the VIN, brake configuration and parts diagram. The verified Q3 rear-brake diagram assigns this part to the caliper fastening connection; the separate caliper-carrier mounting bolt has a different part number. Similar-looking bolts with a matching nominal diameter can differ in length, head geometry and locking requirements.
Use the vehicle-specific brake procedure, the specified replacement-hardware requirements and the correct tightening value for the connection. Keep lubricant and brake fluid away from friction surfaces. Support the caliper during service, check the guide components and verify secure assembly and normal brake operation before returning the vehicle to use.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi Q3 | 2015 | 2.0L turbo gasoline | Premium Plus / Prestige; rear brake caliper fastening; Factory automatic transmission | Front-wheel drive; confirm rear caliper fastener assignment N01024124. Separate from caliper-carrier mounting bolt N90948802. |
| Audi Q3 quattro | 2015 | 2.0L turbo gasoline | Premium Plus / Prestige; rear brake caliper fastening; Factory automatic transmission | quattro all-wheel drive; confirm rear caliper fastener assignment N01024124. Separate from caliper-carrier mounting bolt N90948802. |
| Audi SQ5 | 2014–2017 | 3.0L supercharged V6 gasoline; CTUD | Premium Plus / Prestige; 8R; quattro; rear caliper fastening; Eight-speed automatic | Rear caliper fastener only where N01024124 is assigned. Confirm installed brake equipment and VIN; carrier bolts are separate. |
| Audi Q3 | 2021 | 2.0L turbo gasoline; DHHA | Premium; rear caliper fastening; Automatic | DHHA engine configuration listed by the catalog; confirm rear caliper assignment by VIN. No blanket coverage of other engines or brake packages. |
Confirm the exact caliper and fastening position before ordering. Do not substitute this bolt for the separate carrier mounting hardware.
