OVERVIEW
Restore the specified factory fastening point

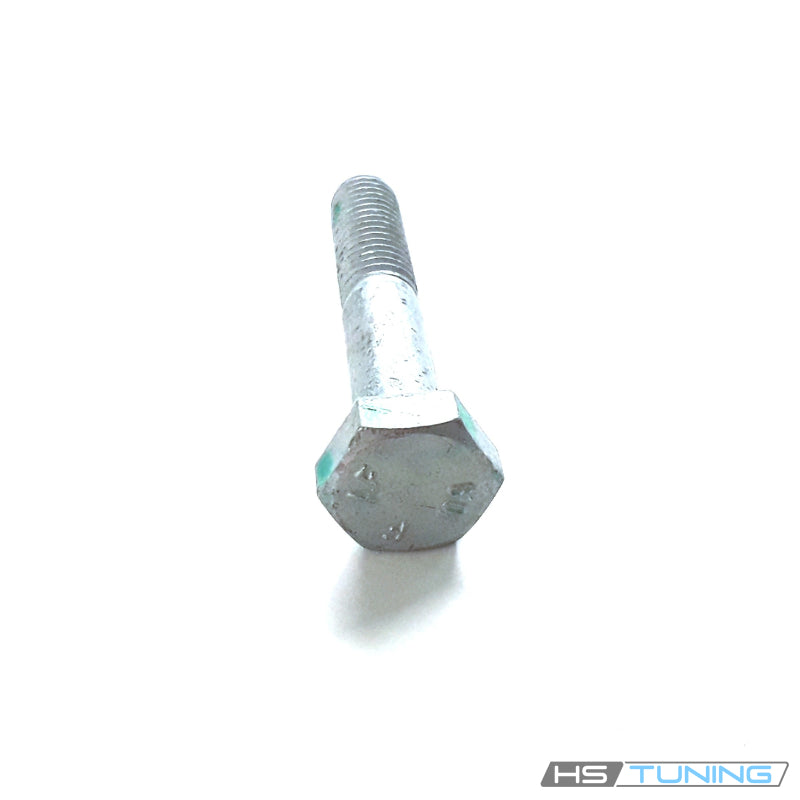

N-010-455-3 is the Genuine VW/Audi M10x55 hex-head bolt used at the specific factory joints listed below. Its applications include selected steering, shift-linkage and engine-securing positions, each of which requires the original joint-specific hardware arrangement.
Fasteners with a similar diameter can have different lengths, head forms and clamping requirements. Match the original factory number and assigned joint rather than choosing a bolt by appearance alone.
Technical details
- Complete factory number: N-010-455-3.
- Factory specification: M10 × 55 external-hex bolt.
- Design: external hexagon head with partially threaded shank.
- Quantity supplied: one individual bolt.
The nominal thread and length describe the fastener itself. This listing supplies one bolt rather than the full quantity required for an assembly. Matching nuts, washers, brackets and related parts are separate.
Common reasons to replace
- The original bolt is missing after component service.
- Threads are damaged or will not engage correctly.
- The drive head is rounded or otherwise damaged.
- Corrosion or deformation makes the original fastener unsuitable for reuse.
Inspect the mating threads, supported component and associated hardware. A new bolt cannot correct a cracked mounting feature, damaged bracket or stripped receiving thread.
Vehicle fitment
Use only at the assigned factory fastening position on the listed applications. These vehicle entries do not establish compatibility with every fastening point on the vehicle.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Type 2 | 1968 | 1.6L gasoline | Bay Window bus; left-hand drive | Steering gear hardware; original M10x55 position; chassis through 212 2300 000. |
| Volkswagen Type 2 | 1969, 1971 | 1.6L gasoline | Bay Window bus; manual transmission | Assigned shift-linkage M10x55 bolt only; confirm original assembly. |
| Volkswagen Cabrio | 2000 | 2.0L gasoline | Convertible; front-wheel drive | Assigned engine-securing M10x55 hardware only; match original mounting arrangement. |
| Volkswagen EuroVan | 1995 | 2.5L gasoline five-cylinder; ACU | Camper; front-wheel drive | Original engine-securing M10x55 bolt position only. |
Installation guidance
Follow the vehicle-specific repair procedure. Support the relevant assembly before removing hardware, use the correct matching components and apply the specified tightening sequence and torque. Replace any additional fasteners designated for single use.
Check seating and engagement before final tightening. Verify that the serviced assembly is properly secured and that all required functional checks are completed.
Ordering information
One individual genuine bolt. Related nuts, washers, brackets and other assembly components are separate. Confirm VIN and original hardware number.
