Genuine VW/Audi

M16 Tie-Rod Adjustment Nut

M16 Tie-Rod Adjustment Nut

SKU:N-011-164-17

Regular price $5.95 USD
Regular price $5.95 USD Sale price $5.95 USD
Sale Sold out
Shipping calculated at checkout.
In stock
Quantity
View full details

OVERVIEW

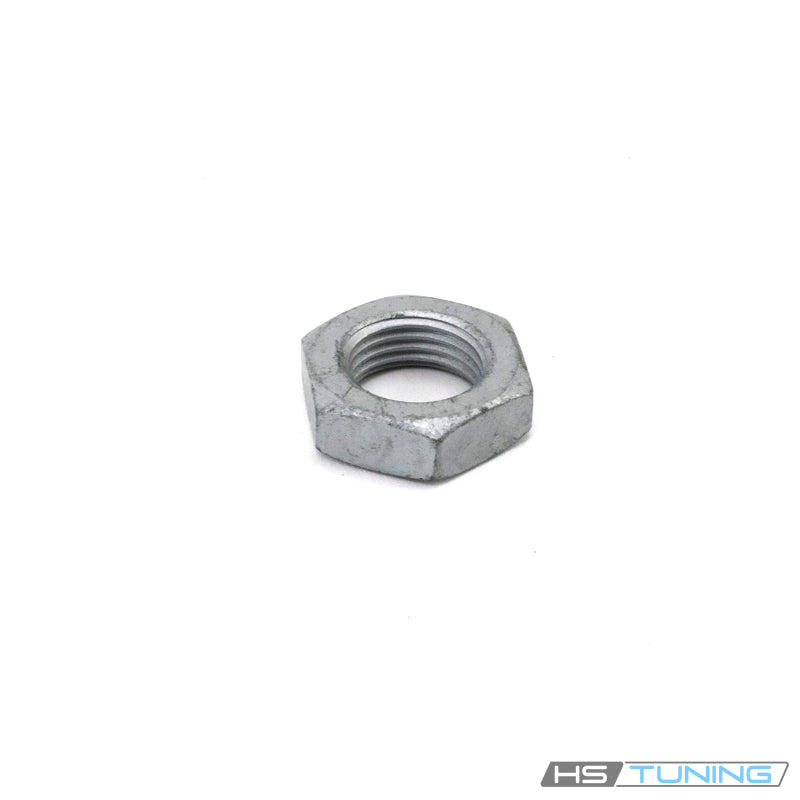

Genuine VW/Audi M16 x 1.5 tie-rod adjustment nut, part number N-011-164-17. At the listed steering locations, this hex nut locks the threaded tie-rod adjustment after toe is set. Retaining that adjustment helps keep the steering geometry at its specified setting.

Technical details

  • Original part number: N-011-164-17 / N01116417.
  • M16 x 1.5 thread; catalog nut thickness 8 mm.
  • Flat hex nut with internal threads, as shown in the original photo.
  • Supplied individually. Inner and outer tie rods, bellows and clamps are separate.
  • Used as the adjustment lock nut at the listed tie-rod assemblies; not the nut securing the tie-rod ball-joint stud to the steering knuckle.
  • Match the original hardware assignment and thread before ordering.

Common reasons to replace

Replace damaged or seized threads, corroded hardware, rounded hex faces or a missing nut. A nut that will not release or tighten correctly can prevent accurate toe adjustment and secure locking during tie-rod service.

Inspect the adjoining threaded rod and tie-rod end as well. Uneven tire wear, steering-wheel misalignment or looseness can have several causes; replacing this nut alone will not correct a worn ball joint, damaged rack or incorrect alignment.

Installation and service notes

Use the factory tie-rod procedure and support the vehicle correctly. Check thread condition and required engagement, start the nut by hand, and follow the specified tightening procedure while preventing unintended rotation of the tie rod.

After tie-rod replacement or adjustment, have toe and steering-wheel position checked with alignment equipment. Ensure the bellows is not twisted and the clamps are correctly seated. Follow factory renewal instructions for adjoining fasteners.

Fitment

Vehicle Model years Engine Configuration Application restrictions
Audi A4 quattro 2013–2016 2.0L turbo gasoline / flex-fuel B8/B8.5; left or right tie-rod adjustment nut; Steering hardware; match factory tie-rod assembly Factory 2013–2016 steering assembly; original nut assignment N01116417.
Audi A4 2015 2.0L turbo gasoline FWD; tie-rod adjustment nut; Steering hardware; match factory tie-rod assembly Verify installed tie rod and original nut assignment.
Volkswagen Jetta 2015 2.0L TDI diesel Sedan; right tie-rod adjustment nut; Steering hardware; match factory tie-rod assembly TDI SE catalog profile; original nut assignment N01116417.
Volkswagen Passat 2015 2.0L TDI diesel Sedan; right tie-rod adjustment nut; Steering hardware; match factory tie-rod assembly TDI SEL Premium catalog profile; original nut assignment N01116417.
Audi Q3 2015 2.0L turbo gasoline 8U; Premium Plus; FWD; right tie-rod adjust nut; Factory automatic Tie-rod adjustment nut; confirm original N01116417 assignment and correct side. Not the tie-rod ball-joint retaining nut.
Audi Q3 quattro 2015 2.0L turbo gasoline 8U; Prestige; quattro; left/right adjustment location; Factory automatic Tie-rod adjustment nut; confirm original N01116417 assignment and correct side. Not the tie-rod ball-joint retaining nut.

Confirm the tie rod and nut position by VIN. Steering service requires the assembly-specific tightening procedure and alignment verification.
