Genuine VW/Audi

Flat Washer

Flat Washer

SKU:N-011-524-26

Regular price $1.64 USD
Regular price $1.64 USD Sale price $1.64 USD
Sale Sold out
Shipping calculated at checkout.
In stock
Quantity
View full details

OVERVIEW

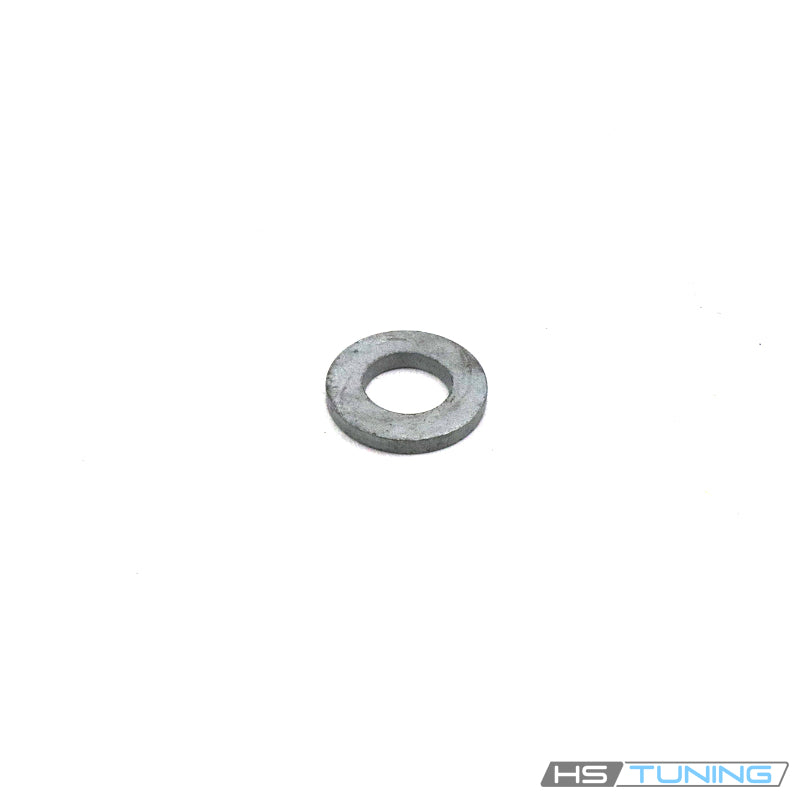

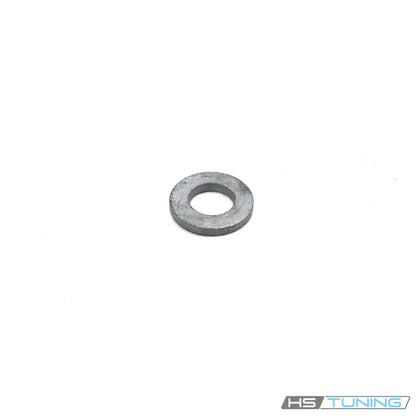

Genuine VW/Audi flat washer, part number N-011-524-26. This original washer provides the specified bearing surface within its assigned fastening joint. The listed Audi applications use it in engine-cover, door-mirror or water-pump assembly hardware; the correct position depends on the vehicle and assembly.

Technical details

  • Original part number: N-011-524-26 / N01152426.
  • Flat circular washer with a central opening, supplied individually.
  • Factory hardware assignment varies by assembly. Match the original washer and the complete fastening arrangement.
  • Bolts, nuts, covers, mirrors and pump components are sold separately.
  • This hardware washer is not a replacement for a separately specified coolant seal, gasket or O-ring.

Common reasons to replace

Replace a missing washer, a distorted bearing surface, damage around the center opening or corrosion that prevents the washer from seating correctly. Hardware may also need renewal when restoring an assembly that was previously fitted with an incorrect washer or missing parts.

Inspect the mating component and companion fastener as well. A fresh washer cannot repair a cracked cover, damaged mirror support, stripped thread or coolant leak from a separate seal. Identify the actual fault before replacing hardware.

Installation and service notes

Confirm the assigned location and factory hardware stack before disassembly. Keep track of any spacers, sleeves and companion washers, and inspect the bearing surfaces before refitting. Do not add extra washers to compensate for an incorrect bolt length or a damaged mounting point.

Seat the washer flat and start the fastener by hand. Follow the vehicle-specific tightening specification and service procedure for the assembly being repaired. Check alignment, secure mounting and the relevant component's operation afterward.

Fitment

Vehicle Model years Engine Configuration Application restrictions
Audi A4 1998 1.8L turbo gasoline B5; engine appearance-cover washer; Match original assembly and mounting position Match original cover fastening arrangement.
Audi TT 2006 1.8L turbo gasoline 8N; left door-mirror mounting washer; Match original assembly and mounting position Match original mirror hardware assignment; washer at catalog position 12.
Audi TT 2008 2.0L turbo gasoline FSI 8J; water-pump assembly hardware; Match original assembly and mounting position Timing-belt engine; washer assigned at catalog position 7. Match exact mounting position.
Audi TTS quattro 2009 2.0L turbo gasoline FSI 8J; water-pump assembly hardware; Match original assembly and mounting position TTS timing-belt engine; washer assigned at catalog position 7. Match exact mounting position.
Audi TTS quattro 2010 2.0L turbo gasoline FSI 8J; thermostat-unit mounting washer; Match original assembly and mounting position Timing-belt TTS engine only; position 7 in water-pump assembly diagram. Hardware washer, not a coolant sealing washer.
Audi TT 2005 1.8L turbo gasoline 8N; right door-mirror cover washer; Match original assembly and mounting position Only the N01152426 position 12 in the original mirror hardware arrangement.
Audi TT quattro 2005–2006 3.2L VR6 gasoline 8N; left door-mirror cover washer; Match original assembly and mounting position Position 12 in mirror assembly; match original bolt, shim and washer stack.

Confirm the original washer assignment, assembly and mounting position before ordering.
