OVERVIEW

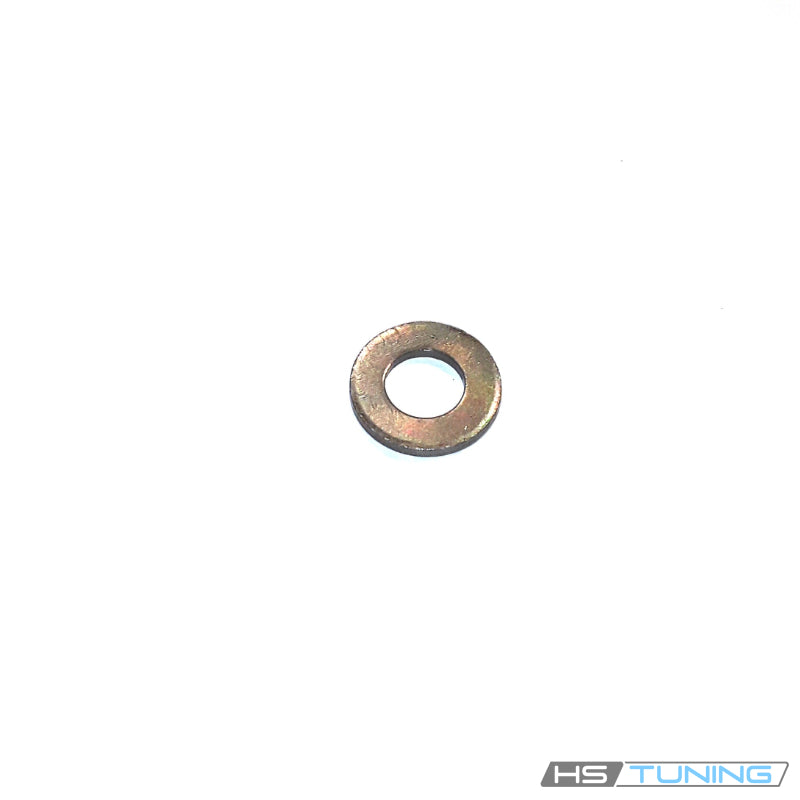

Genuine VW/Audi N-011-527-11 is an individual plain mounting washer with factory nominal size designation 10. The verified applications below identify separate original engine-support and bumper-support fastening points.
Technical details and contents
- Factory part number: N-011-527-11 / N01152711.
- Component type: plain flat mounting washer.
- Factory nominal size designation: 10.
- Quantity supplied: one individual washer.
- Bolts, nuts, spring washers, brackets and supports are separate.
The nominal size identifies the factory hardware designation. It is not a packaged shipping dimension. Exact dimensions from a later washer suffix are not specifications for this archive item. Match the original mounting point and mating hardware.
Distinct mounting applications
In the specified Audi 80 application, this washer is assigned to the four-cylinder engine-support arrangement. In the Rabbit Pickup and Audi Fox entries, it belongs to the original bumper-support mounting hardware. These are separate joints with different repair procedures.
A plain washer provides the intended bearing interface in its assigned fastening stack. It must be installed with the correct bolt, nut and any separate spring washer specified for that point. It is not a substitute for an omitted spacer or a different washer elsewhere in the assembly.
Common reasons to replace
- The washer is missing following support or bracket service.
- It has been lost while removing the original mounting hardware.
- The washer is bent or its bearing surface is damaged.
- Corrosion prevents correct seating.
- An incorrect substitute washer has been installed.
Inspect the mating fasteners, support and receiving surfaces before reassembly. A replacement washer cannot repair a bent bracket, stripped thread, damaged support or failed engine mount.
Vehicle fitment
Match the exact mounting point and the vehicle configuration in the table. The Audi 80 entry is restricted to the four-cylinder engine arrangement. The body-mounted applications identify their own support connections.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi 80 | 1988–1989 | 2.0L gasoline inline-four | B3 sedan; original four-cylinder engine support attachment; Front-wheel drive; match original support and fastening point | Original size-10 washer at engine-support diagram point 28. Four-cylinder assignment; excludes five-cylinder Audi 90 and quattro profiles from this row. |
| Volkswagen Rabbit Pickup | 1984 | 1.7L gasoline inline-four or 1.6L diesel inline-four | Mk1 pickup; original bumper-support mounting arrangement; Manual; front-wheel drive | Assigned size-10 plain washer with original M10 bumper-support hardware. Match exact support and diagram point. One washer supplied; bumper assembly and kit are separate. |
| Audi Fox | 1979 | 1.6L gasoline inline-four | Sedan or wagon; original bumper mounting connection; Manual or automatic as equipped; front-wheel drive | Assigned size-10 washer in original bumper mounting arrangement. Match exact fastening point and original bracket; not every washer on the assembly uses this number. |
Installation guidance
Follow the factory procedure for the exact attachment. Support any component that must be retained before its mounting hardware is removed. Keep the original order of washers, fasteners and supports identified during disassembly.
Install the washer at the assigned point with the specified mating hardware. Seat the bracket or support correctly before tightening and follow the joint-specific torque and renewal instructions. Do not transfer a tightening value between the engine-support and bumper-support applications.
Inspect the completed mounting arrangement and verify that all required fasteners are present. Do not compensate for damaged mating parts by adding extra washers or overtightening the connection.
Ordering information
This listing supplies one genuine washer. It does not include an engine mount, bumper, body panel, support, bracket, bolt, nut or complete hardware kit. Confirm the required washer quantity and all other components for the repair.
