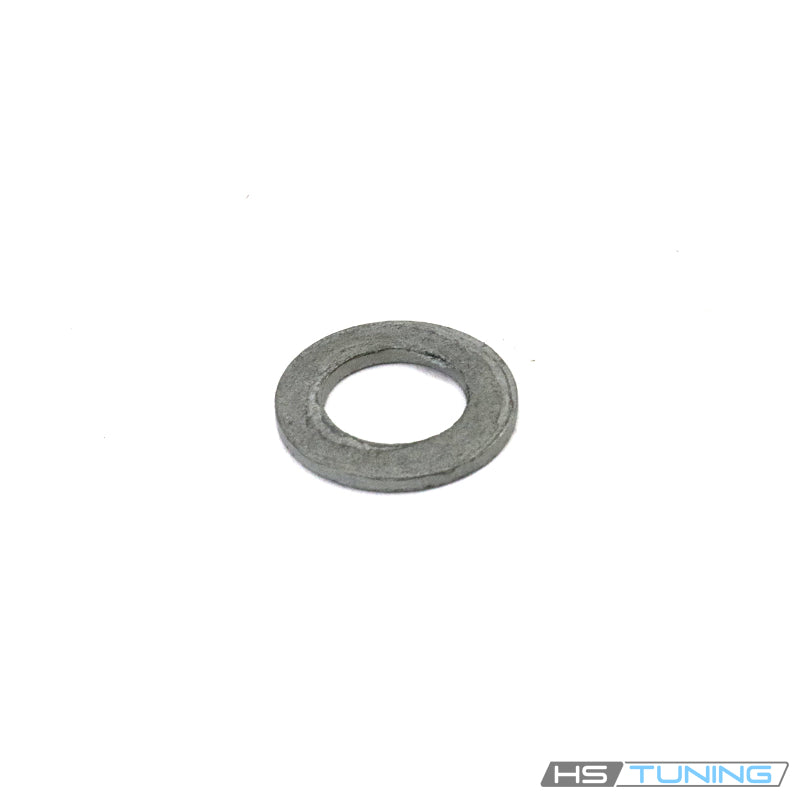

• N-011-560-9 Genuine VW/Audi flat washer, 10.5 mm bore flat washer, original product photo
  • N-011-560-9 Genuine VW/Audi flat washer, 18 mm outside diameter fastening washer, repeated original gallery photo 2
  • N-011-560-9 Genuine VW/Audi flat washer, 1.6 mm thick original fastening washer, repeated original gallery photo 3
  • N-011-560-9 Genuine VW/Audi flat washer, 10.5 mm bore flat washer, repeated original gallery photo 4
  • N-011-560-9 Genuine VW/Audi flat washer, 18 mm outside diameter fastening washer, repeated original gallery photo 5
  • N-011-560-9 Genuine VW/Audi flat washer, 1.6 mm thick original fastening washer, repeated original gallery photo 6
  • N-011-560-9 Genuine VW/Audi flat washer, 10.5 mm bore flat washer, repeated original gallery photo 7
1 7

Genuine VW/Audi

N-011-560-9 Genuine VW/Audi Flat Washer

N-011-560-9 Genuine VW/Audi Flat Washer

$3.72 USD
$3.72 USD $3.72 USD
Sale Sold out
Shipping calculated at checkout.
In stock

N-011-560-9

View full details

OVERVIEW

Genuine Vehicle Fastening Washer

The N-011-560-9 Genuine VW/Audi flat washer restores the specified bearing surface in the original fastener assembly. It sits between the fastener and the designated mating component, helping distribute clamping load across the correct contact area. This listing includes one individual washer; the bolt, nut, bracket and mount are separate.

Technical Details

  • Original part number: N-011-560-9.
  • Inside diameter: 10.5 mm.
  • Outside diameter: 18 mm.
  • Thickness: 1.6 mm.
  • Design: flat fastening washer.
  • Quantity supplied: one washer.

The bore, outside diameter and thickness establish how the washer fits around the original fastener and against its bearing surface. A washer with the wrong dimensions can change clearance or prevent the hardware from seating as designed. This part serves various cataloged fastening positions; on the C5 allroad applications below, the catalog specifically identifies transmission mount bracket attachment. The added Vanagon profiles use the washer at the waterboxer cylinder-head tin; the 1993 Eurovan profile uses it at the timing-belt guard. These are separate fastening applications, each controlled by the original parts diagram.

Common Reasons to Replace

  • The original washer is missing after mount, bracket or related component service.
  • Corrosion or surface damage has compromised the seating surface.
  • The washer is distorted, gouged or worn from movement in a loose joint.
  • A previous repair used a washer of the wrong diameter or thickness.
  • The repair procedure requires renewal of the fastening hardware assembly.

A loose joint or damaged bracket needs inspection of the entire fastening arrangement. Replacing the washer alone will not correct stripped threads, an elongated mounting hole, a failed mount or a damaged bolt. Use the original diagram to identify every component needed for the repair.

Installation and Service Notes

Match the complete part number and fastening position before installation. Inspect the bolt, nut and mating surfaces, and install the washer in the same location and orientation required by the workshop procedure. Support the component appropriately when servicing mounts or brackets.

Tightening torque belongs to the specific bolt and joint, rather than to a general washer size. Follow the repair instructions for the vehicle and replace any single-use fasteners separately when specified. Do not stack extra washers to compensate for an incorrect bolt or damaged component.

Vehicle Fitment

Match the model year, engine and configuration below, then confirm the exact original connection or fastening position by VIN. A model appearing in the table does not mean the washer fits every location on that vehicle.

Vehicle Model years Engine Configuration Application restrictions
Audi 100 1989–1991 2.3L five-cylinder gasoline C3; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi 100 1992–1994 2.8L V6 gasoline C4; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi 200 1989–1990 2.2L 10-valve turbocharged five-cylinder gasoline C3; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi 200 1991 2.2L 20-valve turbocharged five-cylinder gasoline C3; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi A4 1997–2001 1.8L turbocharged gasoline B5; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi A4 1996–1997 2.8L 12-valve V6 gasoline B5; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi A4 1998–2001 2.8L 30-valve V6 gasoline B5; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi S4 2000–2002 2.7L twin-turbocharged V6 gasoline B5; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi A4 2002–2005 3.0L V6 gasoline B6; Sedan or Avant; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi A6 1995–1997 2.8L V6 gasoline C4; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi S4 1992–1994 2.2L 20-valve turbocharged five-cylinder gasoline C4; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi S6 1995–1997 2.2L 20-valve turbocharged five-cylinder gasoline C4; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi A6 2000–2004 2.7L twin-turbocharged V6 gasoline C5; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi A6 2000–2004 4.2L V8 gasoline C5; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi A6 1998–2001 2.8L V6 gasoline C5; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi A6 2002–2004 3.0L V6 gasoline C5; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi allroad 2001–2005 2.7L twin-turbocharged V6 gasoline C5; quattro; Match the original fastening position; transmission not separately restricted in catalog Transmission mount bracket fastening washer. Match the original bolt, bracket and washer arrangement.
Audi allroad 2004–2005 4.2L V8 gasoline C5; quattro; Match the original fastening position; transmission not separately restricted in catalog Transmission mount bracket fastening washer. Match the original bolt, bracket and washer arrangement.
Audi S6 2002–2003 4.2L V8 gasoline C5; quattro Avant; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi Coupe quattro 1990–1991 2.3L 20-valve five-cylinder gasoline B3; Coupe quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi A8 1997–2002 4.2L V8 gasoline D2; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi S8 2001–2003 4.2L V8 gasoline D2; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Audi RS6 2003 4.2L twin-turbocharged V8 gasoline C5; quattro Sedan; Match the original fastening position; transmission not separately restricted in catalog Only original fastening positions specified for N-011-560-9; location varies by vehicle. Confirm the original fastener and washer arrangement.
Volkswagen Vanagon 1983–1985 1.9L water-cooled flat-four gasoline; DH T3 waterboxer; original cylinder-head tin fastening arrangement; Original manual or automatic where equipped; match attachment position Flat washer at the cylinder-head tin fastening position specified for N-011-560-9. Does not establish compatibility with unrelated engine or exhaust seals; excludes air-cooled engines in this row.
Volkswagen Vanagon 1986–1991 2.1L water-cooled flat-four gasoline; MV T3 waterboxer; original cylinder-head tin fastening arrangement; Original manual or automatic where equipped; match attachment position Flat washer at the cylinder-head tin fastening position specified for N-011-560-9. Does not establish compatibility with unrelated engine or exhaust seals; excludes air-cooled engines in this row.
Volkswagen Eurovan 1993 2.5L five-cylinder gasoline; AAF T4 passenger van; original timing-belt guard; Match original guard attachment; manual or automatic Flat washer securing the toothed timing-belt guard on the 2.5L engine where the diagram specifies N-011-560-9. Excludes later VR6 and unconfirmed attachment positions.
