OVERVIEW
Factory spring washer for the specified fastening point

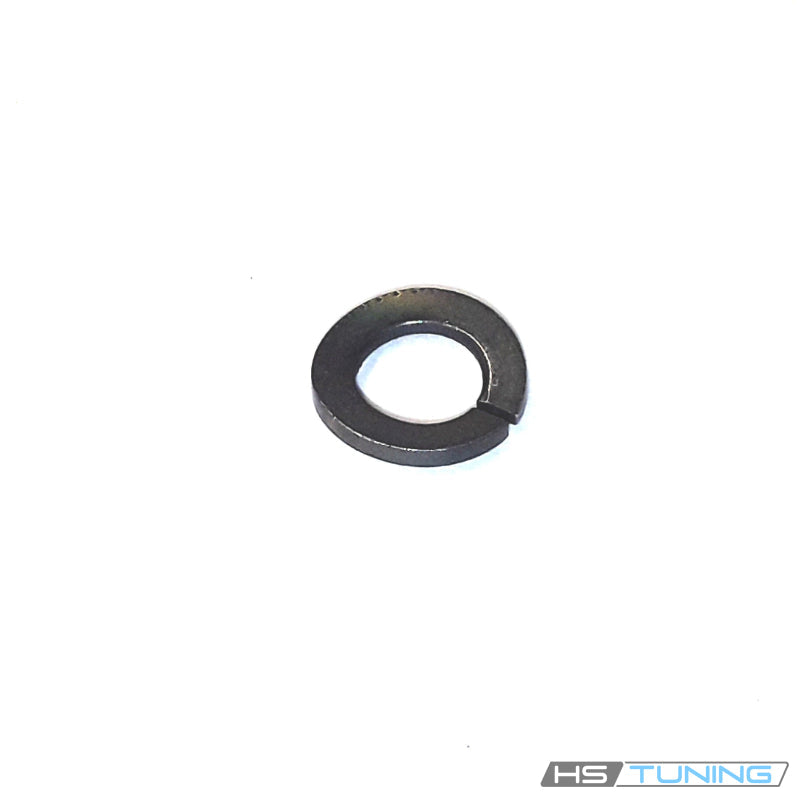

N-012-038-7 is the Genuine VW/Audi split spring lock washer with the factory nominal 8mm designation. It is cataloged at the assigned selector and shift-linkage fastening positions below.
Fasteners with a similar diameter can have different lengths, head forms and clamping requirements. Match the original factory number and assigned joint rather than choosing a bolt by appearance alone.
Technical details
- Complete factory number: N-012-038-7.
- Factory specification: nominal 8mm split spring washer.
- Design: split helical ring used in the original fastener stack.
- Quantity supplied: one individual spring washer.
The factory 8mm designation identifies its nominal hardware application; it is not a verified package dimension. This washer is different from an external circlip, flat washer or toothed lock washer. Bolts, nuts and linkage components are separate.
Common reasons to replace
- The original spring washer is missing from the assigned fastener stack.
- The washer is cracked, distorted or severely corroded.
- Service instructions require replacement during assembly repair.
- Previous work fitted an incorrect washer at the original mounting point.
Check the mating fastener and component before replacement. This washer does not repair worn shift-linkage joints or damaged threads. Use the washer only where the original repair diagram specifies it.
Vehicle fitment
Use only at the assigned factory fastening position on the listed applications. These vehicle entries do not establish compatibility with every fastening point on the vehicle.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Rabbit Pickup | 1980 | 1.6L gasoline or 1.5L diesel | Mk1 pickup; front-wheel drive; Manual transmission | Assigned selector mechanism 8mm spring washer only; match original fastening point. |
| Volkswagen Type 2 | 1977 | 2.0L gasoline | Bay Window bus; Manual transmission | Assigned shift-linkage 8mm spring washer position only; confirm original hardware arrangement. |
Installation guidance
Follow the vehicle-specific fastening procedure and maintain the prescribed washer and hardware order. Replace any associated fastener required for single use and apply the specified torque. Do not add a spring washer to an unrelated joint that was designed without one.
Confirm the serviced linkage is secure and operates correctly. Recheck any disturbed cable, rod or bracket adjustment as directed by the repair procedure.
Ordering information
One individual genuine spring washer. Bolts, nuts and linkage components are separate. Confirm VIN and original hardware number.
