OVERVIEW
Genuine clamping washer retaining clip

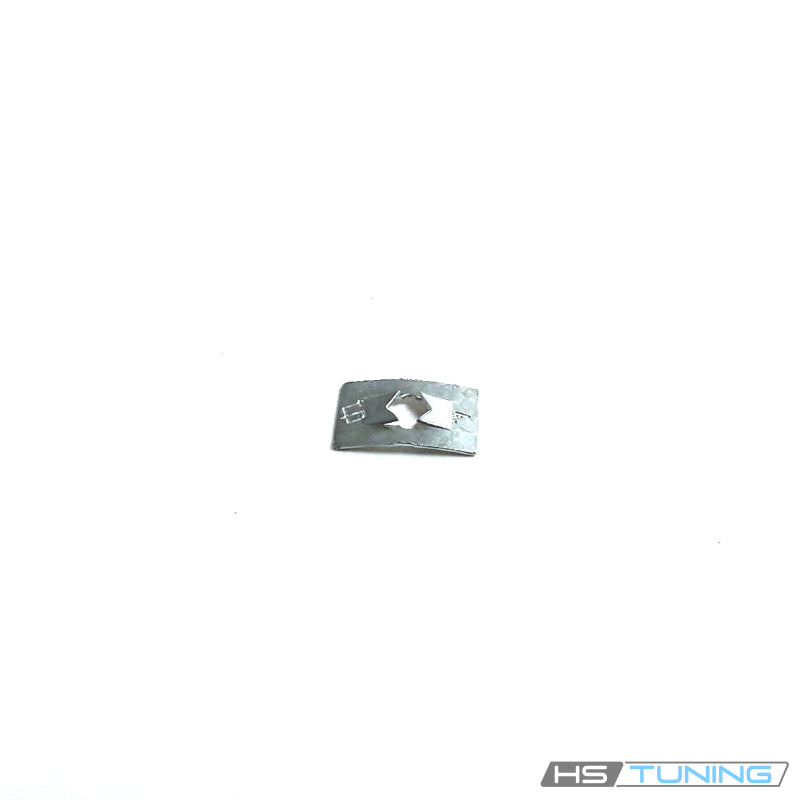

The N-012-068-1 Genuine VW/Audi clamping washer is a formed retaining clip used at the original trim and rear-speaker attachment points specified below. The rectangular clip shown in the archive photograph has a formed center opening for its intended retaining connection.
Verified applications include the rear loudspeaker installation on the listed Rabbit models and assigned trim or dashboard connections on the specified classic Volkswagen models. Match the original equipment and mounting position; this clip is not a universal substitute for all trim retainers.
Technical details
- Complete factory part number: N-012-068-1.
- Factory description: clamping washer.
- Nominal catalog size: 4.
- Design: formed rectangular retaining clip, as photographed.
- Quantity supplied: one individual clip.
The factory nominal size identifies the clip specification rather than its outside dimensions or a shipping measurement. Correct retention also depends on the original mounting stud, clip geometry and fastening arrangement. A plain flat washer or threaded nut does not duplicate this retaining design.
Common reasons to replace
- A clip is missing or lost during trim or speaker service.
- The formed retaining area has become bent or spread.
- The clip has been distorted during removal.
- Its edges or bearing surfaces are damaged.
- An incorrect substitute was fitted during a previous repair.
Inspect the mounting stud, trim tab and supported component before installing replacement hardware. A new clip cannot repair a broken stud or cracked trim. Confirm the receiver and attachment surfaces are serviceable so the replacement can engage as intended.
Vehicle fitment
The application column distinguishes speaker hardware from molding, trim and dashboard connections. Retain the stated Type 2 chassis restrictions and compare the original clip arrangement before ordering.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Rabbit | 1981–1982 | 1.7L gasoline inline-four | Mk1 hatchback; original rear loudspeaker attachment; Body-mounted audio hardware; match original equipment | Original rear loudspeaker clamping washer; nominal size 4. Applies only where the original speaker installation uses this clip. |
| Volkswagen Rabbit | 1981–1982 | 1.6L diesel inline-four | Mk1 hatchback; original rear loudspeaker attachment; Body-mounted audio hardware; match original equipment | Original rear loudspeaker clamping washer; nominal size 4. Applies only where the original speaker installation uses this clip. |
| Volkswagen Karmann Ghia | 1965 | 1.2L air-cooled gasoline flat-four | Type 14 coupe; original molding attachment; 4-speed manual; body-mounted trim hardware | Assigned original molding clamping washer; nominal size 4. Match original mounting stud and clip style. |
| Volkswagen Type 2 | 1971 | 1.6L air-cooled gasoline flat-four | Bay Window bus; original trim attachment; 4-speed manual; body-mounted trim hardware | Assigned trim clamping washer; nominal size 4. Own-part catalog restriction: VIN up to 215 2018 647. Match original trim and stud. |
| Volkswagen Type 2 | 1968 | 1.6L air-cooled gasoline flat-four | Bay Window bus; original dashboard/ashtray attachment; 4-speed manual; body-mounted interior hardware | Assigned dashboard/ashtray clamping washer; nominal size 4. Own-part catalog restriction: VIN up to 213 2102 496. Match original attachment. |
Installation guidance
Follow the factory service procedure for the specific trim or audio component. Support the component during removal and protect surrounding trim surfaces. Identify the original clip positions and inspect the mating studs before reassembly.
Use the prescribed installation method for the retaining connection. Avoid spreading or bending the formed center beyond its intended movement, and do not force the clip onto a damaged or incorrectly sized stud. Replace broken mating components rather than trying to restore retention with extra clips.
After assembly, verify that the trim or speaker is seated and retained correctly. Restore any removed covers and check audio operation if electrical connections were disturbed.
Ordering information
Supplied as one genuine retaining clip. Speakers, trim pieces, emblems, studs, screws and a complete mounting kit are not included. Confirm the quantity required for the repair; the catalog assembly quantity is not the quantity supplied by this single-item listing.
