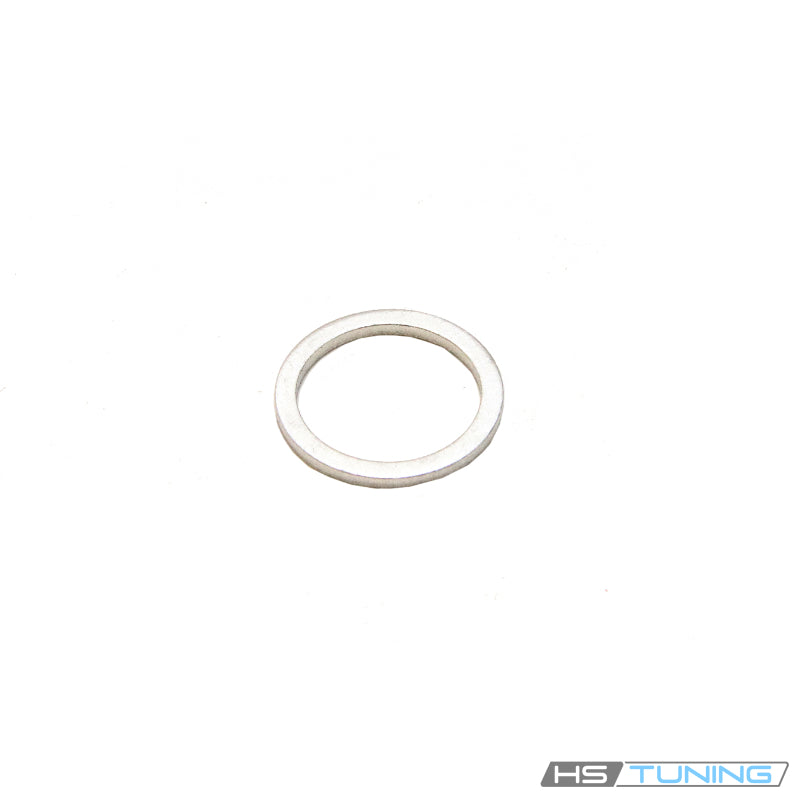

  • N-013-814-9 Genuine VW/Audi sealing washer, 17.9 mm outside diameter seal, repeated original gallery photo 2
  • N-013-814-9 Genuine VW/Audi sealing washer, fluid connection sealing washer, repeated original gallery photo 3
  • N-013-814-9 Genuine VW/Audi sealing washer, 14.2 mm bore sealing ring, repeated original gallery photo 4
  • N-013-814-9 Genuine VW/Audi sealing washer, 17.9 mm outside diameter seal, repeated original gallery photo 5
  • N-013-814-9 Genuine VW/Audi sealing washer, fluid connection sealing washer, repeated original gallery photo 6
  • N-013-814-9 Genuine VW/Audi sealing washer, 14.2 mm bore sealing ring, repeated original gallery photo 7
1 7

Genuine VW/Audi

N-013-814-9 Genuine VW/Audi Sealing Washer

N-013-814-9 Genuine VW/Audi Sealing Washer

$4.18 USD
$4.18 USD $4.18 USD
Sale Sold out
Shipping calculated at checkout.
In stock

N-013-814-9

View full details

OVERVIEW

Genuine Fluid Connection Sealing Washer

The N-013-814-9 Genuine VW/Audi sealing washer renews the sealing interface at the original fluid connection specified for this part. Its diameter and thickness must match the fitting: a visually similar ring is not enough to establish interchangeability. This listing supplies one sealing washer, allowing the quantity to be selected for the specific connection being serviced.

Technical Details

  • Original part number: N-013-814-9.
  • Inside diameter: 14.2 mm.
  • Outside diameter: 17.9 mm.
  • Thickness: 1.5 mm.
  • Quantity supplied: one individual washer; bolts, hoses and fittings are separate.

This part is used at different fluid connections across the listed vehicles. Catalog applications include turbocharger coolant line seals on Mk4 1.8T and Mk5 2.0T Volkswagen engines, and fuel supply banjo connections on specified B5 A4 and C5 A6/allroad configurations. Do not assume every engine uses the washer in the same location. The original diagram determines the fitting, number of washers and placement.

Common Reasons to Replace

  • The connection has been opened during line, turbocharger or fuel filter service and its sealing ring requires renewal.
  • The washer is scored, compressed unevenly, distorted or missing.
  • Leakage has been traced to the mating sealing faces rather than the hose or fitting itself.
  • A previous repair installed an incorrect ring or stacked washers to compensate for a damaged seat.

Fluid around a connection can travel from another component. Inspect the line and sealing faces before selecting replacement parts. A new washer cannot repair a cracked fitting, damaged bolt, worn hose or distorted sealing surface.

Installation and Service Notes

Follow the workshop procedure for the system being opened, including relieving pressure and controlling fluid loss where required. Clean and inspect the mating faces, fit the new washer in its specified position and tighten the original fastener to the vehicle-specific specification. Do not substitute a generic tightening torque or add washers to make an incorrect fitting seal.

A banjo fitting commonly places a washer on each side of the eye. The catalog identifies two washers at the fuel supply connection for the applicable B5 A4 quattro and C5 A6/allroad arrangements; this listing is sold individually. Confirm the diagram for your exact connection and inspect it for leakage after service.

Vehicle Fitment

Match the model year, engine and configuration below, then confirm the exact original connection or fastening position by VIN. A model appearing in the table does not mean the washer fits every location on that vehicle.

Vehicle Model years Engine Configuration Application restrictions
Audi A3 2006–2008 2.0L turbocharged FSI gasoline 8P; front-wheel drive; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A3 2009–2013 2.0L turbocharged TSI gasoline 8P; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A4 1997–2001 1.8L turbocharged gasoline B5; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A4 1996–1997 2.8L 12-valve V6 gasoline B5; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A4 1998–2001 2.8L 30-valve V6 gasoline B5; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi S4 2000–2002 2.7L twin-turbocharged V6 gasoline B5; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A4 2002–2005 1.8L turbocharged gasoline B6; Sedan or Avant; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A4 2006–2008 2.0L turbocharged gasoline B7; Sedan or Avant; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A4 2009–2016 2.0L turbocharged gasoline B8 / B8.5; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A5 2010–2016 2.0L turbocharged gasoline B8 / B8.5; quattro Coupe or Cabriolet; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi allroad 2013–2016 2.0L turbocharged gasoline B8; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A6 2000–2004 2.7L twin-turbocharged V6 gasoline C5; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A6 1998–2001 2.8L 30-valve V6 gasoline C5; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A6 2002–2004 3.0L V6 gasoline C5; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A6 2000–2004 4.2L V8 gasoline C5; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi allroad 2001–2005 2.7L twin-turbocharged V6 gasoline C5; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi allroad 2004–2005 4.2L V8 gasoline C5; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi S6 2002–2003 4.2L V8 gasoline C5; quattro Avant; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A8 1997–2002 4.2L V8 gasoline D2; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi S8 2001–2003 4.2L V8 gasoline D2; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi Q5 2011–2017 2.0L turbocharged gasoline 8R; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi TT 2000–2005 1.8L turbocharged gasoline; 180 hp only 8N; front-wheel drive or quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi TT 2008–2009 2.0L turbocharged FSI gasoline 8J; front-wheel drive; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi TT 2010–2015 2.0L turbocharged gasoline 8J; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi TTS 2009–2015 2.0L turbocharged gasoline 8J; quattro; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Volkswagen GTI 2000–2005 1.8L turbocharged gasoline Mk4; includes 2002 337 and 2003 20th Anniversary; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Volkswagen GTI 2006–2009 2.0L turbocharged FSI or TSI gasoline Mk5; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Volkswagen GTI 2010–2014 2.0L turbocharged gasoline Mk6; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Volkswagen CC 2009–2017 2.0L turbocharged gasoline Front-wheel drive; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Volkswagen Eos 2007–2015 2.0L turbocharged gasoline Convertible; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Volkswagen Jetta 2000–2005 1.8L turbocharged gasoline Mk4; includes 2004.5–2005 GLI; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Volkswagen Jetta GLI 2006–2009 2.0L turbocharged gasoline Mk5; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Volkswagen Passat 1998–2005 1.8L turbocharged gasoline B5 / B5.5; front-wheel drive; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Volkswagen Passat 2000–2005 2.8L 30-valve V6 gasoline B5 / B5.5; 4Motion; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Volkswagen Passat 2002–2004 4.0L W8 gasoline B5.5; 4Motion; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Volkswagen Passat 2006–2010 2.0L turbocharged gasoline B6; front-wheel drive; Match the original fastening position; transmission not separately restricted in catalog Only original fluid connection seats specified for N-013-814-9; location varies by vehicle. Match the exact fitting and VIN before ordering.
Audi A3 2006–2009 3.2L VR6 gasoline 8P hatchback; quattro; Not restricted by transmission in source; match original fitting Original fluid connection specifying N0138149. Confirm the actual oil, coolant or other assigned fitting and seal position by VIN; not every hose on the listed engine uses this washer.
Audi A3 2010–2013 2.0L TDI diesel 8P hatchback; front-wheel drive; Not restricted by transmission in source; match original fitting Original fluid connection specifying N0138149. Confirm the actual oil, coolant or other assigned fitting and seal position by VIN; not every hose on the listed engine uses this washer.
Audi A4 2002–2005 3.0L 30-valve V6 gasoline B6; original body and fitting matched by VIN; Not restricted by transmission in source; match original fitting Original fluid connection specifying N0138149. Confirm the actual oil, coolant or other assigned fitting and seal position by VIN; not every hose on the listed engine uses this washer.
Audi TT 2008–2009 3.2L VR6 gasoline 8J coupe / roadster; quattro; Not restricted by transmission in source; match original fitting Original fluid connection specifying N0138149. Confirm the actual oil, coolant or other assigned fitting and seal position by VIN; not every hose on the listed engine uses this washer.
Volkswagen CC 2009–2012 3.6L VR6 gasoline Sedan; original FWD / 4Motion fitting matched by VIN; Not restricted by transmission in source; match original fitting Original fluid connection specifying N0138149. Confirm the actual oil, coolant or other assigned fitting and seal position by VIN; not every hose on the listed engine uses this washer.
Volkswagen Passat 2006–2008 3.6L VR6 gasoline B6 sedan / wagon; original FWD / 4Motion fitting matched by VIN; Not restricted by transmission in source; match original fitting Original fluid connection specifying N0138149. Confirm the actual oil, coolant or other assigned fitting and seal position by VIN; not every hose on the listed engine uses this washer.
