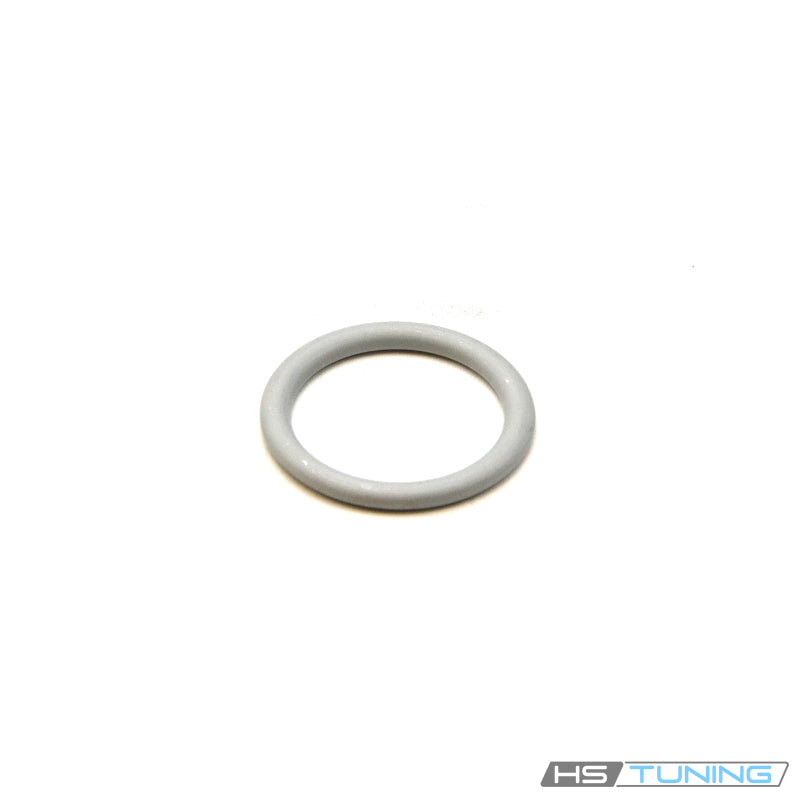

• N-013-850-3 Genuine VW/Audi 24x32 mm oil drain plug sealing washer, 24 mm bore oil drain seal, original product photo
  • N-013-850-3 Genuine VW/Audi 24x32 mm oil drain plug sealing washer, 32 mm outside diameter sealing washer, repeated original gallery photo 2
  • N-013-850-3 Genuine VW/Audi 24x32 mm oil drain plug sealing washer, V8 engine oil service sealing ring, repeated original gallery photo 3
  • N-013-850-3 Genuine VW/Audi 24x32 mm oil drain plug sealing washer, 24 mm bore oil drain seal, repeated original gallery photo 4
  • N-013-850-3 Genuine VW/Audi 24x32 mm oil drain plug sealing washer, 32 mm outside diameter sealing washer, repeated original gallery photo 5
  • N-013-850-3 Genuine VW/Audi 24x32 mm oil drain plug sealing washer, V8 engine oil service sealing ring, repeated original gallery photo 6
  • N-013-850-3 Genuine VW/Audi 24x32 mm oil drain plug sealing washer, 24 mm bore oil drain seal, repeated original gallery photo 7
1 7

Genuine VW/Audi

N-013-850-3 Genuine VW/Audi Oil Drain Plug Sealing Washer

N-013-850-3 Genuine VW/Audi Oil Drain Plug Sealing Washer

$3.48 USD
$3.48 USD $3.48 USD
Sale Sold out
Shipping calculated at checkout.
In stock

N-013-850-3

View full details

OVERVIEW

Genuine Oil Drain Plug Sealing Washer

The N-013-850-3 Genuine VW/Audi oil drain plug washer renews the seal between the original drain plug and its mating surface on the specified V8 applications. The sealing ring is compressed by the correctly tightened plug to establish the fluid seal. This listing includes one washer; the drain plug and oil pan are separate.

Technical Details

  • Original part number: N-013-850-3.
  • Catalog dimensions: 24 mm inside diameter × 32 mm outside diameter.
  • Function: sealing washer for the matching engine oil drain plug.
  • Quantity supplied: one individual washer.
  • Match the original oil pan and drain plug before ordering.

The sealing diameter is important: a smaller or larger washer can sit incorrectly against the plug or oil pan. The 24 × 32 mm specification identifies this washer's seating dimensions; it is not the thread size of the drain plug. No unverified thickness or shipping weight is assigned to this Genuine part.

Common Reasons to Replace

  • The original washer has already been compressed during a previous oil service.
  • The sealing ring is distorted, scored, cracked or missing.
  • Oil seepage has been traced to the drain plug sealing faces.
  • A previous service installed an incorrect ring or reused a damaged washer.
  • The drain plug has been removed and its seal requires renewal.

Oil on the underside of the engine can come from several locations. Inspect the drain plug, sealing surface and surrounding components before assuming the washer is responsible. A replacement washer cannot repair damaged oil pan threads, a cracked sump or an incorrect plug.

Installation and Oil Service Notes

Follow the vehicle-specific oil service procedure. Remove the old washer, inspect the drain plug and sealing seat, and install the correct new ring. Tighten the plug to the workshop specification for the exact engine and oil pan. Overtightening can damage the threads or sealing surface and should not be used to compensate for a persistent leak.

Refill with the specified oil and verify the oil level using the applicable procedure. Inspect the serviced drain connection after operation. This is a sealing component rather than a substitute for damaged fastening hardware.

The Touareg application is restricted to the AXQ 4.2L engine, and the listed C6 A6 application is restricted to the BNK 4.2L engine. Engine displacement alone does not establish fitment: later engine versions and replacement oil pans must be checked against their original drain plug arrangement.

Vehicle Fitment

Match the model year, engine and configuration below. Confirm the complete part number and the existing drain plug before ordering, especially if the sump has been replaced.

Vehicle Model years Engine Configuration Application restrictions
Audi S4 2004–2005 4.2L V8 gasoline B6; quattro; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Audi S4 2006–2008 4.2L V8 gasoline B7; quattro Sedan or Avant; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Audi S4 2006–2009 4.2L V8 gasoline B7; quattro Cabriolet; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Audi A6 2000–2004 4.2L V8 gasoline C5; quattro; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Audi allroad 2004–2005 4.2L V8 gasoline C5; quattro; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Audi S6 2002–2003 4.2L V8 gasoline C5; quattro Avant; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Audi A6 2005–2006 4.2L V8 gasoline; BNK C6; quattro; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware. BNK engine only.
Audi A8 1997–2002 4.2L V8 gasoline D2; quattro; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Audi S8 2001–2003 4.2L V8 gasoline D2; quattro; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Audi A8 2004–2006 4.2L V8 gasoline D3; quattro; port-injected V8; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Audi RS6 2003 4.2L twin-turbocharged V8 gasoline C5; quattro Sedan; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Audi V8 1990–1991 3.6L V8 gasoline D1; quattro; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Audi V8 1992–1994 4.2L V8 gasoline D1; quattro; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Volkswagen Phaeton 2004–2006 4.2L V8 gasoline 4Motion; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware.
Volkswagen Touareg 2004–2007 4.2L V8 gasoline; AXQ only First-generation; 4Motion; No separate transmission restriction for the specified engine oil drain plug Original engine oil drain plug requiring N-013-850-3, 24 × 32 mm. Match the original sump and plug; replacement or modified oil pans may use different hardware. AXQ engine only. 2007 requires the AXQ port-injected V8 and original 24 mm drain plug; excludes different FSI V8 / drain-plug arrangements.
