OVERVIEW

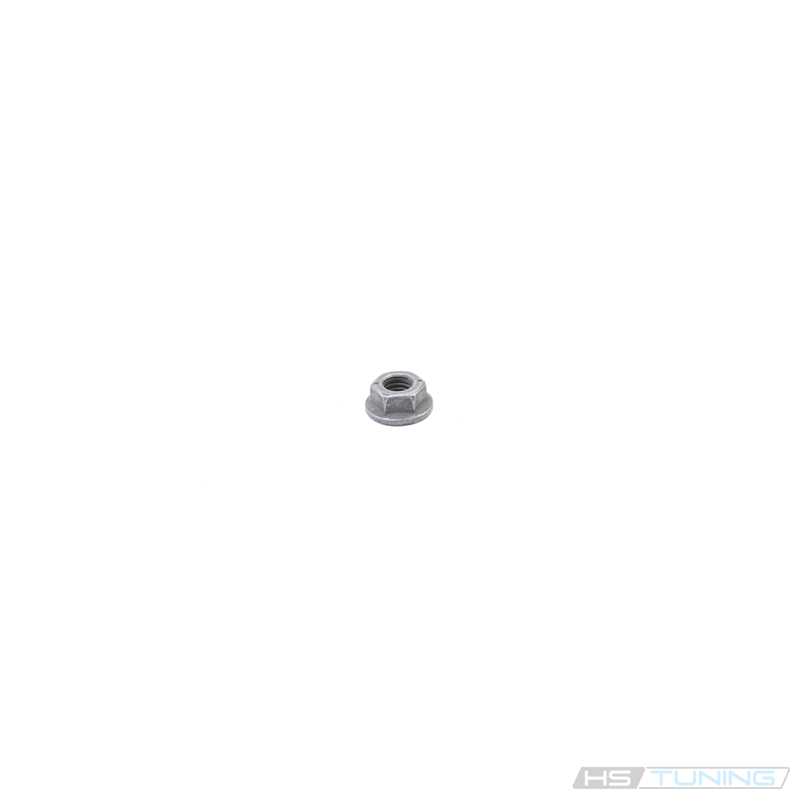

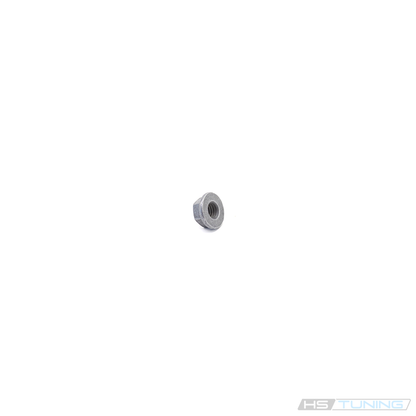

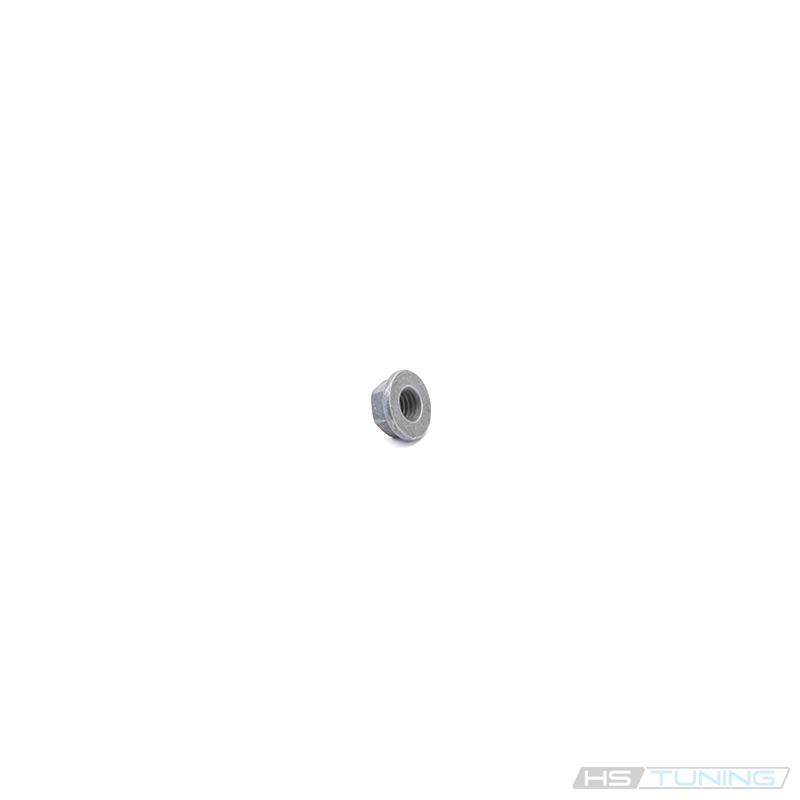

Genuine VW/Audi M6 shouldered hex nut, part number N-015-082-10. This small mounting fastener secures the assigned component to its matching stud or bolt. Its hex exterior provides a tool engagement surface, while its integral collar bears against the mounting face.
Technical details
- Original part number: N-015-082-10 / N01508210.
- M6 nominal thread size; shouldered / collared hex nut.
- Integral flange is visible in both original source photos.
- Supplied individually. Mating bolts, studs, brackets and other components are separate.
- Used at multiple factory mounting locations, including the specific assemblies listed below.
- Thread size alone does not establish equivalence. Match the original part assignment and bearing-face arrangement.
Common reasons to replace
Replace a missing nut, one with stripped or corroded threads, or a nut whose hex faces are too damaged for reliable tool engagement. A distorted collar or damaged mating surface can prevent proper seating even when the nut still threads onto the stud.
Loose mounting hardware or movement at the supported component warrants inspection of the full connection. Check the stud or bolt, bracket, mounting surface and any required spacers. Replacing the nut will not correct a broken stud, cracked bracket or worn mounting point.
Installation and service notes
Support the component before loosening its hardware. Check that the replacement matches the original nut and thread it on by hand. Do not force it onto damaged or mismatched threads.
Seat the collar against the intended mounting face and tighten to the specification for that exact assembly. Follow any factory replacement requirement for the adjoining hardware. Recheck that the component is secure and that wiring, hoses or moving mechanisms remain correctly positioned.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A3 quattro | 2015 | 2.0L turbo gasoline | Sedan or Cabriolet; body cross-bar fastening; Fastener assignment follows the specified assembly | Sedan or Cabriolet; body cross-bar fastening; M6 mating stud/bolt and factory N01508210 assignment required. Not interchangeable with every M6 nut. |
| Audi S3 | 2015 | 2.0L turbo gasoline | Sedan; left/right door window-regulator mounting; Fastener assignment follows the specified assembly | Sedan; left/right door window-regulator mounting; M6 mating stud/bolt and factory N01508210 assignment required. Not interchangeable with every M6 nut. |
| Audi RS5 | 2015 | 4.2L V8 gasoline | Auxiliary radiator mounting brackets; left and right assigned locations; Fastener assignment follows the specified assembly | Auxiliary radiator mounting brackets; left and right assigned locations; M6 mating stud/bolt and factory N01508210 assignment required. Not interchangeable with every M6 nut. |
| Volkswagen Jetta SportWagen | 2013 | 2.0L TDI diesel | Engine-area pressure-regulator mounting; Fastener assignment follows the specified assembly | Engine-area pressure-regulator mounting; M6 mating stud/bolt and factory N01508210 assignment required. Not interchangeable with every M6 nut. |
| Volkswagen Passat | 2013 | 2.0L TDI diesel | EGR assembly pressure-regulator mounting; Fastener assignment follows the specified assembly | EGR assembly pressure-regulator mounting; M6 mating stud/bolt and factory N01508210 assignment required. Not interchangeable with every M6 nut. |
| Audi A3 Sportback e-tron | 2016 | 1.4L plug-in hybrid | Hybrid battery charger mounting; hatchback; Factory gearbox; specified assembly determines fastener | M6 mating stud and exact N01508210 assignment required. Confirm mounting location by VIN. |
| Audi A4 allroad | 2017–2021 | 2.0L turbo gasoline / mild hybrid where offered | B9 wagon; liftgate-assigned mounting nut; Factory gearbox; specified assembly determines fastener | M6 mating stud and exact N01508210 assignment required. Confirm mounting location by VIN. |
| Volkswagen Golf Alltrack | 2019 | 1.8L turbo gasoline | SE; left-side rear body mounting bracket; catalog position 28; Factory gearbox; specified assembly determines fastener | M6 mating stud and exact N01508210 assignment required. Confirm mounting location by VIN. |
| Volkswagen Golf Alltrack | 2017–2019 | 1.8L turbo gasoline; CXBB | Oil-level sensor shouldered mounting nut; 4Motion; Factory gearbox; specified assembly determines fastener | M6 mating stud and exact N01508210 assignment required. Confirm mounting location by VIN. |
| Volkswagen Golf R | 2015–2017 | 2.0L turbo gasoline; CYFB | Oil-level sensor shouldered mounting nut; 4Motion; Factory gearbox; specified assembly determines fastener | M6 mating stud and exact N01508210 assignment required. Confirm mounting location by VIN. |
| Volkswagen Golf R | 2018 | 2.0L turbo gasoline; DJJA | Oil-level sensor shouldered mounting nut; 4Motion; Factory gearbox; specified assembly determines fastener | M6 mating stud and exact N01508210 assignment required. Confirm mounting location by VIN. |
| Volkswagen Golf R | 2019 | 2.0L turbo gasoline; DLRA | Oil-level sensor shouldered mounting nut; 4Motion; Factory gearbox; specified assembly determines fastener | M6 mating stud and exact N01508210 assignment required. Confirm mounting location by VIN. |
| Volkswagen Jetta GLI | 2019–2021 | 2.0L turbo gasoline; DKFA | Oil-level sensor shouldered mounting nut; Factory gearbox; specified assembly determines fastener | M6 mating stud and exact N01508210 assignment required. Confirm mounting location by VIN. |
Order by the specific assembly and original nut number. Matching thread diameter alone does not confirm the correct shoulder, flange or locking design.
