OVERVIEW
Original bolt for the parking-brake bracket attachment

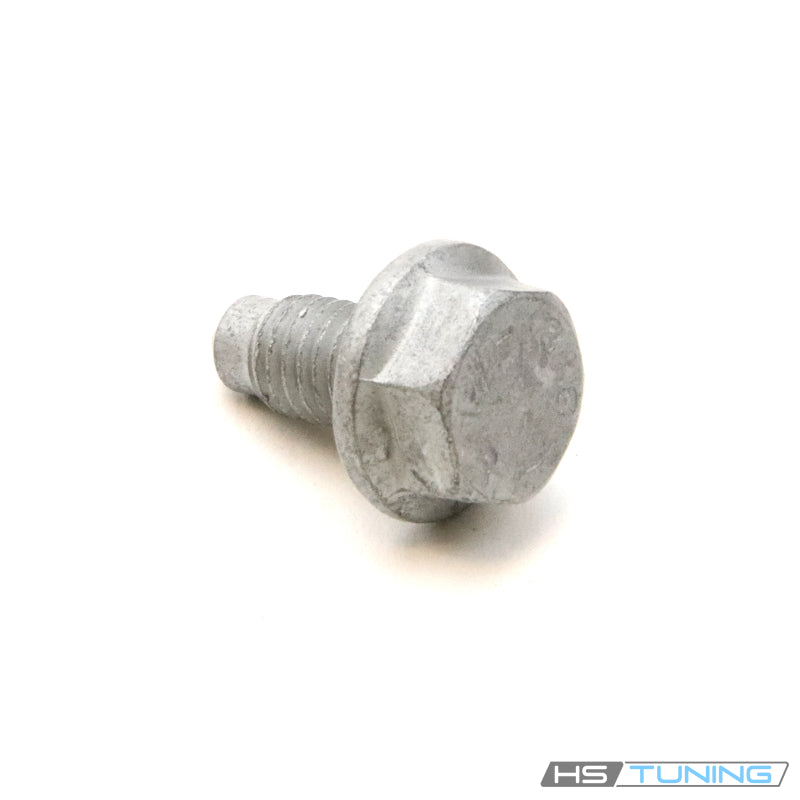

The N-019-519-5 Genuine VW/Audi parking brake bracket bolt secures the original parking-brake bracket at the mounting position identified in the factory parts arrangement. It is mounting hardware for the lever/bracket assembly, not the lever button, brake cable or wheel-end brake mechanism. Confirm the exact bracket and bolt position before ordering.
Technical details
- Original number: N-019-519-5 / N0195195.
- Specification: M8 nominal thread diameter and 16 mm specified length.
- Head design: external hex with an integral collar beneath the head.
- Function in the listed applications: retention of the original parking-brake bracket assembly.
- Quantity: one bolt. Lever, bracket, cables, nuts and trim are sold separately.
The original bolt length and bearing collar must match the attachment. A substitute that threads into the hole may still provide the wrong engagement or seating surface. Use the exact original number and preserve the complete factory mounting arrangement.
Common reasons to replace
- Damaged head: rounded flats or tool damage can make controlled removal and tightening difficult.
- Damaged threads: cross-threading or prior fastening damage can prevent the bracket from being secured correctly.
- Missing mounting hardware: a previous console or parking-brake repair may leave the attachment incomplete.
- Incorrect replacement bolt: a fastener with a different length or head arrangement can prevent correct seating.
- Bracket or lever service: inspect the mounting hardware whenever the original parking-brake assembly is removed.
A parking brake that will not hold, has excessive travel or feels loose requires inspection of the complete system. Replacing this bolt does not adjust cable tension or repair a worn lever, damaged cable or defective wheel-end mechanism. Identify the fault and follow the appropriate repair and adjustment procedure.
Fitment data sheet
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 2002–2005 | 1.8L turbo gasoline | B6 Sedan / Avant; front-wheel drive or quattro; 2005 B6 body only; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi A4 | 2003–2006 | 1.8L turbo gasoline | B6 Cabriolet; front-wheel drive or quattro; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi A4 | 2002–2005 | 3.0L V6 gasoline | B6 Sedan / Avant; front-wheel drive or quattro; 2005 B6 body only; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi A4 | 2003–2005 | 3.0L V6 gasoline | B6 Cabriolet; front-wheel drive or quattro; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi A4 | 2005–2008 | 2.0L turbo gasoline | B7 Sedan / Avant; front-wheel drive or quattro; 2005 B7 body only; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi A4 | 2007–2009 | 2.0L turbo gasoline | B7 Cabriolet; front-wheel drive or quattro; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi A4 | 2005–2008 | 3.2L FSI V6 gasoline | B7 Sedan / Avant; front-wheel drive or quattro; 2005 B7 body only; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi A4 | 2007–2009 | 3.2L FSI V6 gasoline | B7 Cabriolet; quattro; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi S4 | 2004–2005 | 4.2L V8 gasoline | B6 Sedan / Avant; quattro; 2005 B6 body only; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi S4 | 2004–2006 | 4.2L V8 gasoline | B6 Cabriolet; quattro; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi S4 | 2005–2008 | 4.2L V8 gasoline | B7 Sedan / Avant; quattro; 2005 B7 body only; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi S4 | 2007–2009 | 4.2L V8 gasoline | B7 Cabriolet; quattro; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi RS4 | 2007–2008 | 4.2L FSI V8 gasoline | B7 Sedan; quattro; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
| Audi RS4 | 2008 | 4.2L FSI V8 gasoline | B7 Cabriolet; quattro; Transmission independent at the original interior parking-brake bracket attachment | Original parking-brake bracket/lever assembly bolt position specifying N-019-519-5. Confirm the mounting bracket and original diagram; not a wheel brake, cable-adjustment or lever-button replacement. |
Installation and ordering guidance
Match this exact part number to the vehicle identification number and original parking-brake assembly diagram. The bracket bolt is a different part from the lever trim, button, mounting nut and cable-retention hardware. Count the fasteners required at the serviced bracket and order the correct quantity.
Support and position the lever/bracket assembly as directed by the repair procedure. Inspect its mounting surfaces and the receiving threads before installing the bolt. Use the prescribed tightening value for the bracket position, and avoid trapping trim or cables beneath the mount. Refit the interior components in their original arrangement.
Complete any required cable adjustment and functional checks according to the factory instructions after the bracket or lever has been serviced. Confirm that the parking brake applies and releases correctly and that the repaired mounting assembly is securely seated.
