OVERVIEW

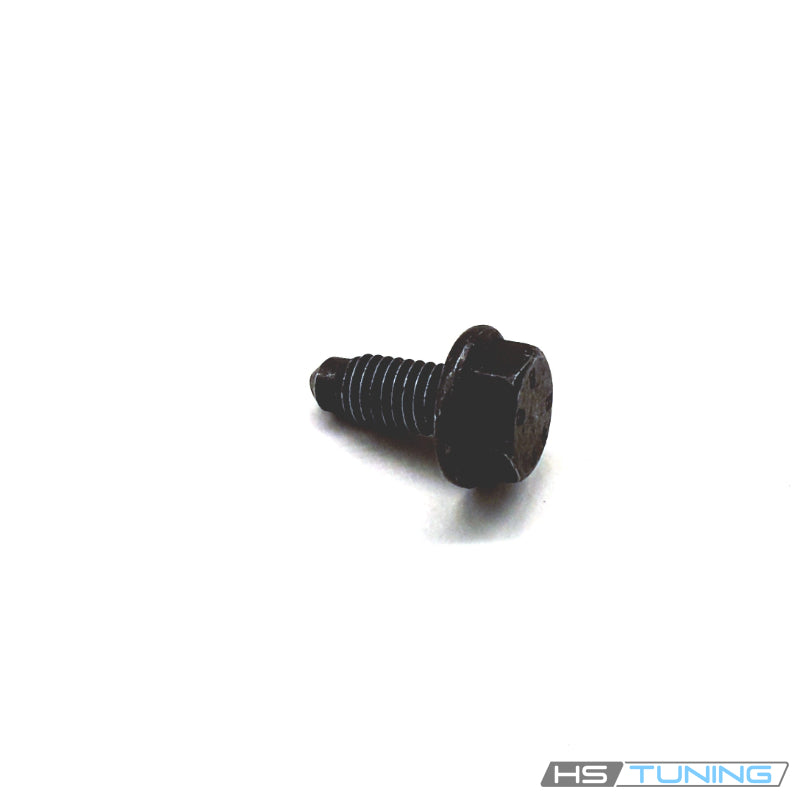

Genuine collared bolt for the original horn bracket
The N-019-538-9 Genuine VW/Audi bolt secures the assigned horn mounting bracket on the configurations listed below. Its collared hex head provides the specified bearing surface at the original attachment.
The signal horns and alarm horn use different brackets and fasteners depending on equipment. This listing covers the particular M8×18 bolt assigned to the stated connection. It does not include a horn, bracket, relay or wiring.
Technical details
- Complete factory number: N-019-538-9.
- Factory specification: M8 × 18.
- Design: hexagon-head bolt with integral collar.
- Quantity supplied: one individual bolt.
The collar and specified length are part of the attachment design. A plain hex bolt of similar diameter may not provide the same bearing geometry or thread engagement. Match the complete original number and mounting position.
Common reasons to replace
- The original mounting bolt is missing after horn or front-end service.
- Threads are damaged or no longer engage correctly.
- The hex head is rounded or damaged.
- Corrosion has damaged the fastener.
- Incorrect replacement hardware was previously fitted.
Inspect the bracket, body mounting point and mating threads. A new bolt cannot repair a cracked horn bracket or diagnose a silent horn. Check the horn, wiring, fuse and controls separately when investigating an electrical fault.
Vehicle fitment
Confirm the original horn bracket and bolt position. The Eos alarm-horn application specifically requires PR 7AG equipment; signal horn and alarm horn hardware must not be interchanged without verification.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Eos | 2012 | 2.0L TSI gasoline inline-four | Convertible; PR 7AG alarm equipment; Original alarm horn bracket | Alarm horn bracket assigned N0195389; PR 7AG required. |
| Volkswagen Tiguan | 2013 | 2.0L TSI gasoline inline-four | First-generation SUV; front-wheel drive or 4Motion; Original fanfare horn bracket | Original fanfare mounting point assigned N0195389; verify installed horn bracket. |
| Volkswagen Passat | 2015 | 1.8L TSI gasoline inline-four | NMS sedan; Original signal horn mounting assembly | Original signal horn bracket position assigned N0195389; not a blanket claim for all alarm hardware. |
| Volkswagen Passat | 2015 | 2.0L TDI diesel inline-four | NMS sedan; Original signal horn mounting assembly | Original signal horn bracket position assigned N0195389; not a blanket claim for all alarm hardware. |
| Volkswagen Passat | 2015 | 3.6L VR6 gasoline | NMS sedan; Original signal horn mounting assembly | Original signal horn bracket position assigned N0195389; not a blanket claim for all alarm hardware. |
Installation guidance
Follow the factory access and electrical isolation instructions for the horn assembly. Support the horn and bracket, inspect the receiving threads and seat the bracket correctly. Start the bolt by hand and tighten to the original attachment specification.
Check bracket security, harness routing and clearance from nearby components. Restore electrical connections and test the serviced horn using the factory procedure.
Ordering information
Supplied as one genuine bolt. Verify the quantity needed for the selected horn bracket. Horns, brackets and additional mounting hardware are supplied separately.
