OVERVIEW
Original support for routed hoses and lines

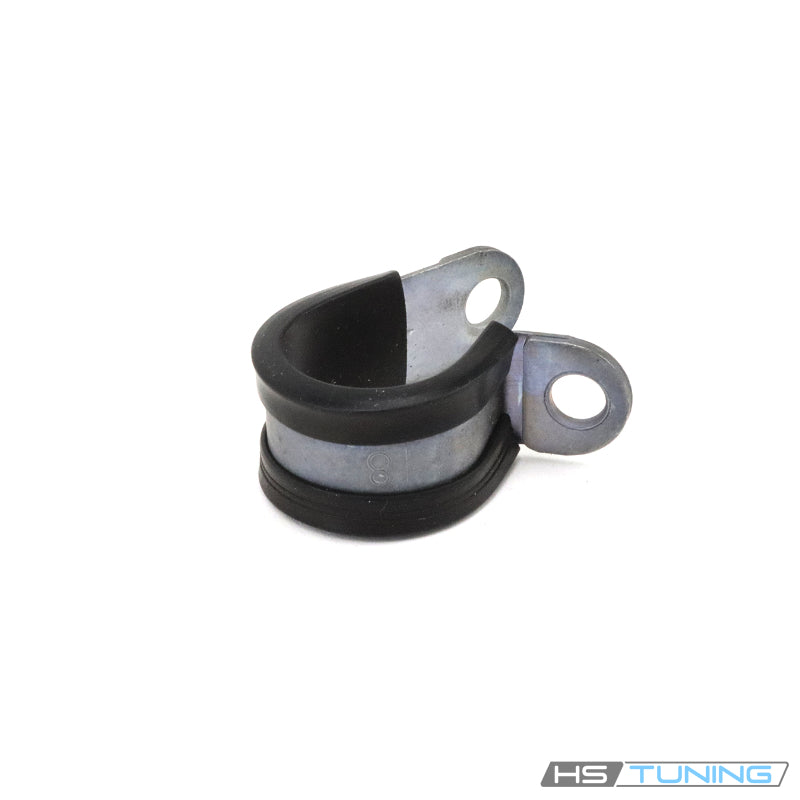

The N-020-640-6 Genuine VW/Audi hose and line support clip holds the specified line at its original mounting point. A hose or pipe that has lost its support can move away from the designed routing and rub against a bracket or nearby component. Replacing a damaged or missing clip helps restore the original support arrangement during air-conditioning, steering or engine-bay line service.
Technical details
- Original part number: N-020-640-6 / N0206406.

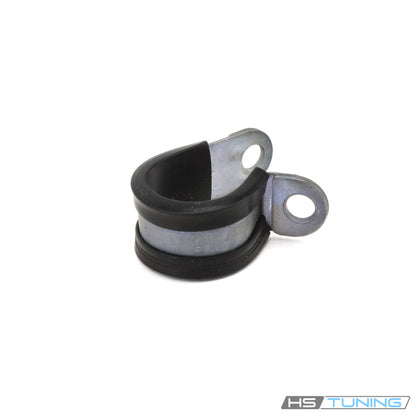

- Design: formed support clip with mounting tabs and a cushioned line-contact area visible in the original product photograph.
- Function: retain and support the specified hose or line at the original attachment.
- Previous revision: N-020-640-2 at corresponding original catalog positions.
- Quantity: one clip. The supported hose, mounting fastener and bracket are not included.
This is support hardware, not a hose repair fitting or a pressure-sealing connection. Match the original clip and bracket arrangement rather than selecting it solely by the apparent diameter in a photograph. Different line routes on the same vehicle may require different retainers.
Common reasons to replace
- Missing support: a line is no longer retained at its original mounting point after prior engine-bay work.
- Deformed mounting tabs: bent or cracked tabs prevent the clip from seating correctly against its bracket.
- Damaged contact lining: a worn, displaced or deteriorated cushion can leave the supported line exposed to direct contact with the clip.
- Corrosion or mounting damage: damaged hardware can reduce the support’s ability to hold the line in its specified position.
- Line replacement: inspect the retainers when fitting a replacement A/C or steering line and replace any unsuitable clips.
If a line shows abrasion, a leak or a damaged outer surface, inspect the line itself as well as the missing or failed support. A new clip does not repair a damaged pipe or hose. Ensure the complete routing clears belts, pulleys, hot components and adjoining brackets.
Fitment data sheet
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi 100 | 1992–1994 | 2.8L V6 gasoline | C4 Sedan / Avant; front-wheel drive or quattro; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi A6 | 1995–1997 | 2.8L V6 gasoline | C4 Sedan / Avant; front-wheel drive or quattro; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi A6 | 1998 | 2.8L V6 gasoline | C4 Avant only; excludes new C5 Sedan; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi A6 | 2002–2004 | 2.7L twin-turbo V6 gasoline | C5 Sedan; quattro; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi A6 | 2002–2004 | 4.2L V8 gasoline | C5 Sedan; quattro; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi S4 | 1992–1994 | 2.2L turbo five-cylinder gasoline | C4 Sedan; quattro; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi S4 | 2000–2002 | 2.7L twin-turbo V6 gasoline | B5 Sedan / Avant; quattro; Avant from 2001; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi S4 | 2010–2016 | 3.0L supercharged V6 gasoline | B8 / B8.5 Sedan; quattro; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi S6 | 1995 | 2.2L turbo five-cylinder gasoline | C4 Sedan / Avant; quattro; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi S6 | 2002–2003 | 4.2L V8 gasoline | C5 Avant; quattro; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi A8 | 2004–2006 | 4.2L V8 gasoline | D3 Sedan; standard or long wheelbase; quattro; port injection; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi A8 | 2007–2009 | 4.2L FSI V8 gasoline | D3 Sedan; standard or long wheelbase; quattro; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi A8 L | 2005–2009 | 6.0L W12 gasoline | D3 long-wheelbase Sedan; quattro; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
| Audi S8 | 2007–2009 | 5.2L V10 gasoline | D3 Sedan; quattro; Transmission not separately restricted in the confirmed clip application | Only hose or line support positions specifying this exact original clip. Verify the supported line, mounting bracket and attachment arrangement; not a universal fit for every hose. |
Installation and ordering guidance
Confirm this exact number against the vehicle identification number and the original hose or line support diagram. Preserve the original line routing, bracket and mounting orientation. Seat the cushioned contact area around the correct line without forcing the clip over an unsuitable diameter or crushing the hose. Inspect the mounting fastener and support bracket before reassembly.
Follow the factory procedure for the supported system. Replacing a support clip does not by itself require opening a fluid connection; if the repair also involves disconnecting a refrigerant or steering line, follow the applicable system procedure. Tighten the mounting fastener to the specified value for that attachment and check clearance after the support is installed.
