OVERVIEW

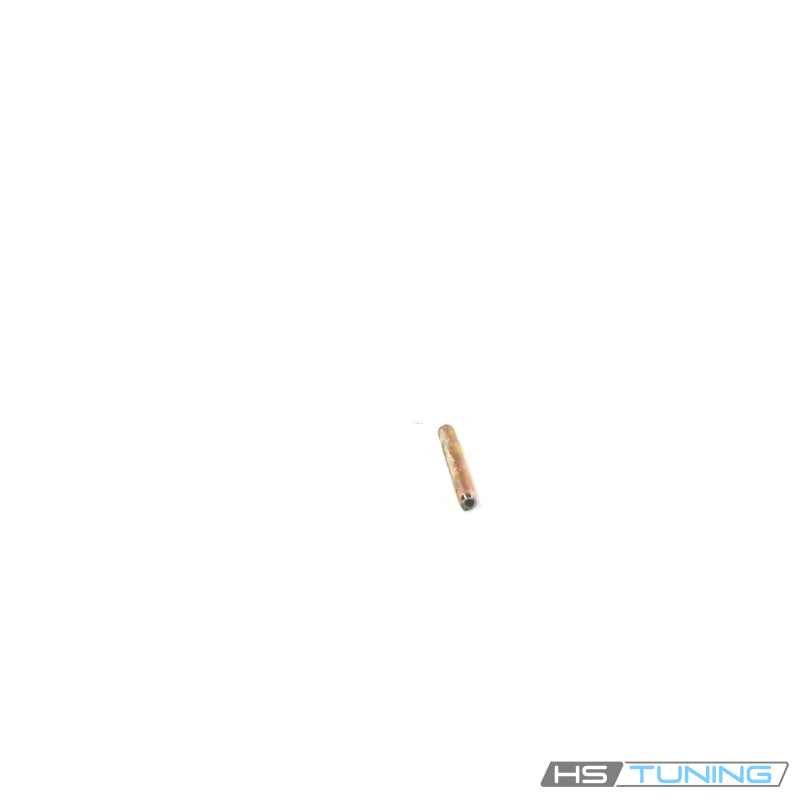

Genuine vent-window latch retaining pin
The N-022-042-1 Genuine VW/Audi spring pin retains the assigned small connection in the original vent-window latch assembly on the vehicles listed below. Its tubular spring-pin design fits the factory-specified receiving bore.
This part serves the opening vent-window hardware. It is not a general door-hinge pin, window-regulator axle or lock-striker fastener. Match the original assembly and complete factory number before ordering.
Technical details
- Complete factory number: N-022-042-1.
- Factory specification: 2 × 14.
- Design: tubular spring pin for the original small latch connection.
- Quantity supplied: one individual pin.
The factory nominal size identifies the pin itself rather than packaged shipping dimensions. Spring pins depend on the correct bore and retention fit; another pin of similar apparent length is not automatically interchangeable.
Common reasons to replace
- The pin is missing after latch disassembly.
- The original pin has bent or become distorted.
- The spring pin no longer retains securely in its correct bore.
- Damage during removal prevents correct reinstallation.
- Inspection identifies incorrect substitute hardware in the latch.
Inspect the latch, receiving bore and surrounding window hardware before replacing the pin. A worn bore, cracked latch or damaged frame can require additional repair. A new pin cannot restore worn mating components or correct a vent window that is misaligned.
Vehicle fitment
Each row requires the original opening vent-window latch arrangement assigned this pin. Fixed window assemblies and other door connections require different hardware.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Rabbit Pickup | 1980 | 1.6L gasoline or 1.6L diesel inline-four | Mk1 pickup; front-wheel drive; original opening vent window; Original vent-window latch assembly | Assigned 2×14 spring pin at original vent-wing/latch assembly only. Not a main door hinge or lock-striker pin. |
| Volkswagen Rabbit Pickup | 1981–1982 | 1.7L gasoline or 1.6L diesel inline-four | Mk1 pickup; front-wheel drive; original opening vent window; Original vent-window latch assembly | Assigned 2×14 spring pin at original vent-wing/latch assembly only. Not a main door hinge or lock-striker pin. |
| Volkswagen Vanagon | 1981 | 2.0L air-cooled gasoline flat-four | Van/camper; rear-wheel drive; original opening vent window; 4-speed manual or 3-speed automatic | Assigned 2×14 pin in original front vent-wing clamp/latch assembly. Excludes fixed vent-window arrangements and main door hinges. |
Installation guidance
Follow the factory vent-window hardware procedure. Support the latch and frame, protect the nearby glass and finish, and use the specified pin-removal and installation tools. Keep the receiving holes aligned and install the pin to the prescribed position without forcing the assembly.
Check that the pin is retained correctly, the latch pivots and closes normally, and the window seats against its seal. Do not use a larger pin to compensate for an enlarged or damaged bore.
Ordering information
Supplied as one genuine spring pin. Latch, clamp, frame, glass, seals and a complete hardware kit are not included. Confirm the quantity required for the original assembly.
