OVERVIEW
Genuine secondary-air pump attachment nut

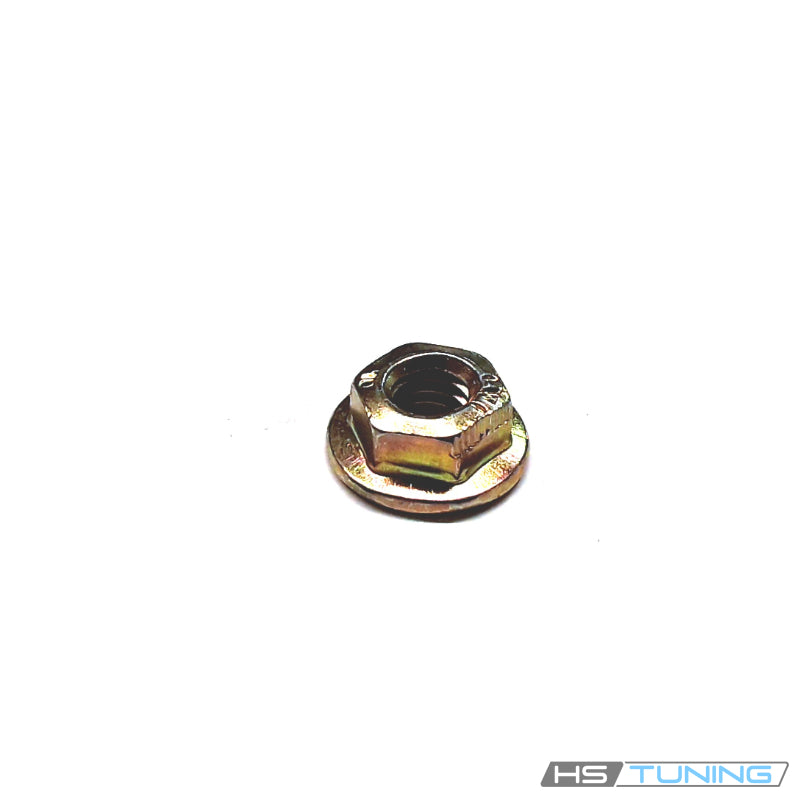

The N-023-002-6 Genuine VW/Audi self-locking nut secures the assigned M6 mounting connection in the original secondary-air pump assembly on the configurations listed below.
The mounting arrangement includes a pump retainer and rubber isolation components. Match the nut to the original stud or bolt and complete factory number. The same model year can have a different emissions arrangement or no corresponding pump assembly.
Technical details
- Complete factory number: N-023-002-6.
- Factory specification: M6 thread; self-locking hexagon nut.
- Design: hexagon mounting nut with the original self-locking retention feature.
- Quantity supplied: one individual nut.
The thread specification identifies the nut, not a packaged shipping dimension. Confirm the original bearing surface and mating hardware. A standard loose hex nut is not automatically equivalent to this self-locking factory part.
Common reasons to replace
- The nut is missing after pump or bracket removal.
- The threads have been crossed or stripped.
- The wrenching flats or bearing surface are damaged.
- The locking feature is damaged or no longer provides the specified retention.
- The factory procedure requires new locking hardware during reassembly.
Inspect the pump bracket, mating stud or bolt and rubber isolation mounts. A cracked bracket or worn mount can allow pump movement even with a new nut. Pump noise and emissions faults require diagnosis of the complete secondary-air system.
Vehicle fitment
The table requires the original factory secondary-air pump mounting arrangement. Observe the Cabrio VIN branch and confirm the assigned attachment before ordering.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Golf | 1995 | 2.0L gasoline inline-four | Mk3 hatchback; front-wheel drive; factory secondary-air pump; Original secondary-air pump mounting arrangement | Factory secondary-air pump and assigned M6 mounting connection required. Not every 1995 engine/emissions configuration uses this assembly. |
| Volkswagen Cabrio | 1996 | 2.0L gasoline inline-four | Mk3 convertible; front-wheel drive; factory secondary-air pump; Original pump mounting arrangement; VIN from 1E-TM800001 | Catalog branch VIN from 1E-TM800001; assigned original secondary-air pump/retainer M6 mounting connection. Confirm full VIN and factory equipment. |
Installation guidance
Follow the factory pump and bracket service procedure. Support the pump, protect its hoses and electrical connection, and retain the correct arrangement of rubber mounts and hardware. Install new self-locking hardware where specified and follow the tightening instruction for the exact attachment.
Confirm that the pump is supported through its intended isolation mounts, hoses and wiring are secure, and surrounding components have clearance. Do not crush or bypass rubber isolation mounts by excessive tightening.
Ordering information
Supplied as one genuine nut. Pump, bracket, rubber mounts, stud, bolt, hoses and a complete hardware kit are not included. Confirm the number of nuts required for the repair.
