Genuine VW/Audi

N-024-528-1 Genuine VW/Audi Hose Clamp 8–12 mm

N-024-528-1 Genuine VW/Audi Hose Clamp 8–12 mm

$0.44 USD
$0.44 USD $0.44 USD
Sale Sold out
Shipping calculated at checkout.
Out of stock

N-024-528-1

View full details

OVERVIEW

Original small-diameter hose clamp

The N-024-528-1 Genuine VW/Audi hose clamp retains a small hose over its matching connection at the original position specified in the parts diagram. The archive photo shows a screw-adjusted metal band clamp. Match the original clamp specification, hose outside diameter and fitting before ordering; a vehicle can use many different clamp sizes and designs.

Technical details

  • Original number: N-024-528-1 / N0245281.
  • Genuine catalog size: 8–12 mm hose clamp range.

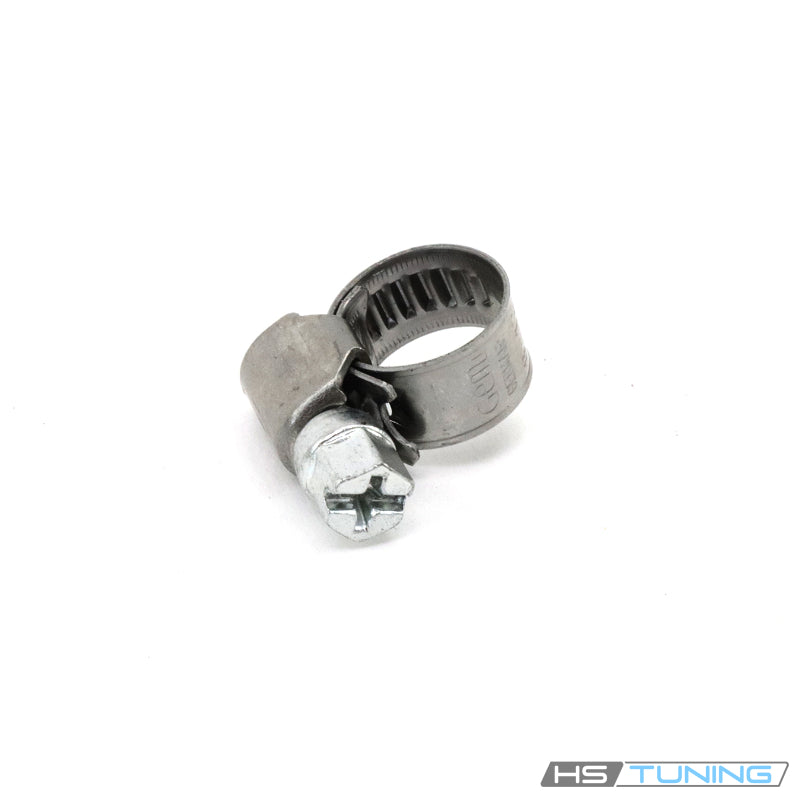

  • Archive design shown: screw-adjusted metal band with an external screw housing.
  • Application: original small hose connection requiring this exact clamp number.
  • Quantity: one clamp. Hose, pipe, valve and other connections are separate.

Clamp range refers to the diameter around the outside of the hose at the connection. It is different from the hose's internal bore size. The classic fuel-hose applications reference a 5 mm hose bore; confirm the actual hose outside diameter and original fitting rather than selecting a clamp solely from the internal hose size.

Common reasons to replace

  • Damaged screw mechanism: damaged drive engagement or adjustment threads can prevent controlled clamping.
  • Deformed band: a distorted clamp may not seat evenly around the hose.
  • Corrosion: deterioration can make adjustment difficult or compromise the retaining hardware.
  • Missing or incorrect clamp: restore the specified original connection after previous hose work.
  • Hose replacement: inspect and renew the clamp when the original hose or fitting is serviced.

A leaking or loose connection requires inspection of the hose and fitting as well as the clamp. New hardware cannot repair a cracked hose, damaged nipple or mismatched hose diameter. Replace damaged connection components and use the original clamping arrangement appropriate to the serviced circuit.

Fitment data sheet

Vehicle Model years Engine Configuration Application restrictions
Audi A4 1997–2001 1.8L turbo gasoline B5 Sedan / Avant; front-wheel drive or quattro; Avant from 1998; Transmission independent at the identified hose connection Original small hose clamp position specifying N-024-528-1. Confirm the hose outside diameter, fitting and original clamp specification; not suitable for every fuel, vacuum or cooling hose on the vehicle.
Audi A4 2002–2005 1.8L turbo gasoline B6 Sedan / Avant; front-wheel drive or quattro; 2005 B6 body only; Transmission independent at the identified hose connection Original small hose clamp position specifying N-024-528-1. Confirm the hose outside diameter, fitting and original clamp specification; not suitable for every fuel, vacuum or cooling hose on the vehicle.
Audi A4 2003–2006 1.8L turbo gasoline B6 Cabriolet; front-wheel drive or quattro; Transmission independent at the identified hose connection Original small hose clamp position specifying N-024-528-1. Confirm the hose outside diameter, fitting and original clamp specification; not suitable for every fuel, vacuum or cooling hose on the vehicle.
Audi A6 2001–2004 2.7L twin-turbo V6 gasoline C5 Sedan / Avant; quattro; original T7Z assembly; Transmission independent at the identified hose connection Original small hose clamp position specifying N-024-528-1. Confirm the hose outside diameter, fitting and original clamp specification; not suitable for every fuel, vacuum or cooling hose on the vehicle.
Audi allroad 2001–2005 2.7L twin-turbo V6 gasoline C5 Wagon; quattro; original T7Z assembly; Transmission independent at the identified hose connection Original small hose clamp position specifying N-024-528-1. Confirm the hose outside diameter, fitting and original clamp specification; not suitable for every fuel, vacuum or cooling hose on the vehicle.
Volkswagen Beetle 1961–1977 Gasoline; original small fuel hose connection Classic air-cooled Sedan; Transmission independent at the identified hose connection Original small hose clamp position specifying N-024-528-1. Confirm the hose outside diameter, fitting and original clamp specification; not suitable for every fuel, vacuum or cooling hose on the vehicle.
Volkswagen Beetle 1961–1979 Gasoline; original small fuel hose connection Classic air-cooled Convertible; Transmission independent at the identified hose connection Original small hose clamp position specifying N-024-528-1. Confirm the hose outside diameter, fitting and original clamp specification; not suitable for every fuel, vacuum or cooling hose on the vehicle.
Volkswagen Bus 1961–1967 Gasoline; original small fuel hose connection Split-window Bus; Transmission independent at the identified hose connection Original small hose clamp position specifying N-024-528-1. Confirm the hose outside diameter, fitting and original clamp specification; not suitable for every fuel, vacuum or cooling hose on the vehicle.
Volkswagen Bus 1968–1979 Gasoline; original small fuel hose connection Bay-window Bus; Transmission independent at the identified hose connection Original small hose clamp position specifying N-024-528-1. Confirm the hose outside diameter, fitting and original clamp specification; not suitable for every fuel, vacuum or cooling hose on the vehicle.
Volkswagen Karmann Ghia 1961–1974 Gasoline; original small fuel hose connection Coupe or Convertible; Transmission independent at the identified hose connection Original small hose clamp position specifying N-024-528-1. Confirm the hose outside diameter, fitting and original clamp specification; not suitable for every fuel, vacuum or cooling hose on the vehicle.
Volkswagen Type 3 1966–1973 Gasoline; original small fuel hose connection Squareback or Fastback; original hose connection only; Transmission independent at the identified hose connection Original small hose clamp position specifying N-024-528-1. Confirm the hose outside diameter, fitting and original clamp specification; not suitable for every fuel, vacuum or cooling hose on the vehicle.

Installation and ordering guidance

Confirm the vehicle identification number and original hose connection diagram. The table identifies restricted catalog applications for this original clamp number. It does not imply that every hose on a listed vehicle uses an 8–12 mm clamp.

Follow the service procedure for the affected circuit before disconnecting the hose. Inspect the hose end and fitting, position the hose at the required engagement depth and place the clamp at the specified retention area. Tighten according to the prescribed connection procedure and avoid overtightening, which can damage the hose or fitting.

Use the correct clamp design if the original connection requires a particular retention arrangement. After service, perform the applicable leak and functional checks for that circuit and confirm that the hose is securely seated. Count the clamps required at both ends of the serviced hose and order the necessary quantity.
