OVERVIEW
Original sealing ring for specified transmission fluid plugs

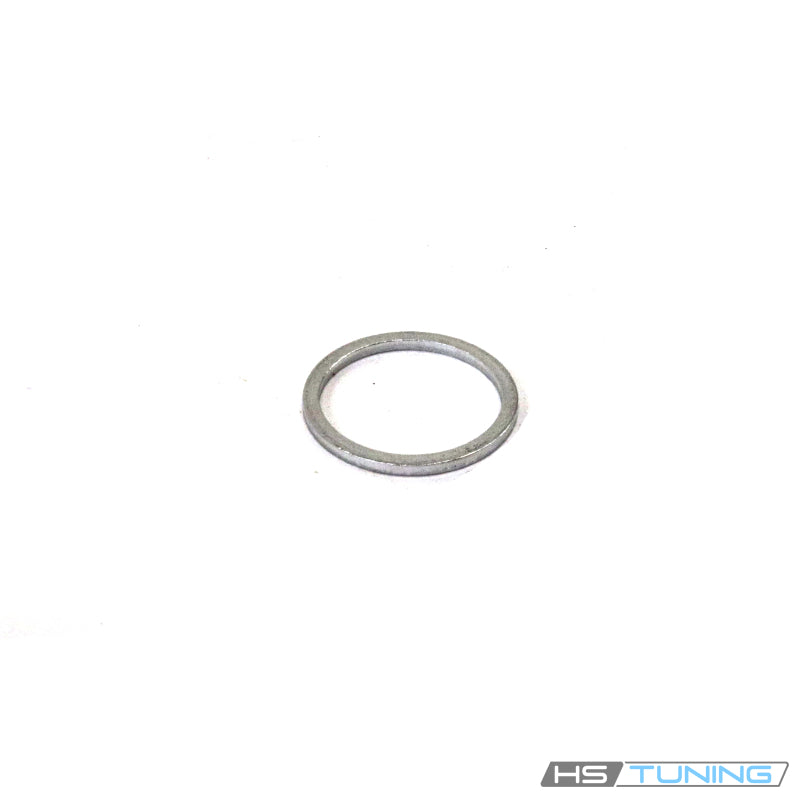

The N-043-809-2 Genuine VW/Audi transmission drain and fill plug seal fits the original fluid-plug sealing positions that specify this exact ring. It provides the sealing interface between the matching plug and housing. Renewing a removed or damaged seal during fluid service helps restore the intended joint, provided the plug, housing and sealing seat are also in serviceable condition.
Technical details
- Original number: N-043-809-2 / N0438092.
- Component: separate annular plug sealing ring.
- Function: seal the specified original transmission or driveline fluid-plug interface.
- Quantity: one ring per item ordered.
- Not included: drain plug, fill plug, fluid, filter and service tools.
Confirm the installed gearbox or driveline housing and the plug specification. A vehicle model can use different transmissions and several different fluid plugs. This ring should not be selected by model membership or visual resemblance alone. Ring compatibility depends on the specified plug and sealing-seat geometry.
Common reasons to replace
- Seal removed during service: replace the ring where the factory fluid-service procedure specifies a new seal.
- Flattened or distorted sealing surface: a previously compressed, bent or damaged ring may no longer reproduce the intended sealing interface.
- Damage during plug removal: a nicked or gouged ring should not be used to complete a serviced joint.
- Leak at the plug: inspect the seal, plug, housing threads and sealing seat before deciding which component requires replacement.
- Incorrect ring fitted previously: restore the exact original number and plug arrangement instead of using a visually similar substitute.
A leak may come from the plug seat, housing or another nearby component. Tightening the plug further or installing a new ring cannot repair a damaged sealing seat or stripped housing thread. Diagnose the actual source and correct any damaged components before reassembly.
Fitment data sheet
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A3 | 2006–2013 | 2.0L turbo gasoline | 8P Sportback; front-wheel drive; original gearbox/plug specification; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Audi A3 | 2009–2013 | 2.0L turbo gasoline | 8P Sportback; quattro; original gearbox/plug specification; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Audi A3 | 2010–2013 | 2.0L TDI diesel | 8P Sportback; front-wheel drive; original gearbox/plug specification; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Audi A3 | 2006–2009 | 3.2L VR6 gasoline | 8P Sportback; quattro; original gearbox/plug specification; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Audi S3 | 2015–2020 | 2.0L turbo gasoline | 8V Sedan; quattro; confirmed original dual-clutch plug-seal application; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Audi TT RS | 2018–2022 | 2.5L turbo five-cylinder gasoline | 8S Coupe; quattro; original gearbox/plug specification; 7-speed S tronic; match original gearbox drain/fill plug | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Audi RS3 | 2018–2020 | 2.5L turbo five-cylinder gasoline | 8V Sedan; quattro; source specifically lists 2018-onward configuration; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Audi TT | 2000–2005 | 1.8L turbo gasoline, 180 hp | Mk1 Coupe / Roadster; quattro; Roadster from 2001; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Audi TT | 2001–2006 | 1.8L turbo gasoline, 225 hp | Mk1 Coupe / Roadster; quattro; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen GTI | 2002 | 1.8L turbo gasoline | Mk4 337 Edition Hatchback; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen GTI | 2003 | 1.8L turbo gasoline | Mk4 20th Anniversary Hatchback; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Beetle | 2012–2019 | 2.0L turbo gasoline | A5 Coupe / Convertible; Convertible from 2013; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Golf | 2015 | 2.0L TDI diesel | Mk7 Hatchback; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen GTI | 2018–2021 | 2.0L turbo gasoline | Mk7.5 Hatchback; front-wheel drive; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Golf R | 2015–2019 | 2.0L turbo gasoline | Mk7 / Mk7.5 Hatchback; 4Motion; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Jetta GLI | 2002–2004 | 2.8L 24-valve VR6 gasoline | Mk4 Sedan; excludes 1.8T GLI; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Jetta GLI | 2004–2005 | 1.8L turbo gasoline | Mk4 Sedan; 2004.5-onward 1.8T configuration; 2005 old body only; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Jetta GLI | 2006–2009 | 2.0L turbo gasoline | Mk5 Sedan; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Jetta | 2005–2006 | 1.9L TDI diesel | Mk5 Sedan; 2005 new body only; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Jetta | 2009–2010 | 2.0L TDI diesel | Mk5 Sedan; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Jetta SportWagen | 2009–2014 | 2.0L TDI diesel | Mk5 / Mk6 Wagon; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Jetta | 2011–2015 | 2.0L TDI diesel | Mk6 Sedan; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Jetta GLI | 2013–2018 | 2.0L turbo Gen3 gasoline | Mk6 Sedan; 2013.5 Gen3 engine introduction; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Jetta GLI | 2019–2025 | 2.0L turbo Gen3 gasoline | Mk7 Sedan; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen Passat | 2006–2010 | 2.0L turbo gasoline | B6 Sedan / Wagon; front-wheel drive; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
| Volkswagen R32 | 2004 | 3.2L VR6 gasoline | Mk4 Hatchback; 4Motion; Gearbox and drain/fill plug code dependent; use only the original sealing position specifying this number | Match the installed transmission/driveline housing and plug to N-043-809-2. Vehicle membership alone does not establish compatibility with every gearbox or fluid plug. |
Fluid-service and installation guidance
Confirm the original number using the vehicle identification number and the installed transmission or driveline unit code. Follow the repair procedure for the exact drain or fill position. Seat a new ring correctly, clean the mating surfaces without damaging them and inspect the plug before installation.
Use the specified plug tightening value rather than a generic sealing-ring torque. Follow the manufacturer’s fluid specification, level-check method and temperature requirements for the installed unit. This listing supplies a seal only and does not include the parts or instructions for a complete transmission service. Verify the repaired plug interface for leakage after the service is completed.
