OVERVIEW

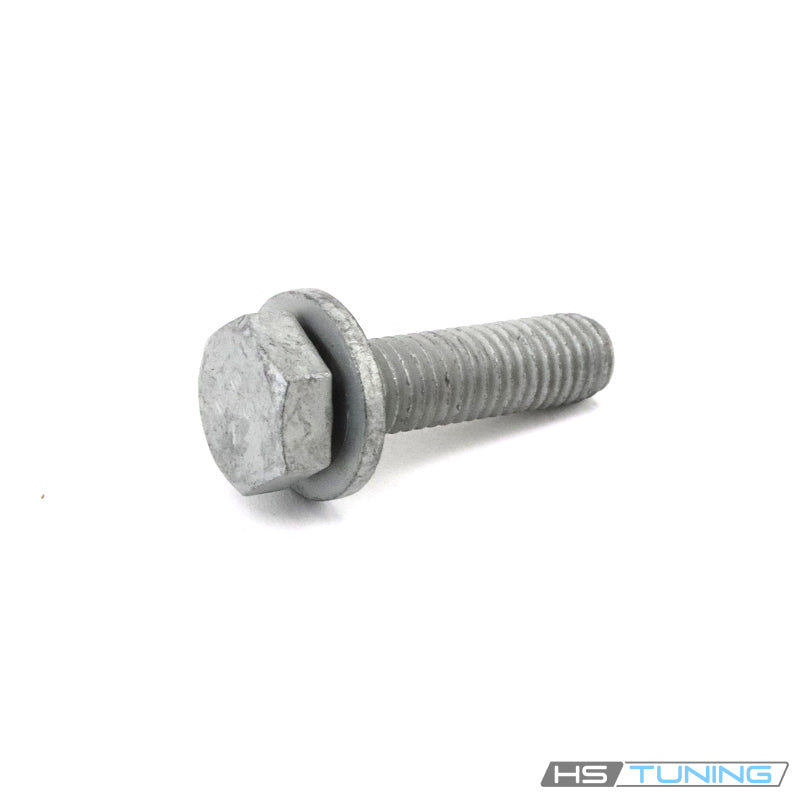

Original hex bolt with integrated washer
The N-090-316-8 Genuine VW/Audi bolt combines an external hex head with an integrated washer. Its original length and bearing arrangement are intended for the specific mounting position listed in the factory parts diagram. Applications include selected transmission mounting bracket attachments and the specified rear muffler hanger position on the B5 A4.
Technical details
- Original number: N-090-316-8 / N0903168.
- Size: M8 nominal thread diameter and 30 mm specified length.
- Head and bearing surface: external hex with an integrated washer beneath the head.
- Application: position-specific mounting hardware; match the original bolt number.
- Quantity: one bolt. Brackets, mounts, exhaust supports and other hardware are separate.
The integrated washer provides the original bearing arrangement at the attachment. Match the complete fastener specification rather than substituting any M8 bolt. Incorrect length or seating geometry can prevent the bracket from being clamped correctly even when the replacement threads into the receiving hole.
Common reasons to replace
- Rounded head: tool damage reduces reliable wrench engagement during service.
- Thread damage: cross-threading, corrosion or previous fastening damage can prevent correct installation.
- Damaged bearing surface: a deformed washer or head can prevent the fastener from seating properly.
- Missing hardware: restore the specified mounting arrangement after a previous repair.
- Mount or bracket replacement: inspect the fastener when the corresponding transmission bracket or exhaust support is removed.
A loose bracket, vibration or exhaust rattle requires diagnosis of the complete assembly. This bolt does not repair a worn mount, damaged hanger or cracked bracket. Check the receiving threads, support components and adjoining hardware before deciding which parts require replacement.
Fitment data sheet
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 1997–2001 | 1.8L turbo gasoline | B5 Sedan / Avant; quattro; Avant from 1998; Original rear muffler hanger attachment | Front bolt position of rear muffler hanger to body. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi A4 | 2002–2005 | 3.0L V6 gasoline | B6 Sedan / Avant; quattro; 2005 B6 body only; Manual transmission | Original manual transmission mounting bracket to transmission. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi A4 | 2005–2008 | 2.0L turbo gasoline | B7 Sedan; front-wheel drive; 2005 B7 body only; CVT | Original transmission mount bracket to transmission. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi A4 | 2007–2009 | 2.0L turbo gasoline | B7 Cabriolet; front-wheel drive; CVT | Original transmission mount bracket to transmission. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi A4 | 2005–2008 | 2.0L turbo gasoline | B7 Sedan / Avant; quattro; 2005 B7 body only; Original transmission assembly specifying this bolt | Original transmission mount bracket to transmission. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi A4 | 2007–2009 | 2.0L turbo gasoline | B7 Cabriolet; quattro; Original transmission assembly specifying this bolt | Original transmission mount bracket to transmission. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi A4 | 2005–2008 | 3.2L FSI V6 gasoline | B7 Sedan; front-wheel drive; 2005 B7 body only; CVT; confirm original bracket and bolt number | Original transmission mount bracket to transmission. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi A4 | 2005–2008 | 3.2L FSI V6 gasoline | B7 Sedan / Avant; quattro; 2005 B7 body only; Original transmission assembly specifying this bolt | Original transmission mount bracket to transmission. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi A4 | 2007–2009 | 3.2L FSI V6 gasoline | B7 Cabriolet; quattro; Automatic; confirm original bracket and bolt number | Original transmission mount bracket to transmission. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi S4 | 2004–2005 | 4.2L V8 gasoline | B6 Sedan / Avant; quattro; 2005 B6 body only; Match original attachment diagram | Original mounting position specifying this exact bolt. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi S4 | 2004–2006 | 4.2L V8 gasoline | B6 Cabriolet; quattro; Match original attachment diagram | Original mounting position specifying this exact bolt. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi S4 | 2005–2008 | 4.2L V8 gasoline | B7 Sedan / Avant; quattro; 2005 B7 body only; Match original attachment diagram | Original mounting position specifying this exact bolt. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi S4 | 2007–2009 | 4.2L V8 gasoline | B7 Cabriolet; quattro; Match original attachment diagram | Original mounting position specifying this exact bolt. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi RS4 | 2007–2008 | 4.2L FSI V8 gasoline | B7 Sedan; quattro; 6-speed manual; match original attachment diagram | Original mounting position specifying this exact bolt. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi RS4 | 2008 | 4.2L FSI V8 gasoline | B7 Cabriolet; quattro; 6-speed manual; match original attachment diagram | Original mounting position specifying this exact bolt. N-090-316-8 must be specified for the serviced position; other bolts in the same assembly can differ. |
| Audi A4 | 2002–2005 | 1.8L turbo gasoline | B6 sedan / Avant; front-wheel drive; Original transmission-mount bracket arrangement; match gearbox and fastener diagram | Original mounting-bracket position specifying N0903168, M8 x 30 combination bolt. 2005 B6 body only; do not apply to unrelated mounting joints or the B7 solely by year. |
| Audi A4 | 2002–2005 | 1.8L turbo gasoline | B6 sedan / Avant; quattro; Original transmission-mount bracket arrangement; match gearbox and fastener diagram | Original mounting-bracket position specifying N0903168, M8 x 30 combination bolt. 2005 B6 body only; do not apply to unrelated mounting joints or the B7 solely by year. |
| Audi A4 | 2002–2005 | 3.0L 30-valve gasoline V6 | B6 sedan; front-wheel drive; Original transmission-mount bracket arrangement; match gearbox and fastener diagram | Original mounting-bracket position specifying N0903168, M8 x 30 combination bolt. 2005 B6 body only; do not apply to unrelated mounting joints or the B7 solely by year. |
Installation and ordering guidance
Use the vehicle identification number, transmission identification and original mounting diagram to confirm the serviced position. A model can use several similar-looking bolts with different lengths and washers. For the B6 3.0L application shown, the identified transmission bracket position is restricted to the manual transmission.
Support the relevant assembly before loosening its mounting hardware. Inspect the bracket and mating threads, position the mount or hanger as specified, and start the bolt without cross-threading. Use the factory tightening procedure for that particular attachment; a universal torque value based only on the thread diameter is unsuitable.
Refit all sleeves, isolators and related hardware in their original arrangement. After service, check that the supported assembly is correctly aligned and that the repaired attachment is securely seated. Order the required quantity for the specific mounting position.
