• N-100-572-01 Genuine VW/Audi 8 by 15 hose clamp, 8 by 15 clamp identification, original product photo 1
  • N-100-572-01 Genuine VW/Audi 8 by 15 hose clamp, formed metal band, repeated original archive photo 2
  • N-100-572-01 Genuine VW/Audi 8 by 15 hose clamp, hose retaining hardware, repeated original archive photo 3

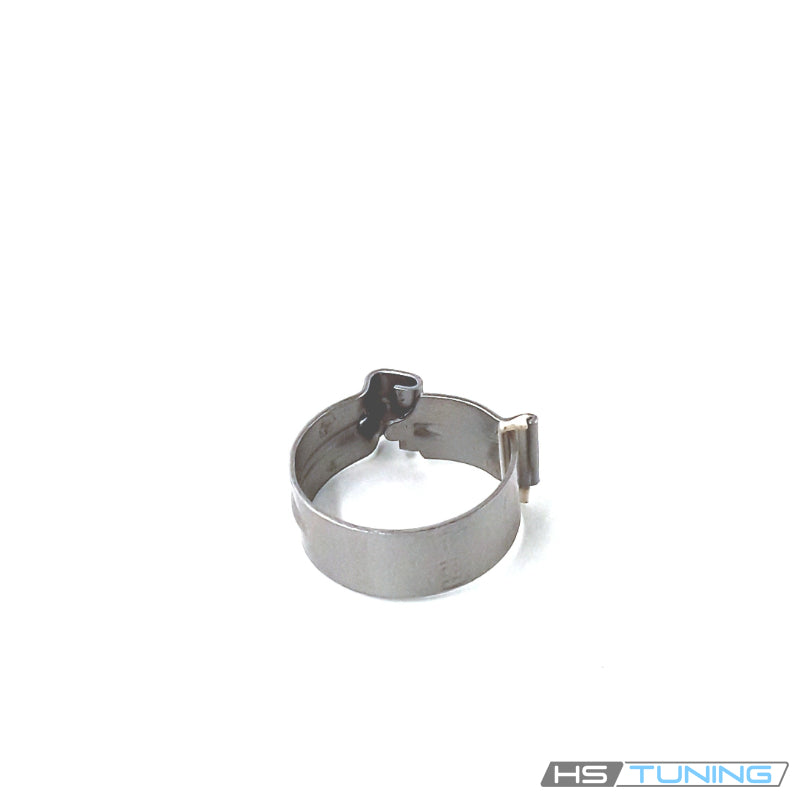

  • N-100-572-01 Genuine VW/Audi 8 by 15 hose clamp, closure detail reference, repeated original archive photo 4
  • N-100-572-01 Genuine VW/Audi 8 by 15 hose clamp, individual genuine clamp, repeated original archive photo 5
  • N-100-572-01 Genuine VW/Audi 8 by 15 hose clamp, original archive component image, repeated original archive photo 6
  • N-100-572-01 Genuine VW/Audi 8 by 15 hose clamp, factory-number clamp reference, repeated original archive photo 7
1 7

Genuine VW/Audi

N-100-572-01 Genuine VW/Audi Hose Clamp

N-100-572-01 Genuine VW/Audi Hose Clamp

$1.80 USD
$1.80 USD $1.80 USD
Sale Sold out
Shipping calculated at checkout.
In stock

N-100-572-01

View full details

OVERVIEW

Genuine clamp for the specified original hose connection

N-100-572-01 is the Genuine VW/Audi hose clamp identified by the factory designation 8×15. It secures the assigned original hose connection on the vehicle configurations below.

The factory uses different clamps throughout each hose system. Match the complete number and original connection so the replacement clamp fits the intended hose and retaining position.

Technical details

  • Complete factory number: N-100-572-01.
  • Factory specification: 8 × 15 factory clamp designation.
  • Design: formed metal hose clamp.
  • Quantity supplied: one individual clamp.

The factory designation identifies this particular clamp rather than a universal adjustment range. Check the hose connection and original clamp arrangement before installation; nearby clamps with other part numbers have different dimensions and uses.

Common reasons to replace

  • The original clamp is damaged during hose removal.
  • The clamp is distorted or does not retain the connection correctly.
  • The retaining section is damaged.
  • The original clamp is missing.
  • The applicable hose-service procedure requires replacement.

Inspect the hose, fitting and original retaining location. A clamp cannot repair a split hose, cracked fitting or damaged hose sealing surface. Determine the source of any leak before choosing replacement parts.

Vehicle fitment

The New Beetle row refers to the assigned fuel-line assembly connection. The Passat rows refer to specified cooling-system connections on the early VIN branch. Use only the original position assigned this number.

Vehicle Model years Engine Configuration Application restrictions
Volkswagen New Beetle 2007 2.5L gasoline I5 Convertible; Original fuel-tank/fuel-line clamp position Only the original N10057201 8×15 clamp position; compare the hose and original clamp.
Volkswagen Passat 2001 2.8L 30-valve gasoline V6 B5 sedan or wagon; 4Motion; Original cooling-system clamp position VIN through 3B-1-049999; original N10057201 8×15 attachment only.
Volkswagen Passat 2001 2.8L 30-valve gasoline V6 B5 sedan or wagon; front-wheel drive; Original cooling-system clamp position VIN through 3B-1-049999; original N10057201 8×15 attachment only.

Installation guidance

Follow the vehicle-specific procedure for the actual hose system. Let hot components cool and observe the required draining or depressurizing steps. Use the correct clamp tool and place the replacement at the original retaining location without damaging the hose.

Check secure hose retention and routing. Complete the appropriate leak check and any required fluid-level or system-restoration steps before returning the vehicle to service.

Ordering information

Supplied as one genuine clamp. Hoses, fittings, mounting brackets and fluids are not included. Confirm the complete factory number, original position and quantity required.
