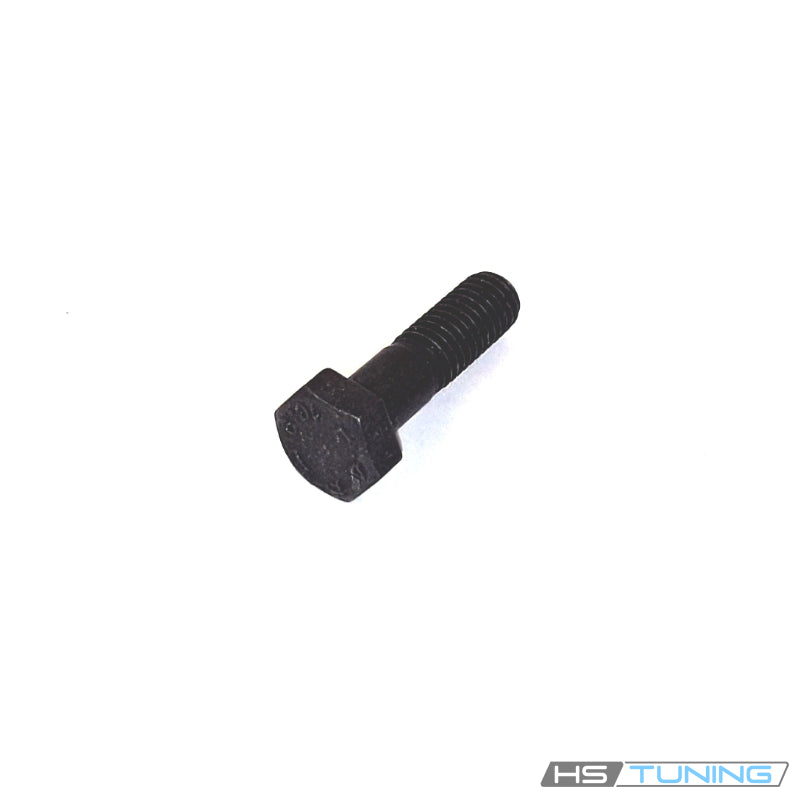

  • N-100-722-02 Genuine VW/Audi M8 by 28 by 15 steering column hex bolt, individual column bolt, repeated original archive photo 4
  • N-100-722-02 Genuine VW/Audi M8 by 28 by 15 steering column hex bolt, original head markings, repeated original archive photo 5
  • N-100-722-02 Genuine VW/Audi M8 by 28 by 15 steering column hex bolt, steering assembly hardware, repeated original archive photo 6
  • N-100-722-02 Genuine VW/Audi M8 by 28 by 15 steering column hex bolt, factory number identification, repeated original archive photo 7
1 7

Genuine VW/Audi

N-100-722-02 Genuine VW/Audi Steering Column Hex Bolt

N-100-722-02 Genuine VW/Audi Steering Column Hex Bolt

$3.76 USD
$3.76 USD $3.76 USD
Sale Sold out
Shipping calculated at checkout.
In stock

N-100-722-02

View full details

OVERVIEW

Genuine steering-column assembly hex bolt

The N-100-722-02 Genuine VW/Audi bolt is assigned to the original adjustable steering-column assembly on the configurations below. Its M8×28×15 specification identifies the particular hex-head fastener used at this attachment.

Steering columns contain several different mounting and locking fasteners. This individual hex bolt is distinct from the shear bolts listed elsewhere in the same assembly. Match the original hardware number and position rather than choosing by appearance alone.

Technical details

  • Complete factory number: N-100-722-02.
  • Factory specification: M8 × 28 × 15.
  • Design: external hexagon-head bolt with the factory partially threaded shank configuration.
  • Quantity supplied: one individual bolt.

The complete catalog specification helps distinguish the shank and thread arrangement from other M8 hardware. Correct engagement and original mounting geometry must be preserved. This bolt does not include a steering column, adjustment mechanism or a complete mounting set.

Common reasons to replace

  • The original bolt is missing during steering-column service.
  • The hex head is rounded or damaged.
  • Threads are damaged or cross-threaded.
  • The shank or head is distorted.
  • The factory procedure requires replacement of this fastener during the selected repair.

Inspect the retained column components and receiving threads according to the factory procedure. A new bolt cannot correct wear or damage inside the adjustment mechanism, universal joint or column support.

Vehicle fitment

Use only at the original steering-column attachment assigned N10072202. The Golf and GTI rows require PR 2C5 adjustable-column equipment. Separate shear bolts and other column hardware are not interchangeable with this item.

Vehicle Model years Engine Configuration Application restrictions
Volkswagen Golf 2003 2.0L gasoline inline-four Mk4 hatchback; PR 2C5 adjustable steering column; Original steering-column assembly Original PR 2C5 steering-column position assigned N10072202 M8×28×15; not the separate shear bolts.
Volkswagen Golf 2003 1.9L ALH TDI diesel inline-four Mk4 hatchback; PR 2C5 adjustable steering column; Original steering-column assembly Original PR 2C5 steering-column position assigned N10072202 M8×28×15; not the separate shear bolts.
Volkswagen GTI 2003 1.8L turbocharged gasoline inline-four Mk4 hatchback; PR 2C5 adjustable steering column; Original steering-column assembly Original PR 2C5 steering-column position assigned N10072202 M8×28×15; not the separate shear bolts.
Volkswagen GTI 2003 2.8L 24-valve VR6 gasoline Mk4 hatchback; PR 2C5 adjustable steering column; Original steering-column assembly Original PR 2C5 steering-column position assigned N10072202 M8×28×15; not the separate shear bolts.
Volkswagen New Beetle 2008 2.5L gasoline inline-five Original coupe steering-column assembly; Factory mechanical adjustable steering column Original steering-column fastener position assigned N10072202. Other column bolts and shear bolts are separate items.
Volkswagen New Beetle Convertible 2008 2.5L gasoline inline-five Original convertible steering-column assembly; Factory mechanical adjustable steering column Original steering-column fastener position assigned N10072202. Other column bolts and shear bolts are separate items.

Installation guidance

Follow the factory steering-column repair and restraint-system isolation procedure appropriate to the access required. Support the column, preserve alignment and use the specified tool and tightening procedure for the original attachment.

Confirm secure mounting and correct adjustment operation. Complete the factory steering and restraint-system checks required after the repair. Do not use a tightening specification from a nearby shear bolt or another M8 connection.

Ordering information

Supplied as one genuine bolt. Column, brackets, shear bolts and additional hardware are not included. Confirm the exact original part number and required quantity before ordering.
