OVERVIEW
Genuine speed nut for the original underbody attachment

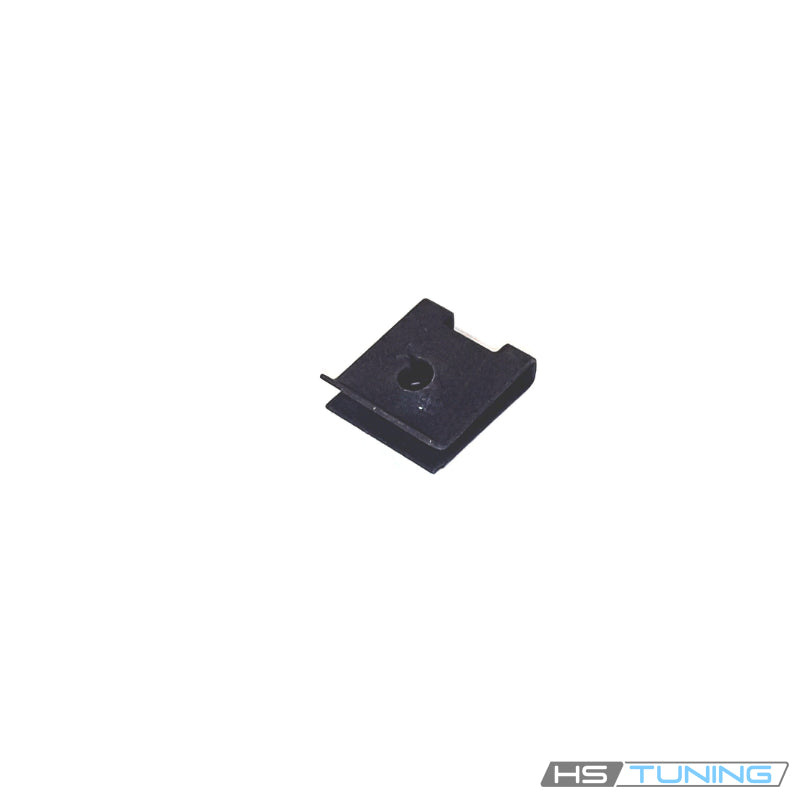

The N-101-941-04 Genuine VW/Audi speed nut provides the receiving attachment for the assigned underbody trim screw on the Q5 configurations below. The factory catalog identifies this clip nut as 4.8×18.6×16.
Underbody trim uses several different clip nuts, screws and plastic retainers. Match the complete factory number and original receiving location. This part is one clip nut rather than an undertray, panel, screw or full attachment kit.
Technical details
- Complete factory number: N-101-941-04.
- Factory specification: 4.8 × 18.6 × 16.
- Design: formed clip-on speed nut for the original trim attachment.
- Quantity supplied: one individual speed nut.
The nominal catalog dimensions identify the clip and associated screw size; they are not packaged shipping dimensions. Similar-looking speed nuts can have different reach, opening geometry or retaining profiles and may not locate the screw correctly.
Common reasons to replace
- The original speed nut is missing after underbody service.
- The clip is bent and does not grip its receiving edge.
- The screw-receiving feature is stripped or damaged.
- Corrosion or physical damage has weakened the clip.
- An incorrect clip was fitted during a previous repair.
Inspect the trim mounting tab, receiving edge and mating screw before installation. A new speed nut cannot repair a torn panel tab or a damaged mounting bracket. Replace other damaged components as required.
Vehicle fitment
Use only at the original underbody attachment assigned N10194104. Other speed nuts in the same catalog can share a nominal size but have different factory numbers and mounting positions.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi Q5 | 2014 | 2.0L TFSI gasoline inline-four | 8R quattro SUV; PR K4H; Original underbody trim mounting arrangement | Original underbody trim position assigned N10194104, nominal 4.8×18.6×16; K4H closed-body configuration. Distinct from neighboring N10433701 speed nuts. |
| Audi Q5 | 2014 | 3.0L supercharged TFSI gasoline V6 | 8R quattro SUV; PR K4H; Original underbody trim mounting arrangement | Original underbody trim position assigned N10194104, nominal 4.8×18.6×16; K4H closed-body configuration. Distinct from neighboring N10433701 speed nuts. |
| Audi Q5 | 2014 | 3.0L TDI diesel V6 | 8R quattro SUV; PR K4H; Original underbody trim mounting arrangement | Original underbody trim position assigned N10194104, nominal 4.8×18.6×16; K4H closed-body configuration. Distinct from neighboring N10433701 speed nuts. |
| Audi Q5 | 2014 | 2.0L TFSI gasoline-electric hybrid | 8R quattro Hybrid SUV; PR K4H; Original underbody trim mounting arrangement | Original underbody trim position assigned N10194104, nominal 4.8×18.6×16; K4H closed-body configuration. Distinct from neighboring N10433701 speed nuts. |
Installation guidance
Follow the factory underbody access and vehicle-support procedure. Remove the damaged clip without damaging its receiving edge. Fit the correct replacement in its original orientation, align the trim and start the specified screw without cross-threading.
Confirm the clip is retained and the panel is secure with the required clearance from moving and hot components. Reinstall the remaining original retainers and tighten the mating screw using the attachment-specific procedure.
Ordering information
Supplied as one genuine speed nut. Mating screw, trim panels, brackets and a complete hardware set are not included. Confirm the original factory number and quantity required.
