OVERVIEW

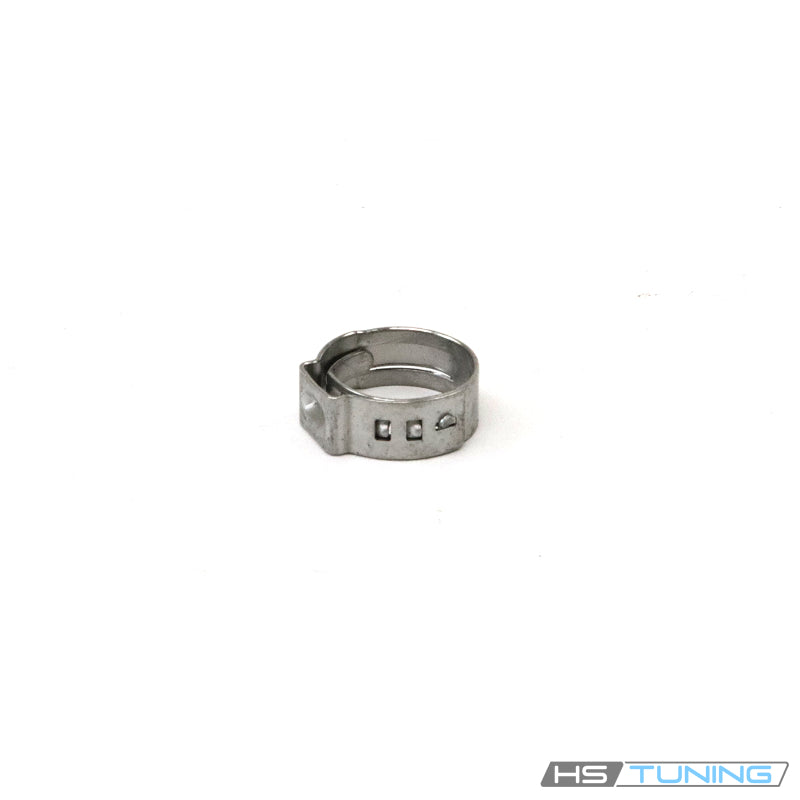

Genuine VW/Audi purge valve hose clamp, part number N-101-992-01. This original clamp retains the specified hose connection at the purge valve on the confirmed configuration below. One clamp is supplied.
Technical details
- Original number: N-101-992-01 / N10199201.
- Published nominal catalog dimensions: 15.7 x 7 x 0.6 mm.
- Metal band with a formed closure, as pictured.
- Application: specified purge valve hose attachment.
- Purge valve, hoses and other clamps are separate.
The purge valve is part of the fuel vapor control system. Its hose connections must be correctly retained at their fittings. This clamp secures the assigned connection; it does not control purge flow or replace the valve.
The correct clamp size and closure arrangement must match the fitted hose and connection. Other nearby hoses can use different clamp diameters. Select by original number and mounting position rather than assuming every purge-system connection uses the same hardware.
Common reasons to replace
Inspect the clamp when removing the purge valve or servicing a hose connection. Replace missing hardware, a damaged closure, deformation or corrosion that prevents secure installation. Renew a removed clamp wherever the factory procedure or closure design requires replacement.
Previous repairs can leave a clamp that is incorrectly sized or installed away from the prescribed position. Check that the hose is properly seated and that the clamp matches the connection. Extra tightening or a different improvised clamp is not a repair for a damaged hose or fitting.
Fuel-vapor system faults, abnormal idle or an emissions warning require diagnosis of the complete system. A replacement clamp cannot repair a failed purge valve, split hose, damaged fitting or fault elsewhere in the vapor circuit. Correct the diagnosed condition before reassembly.
Installation and service notes
Follow the factory purge valve and hose procedure for the exact engine and fitted system. Observe the prescribed precautions for opening fuel-vapor connections and protect nearby components during service.
Identify the assigned clamp and inspect the hose, fitting and retention area before fitting new hardware. A hose that is hardened, split or distorted should be addressed according to the repair procedure. Obtain the hose or valve separately where required.
Seat the hose fully at its designated connection and position the clamp as prescribed. Use the correct tool and closure method for this band design. Do not attempt to adjust it as though it were a screw-type hose clamp.
Ensure the closure is correctly engaged and that the clamp is not twisted, over the wrong section of the fitting or trapping adjacent components. Do not use the clamp to compensate for a mismatched hose diameter or an incorrectly fitted valve.
Where an updated valve, replacement hose assembly or aftermarket component is fitted, confirm the verified hardware requirements for that exact arrangement. The original number does not establish compatibility with every replacement hose design.
After assembly, restore the specified hose routing and complete the required vapor-system checks. Confirm the serviced connection is securely retained and that no hose is kinked or rubbing surrounding components. This listing supplies one clamp; obtain the remaining service components separately.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen GTI | 2006–2008 | 2.0L turbocharged FSI gasoline, BPY | Mk5 hatchback, front-wheel drive; 6-speed manual | Original purge valve hose connection requiring N10199201. Match fitted hose, fitting and assigned clamp position. Other hose sizes and replacement assemblies may require different clamps. One clamp supplied. |
| Volkswagen GTI | 2006–2008 | 2.0L turbocharged FSI gasoline, BPY | Mk5 hatchback, front-wheel drive; 6-speed DSG | Original purge valve hose connection requiring N10199201. Match fitted hose, fitting and assigned clamp position. Other hose sizes and replacement assemblies may require different clamps. One clamp supplied. |
Confirm N10199201 at the original purge valve hose connection. One clamp supplied.
