OVERVIEW
Correct flange bolt for the original suspension attachment

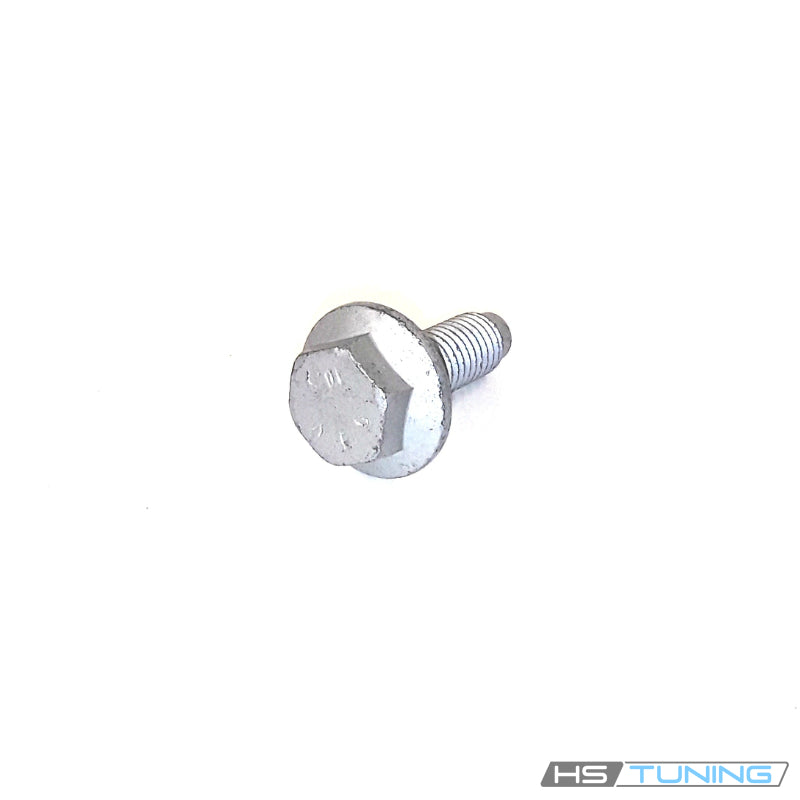

N-102-006-02 is a Genuine VW/Audi M10 x 30 hex-head flange bolt used in the specified original front suspension assemblies. Its integral collar provides the intended contact surface at the assigned fastening point.
The factory catalog changes this hardware at a defined production and VIN boundary on the B7 sedan and Avant. Matching the complete number and chassis details is essential even when another bolt shares the same M10 x 30 nominal size.
Technical details
- Complete factory number: N-102-006-02.
- Factory specification: M10 x 30 mm hex-head bolt with integral flange.
- Design: External six-sided head and broad collar; match the original joint and factory hardware revision.
- Quantity supplied: one individual bolt; washers, brackets and suspension components are not included.
M10 x 30 gives the nominal thread diameter and fastener length. No unverified torque value, thread pitch or shipping measurement is supplied.
Common reasons to replace
- Damaged threads or a bent bolt found when servicing the original suspension attachment.
- Rounded hex-head flats or a damaged collar seating surface.
- A missing fastener or an incorrect earlier substitute discovered during repair.
Inspect the mounting component, receiving threads and specified washer arrangement. A replacement bolt alone will not correct a distorted mounting plate, damaged thread or worn suspension joint.
Vehicle fitment
The following entries retain the original engine, drivetrain, body and VIN restrictions. Do not extend the early B7 bolt specification to a later vehicle solely because its model year appears in a shared catalog.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 2005–2007 | 2.0L turbocharged or 3.2L V6 gasoline | B7 sedan, quattro; Original configuration | Original front-axle hardware, PR 1X1; B7 VIN from 8E-5-400001 through 8E-7-015000, production 2004-11 through 2006-05. Later VINs use different hardware. |
| Audi A4 Avant | 2005–2007 | 2.0L turbocharged or 3.2L V6 gasoline | B7 wagon, quattro; Original configuration | Original front-axle hardware, PR 1X1; VIN from 8E-5-400001 through 8E-7-015000, production 2004-11 through 2006-05. Later VINs excluded. |
| Audi S4 | 2005–2007 | 4.2L V8 gasoline, PR T79 | B7 sedan, quattro; Original configuration | Original front-axle hardware; B7 only, production from 2004-11 through 2006-05 and VIN through 8E-7-015000. Later VINs excluded. |
| Audi S4 Avant | 2005–2007 | 4.2L V8 gasoline, PR T79 | B7 wagon, quattro; Original configuration | Original front-axle hardware; B7 only, production from 2004-11 through 2006-05 and VIN through 8E-7-015000. Later VINs excluded. |
| Audi S4 Cabriolet | 2006 | 4.2L V8 gasoline, PR T79 | B6 convertible, quattro; Original configuration | Original front-axle attachment specifying N-102-006-02; only the T79 engine branch. Verify original Cabriolet chassis hardware. |
Installation guidance
Support the suspension assembly as directed by the factory repair procedure. Preserve the specified hardware arrangement, start the bolt without cross-threading, and use the tightening sequence and replacement rules for the exact joint.
Check the vehicle identification and production boundary before installation. Complete any required suspension alignment and attachment checks after the repair.
Ordering information
New and unused inventory. Sold individually under complete part number N-102-006-02. Confirm the original fastening location, VIN and quantity before ordering.
