OVERVIEW
Genuine spring-band clamp for the assigned small hose

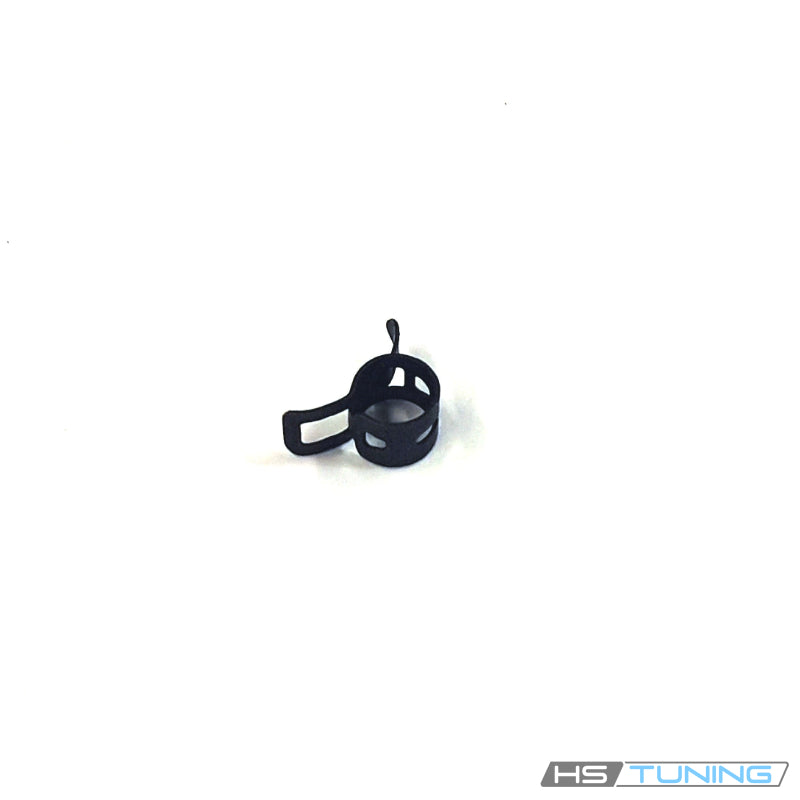

N-102-793-01 is the Genuine VW/Audi spring-band hose clamp with the nominal factory designation 8×6. It retains the original small-hose connection specified in the fitment table.
The spring-band design provides retaining force through the shaped band. Match the complete number and actual hose position; the surrounding intake and emissions assemblies contain clamps of several sizes.
Technical details
- Complete factory number: N-102-793-01.
- Factory specification: 8 × 6 factory designation.
- Design: spring-band hose clamp with tool-engagement tabs.
- Quantity supplied: one individual clamp.
The original clamp size and hose arrangement must be preserved. A visually similar clamp can apply the wrong retention or fail to seat correctly. This listing supplies one clamp rather than a hose, valve, pump or complete vacuum-line kit.
Common reasons to replace
- The original clamp is missing.
- The band or operating tabs are damaged.
- The clamp is distorted after removal.
- The original clamp no longer holds the hose securely.
- The applicable hose-service procedure requires replacement.
Inspect the hose and fitting for splits, hardening or damage before replacing hardware. A new clamp cannot repair a deteriorated hose or cracked fitting, and it does not diagnose an intake or emissions-system fault by itself.
Vehicle fitment
Observe the engine, original connection and production restrictions. The Cabrio entry is limited to the stated earlier production branch; other model years shown in a catalog heading are not automatically included.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Jetta | 1999 | 2.0L gasoline I4; AEG | Mk4 sedan; Original emissions-system small-hose connection | Mk4 VIN from 9M-X-000001; AEG engine; original N10279301 clamp position. |
| Volkswagen Passat | 2002 | 4.0L gasoline W8; PR M3E | B5.5 sedan or wagon; 4Motion; Original secondary-air-system small-hose connection | W8 engine; original N10279301 8×6 clamp position only. |
| Volkswagen R32 | 2004 | 3.2L gasoline VR6; PR D9J | Mk4 hatchback; 4Motion; Original intake/vacuum-system small-hose connection | Original N10279301 8×6 clamp position; confirm actual hose. |
| Volkswagen Cabrio | 1999–2000 | 2.0L gasoline I4 | Convertible; Original secondary-air-system small-hose connection | Production from December 1, 1998 through June 1, 2000; VIN through 1V-Y-899000; original N10279301 position. |
Installation guidance
Follow the vehicle-specific hose access procedure. Use the correct spring-clamp tool, support the hose and fitting, and position the clamp at the original retaining location. Avoid overstretching the band or damaging the hose surface.
Confirm secure hose seating, correct routing and clearance from moving or hot components. Complete the relevant leak and functional checks for the serviced system.
Ordering information
One genuine spring-band clamp is supplied. Hoses, fittings, valves and other retaining hardware are not included. Confirm the complete factory number, application and required quantity.
