OVERVIEW
Original M6x20 combination fastener for the specified joint

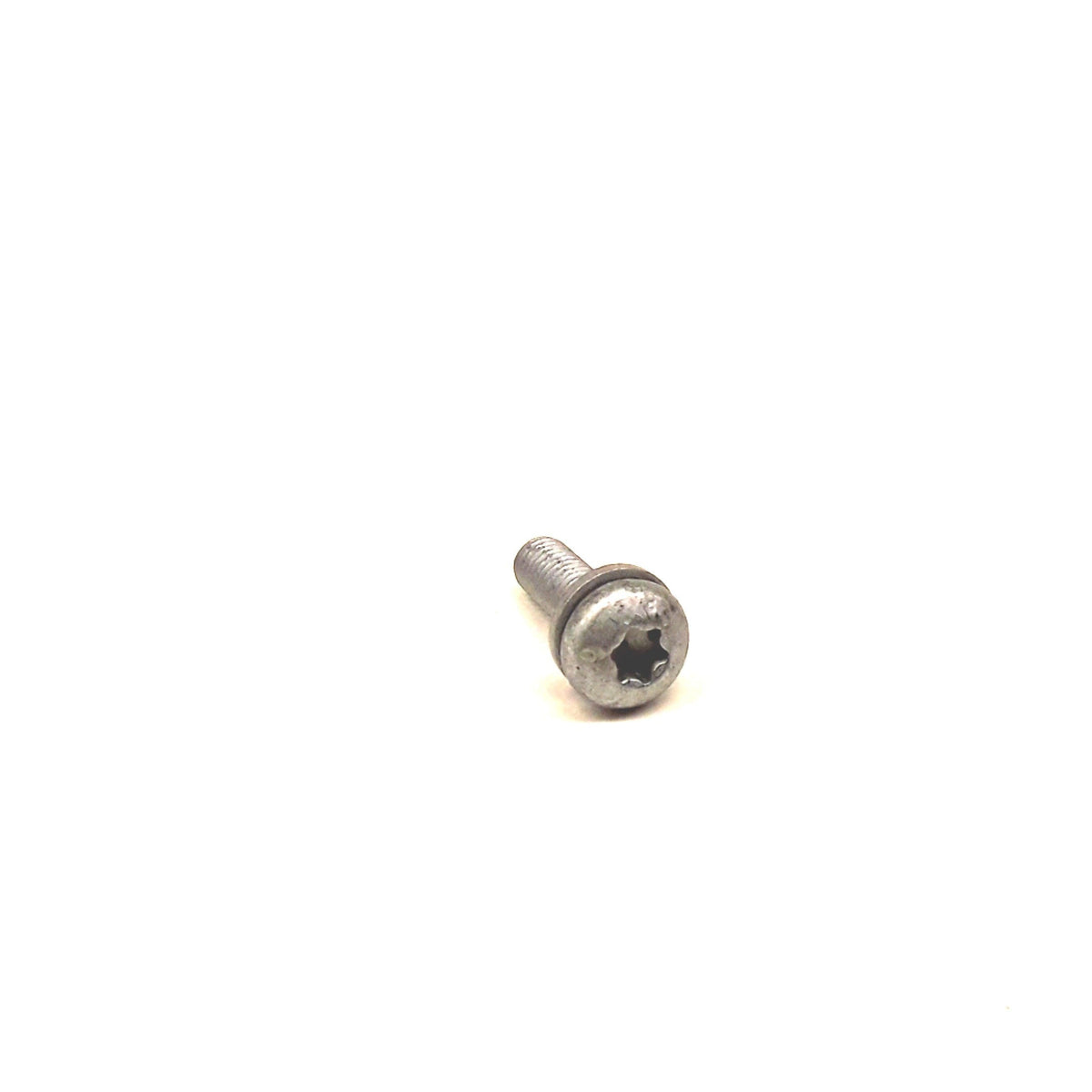

N-103-471-03 is the Genuine VW/Audi M6x20 combination bolt used at the specified original mounting positions. The rounded head has an internal six-lobe drive and a captive washer that distributes the clamp load across the assigned component.
Correct fastener length, head form and washer arrangement help the original joint clamp as intended. This bolt is used in several different assemblies; the correct replacement depends on the specific cataloged mounting point.
Technical details
- Complete factory number: N-103-471-03.
- Factory specification: M6 × 20 combination bolt with internal six-lobe drive.
- Design: rounded head, captive washer and threaded shank, as pictured.
- Quantity supplied: one individual bolt.
One individual bolt is supplied. Brackets, refrigerant lines, seals, spoiler and other fasteners are separate. Match the original joint and complete part number rather than choosing a bolt by thread diameter alone.
Common reasons to replace
- The drive recess or threads are damaged.
- The captive washer or head is distorted.
- The original bolt is missing or has been replaced with incorrect hardware.
- The applicable repair procedure requires renewal when the joint is opened.
Inspect the female threads, mating bracket and seating surface before assembly. Correct fasteners cannot compensate for stripped threads, cracked mounting features or a distorted joint.
Vehicle fitment
The listed applications identify specific original mounting positions for this bolt. It is not a substitute for every M6 fastener on these vehicles.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Touareg | 2015 | 3.6L VR6 gasoline; 3.0L supercharged Hybrid | 7P SUV | Assigned rear spoiler mounting bolt position; original M6x20 combination bolt only. |
| Volkswagen Tiguan | 2024 | 2.0L turbocharged gasoline | SUV | Assigned front A/C refrigerant line retaining bolt position; confirm original bolt and line joint. |
| Volkswagen Jetta | 2022 | 1.5L turbocharged gasoline; 2.0L turbocharged gasoline GLI | Sedan | Assigned A/C liquid-line retaining bolt position; confirm original joint and fastener. |
Installation guidance
Follow the repair procedure for the exact assembly being serviced. Use a fully seated six-lobe driver, start the threads by hand and tighten to the joint-specific factory specification. If opening a refrigerant joint, recover refrigerant and renew the specified seals using the applicable A/C procedure.
Verify that the component is seated correctly and the joint is secure. Perform any assembly-specific function or leak checks required by the repair.
Ordering information
One individual Genuine VW/Audi M6x20 combination bolt. Confirm the original complete number and mounting point. Related components and seals are separate.
