Genuine VW/Audi

Air Conditioning Hose Bolt - M8 x 40

Air Conditioning Hose Bolt - M8 x 40

SKU:N-104-154-02

Regular price $4.86 USD
Regular price $4.86 USD Sale price $4.86 USD
Sale Sold out
Shipping calculated at checkout.
In stock
Quantity
View full details

OVERVIEW

Genuine VW/Audi air-conditioning hose attachment bolt, part number N-104-154-02. This original M8 x 40 fastener is cataloged for the specified A/C hose attachments at the compressor, including the application-specific compressor connections listed below. Match the fastener to the actual hose connection before ordering.

Technical details

  • Original part number: N-104-154-02 / N10415402.
  • Published nominal size: M8 x 40.

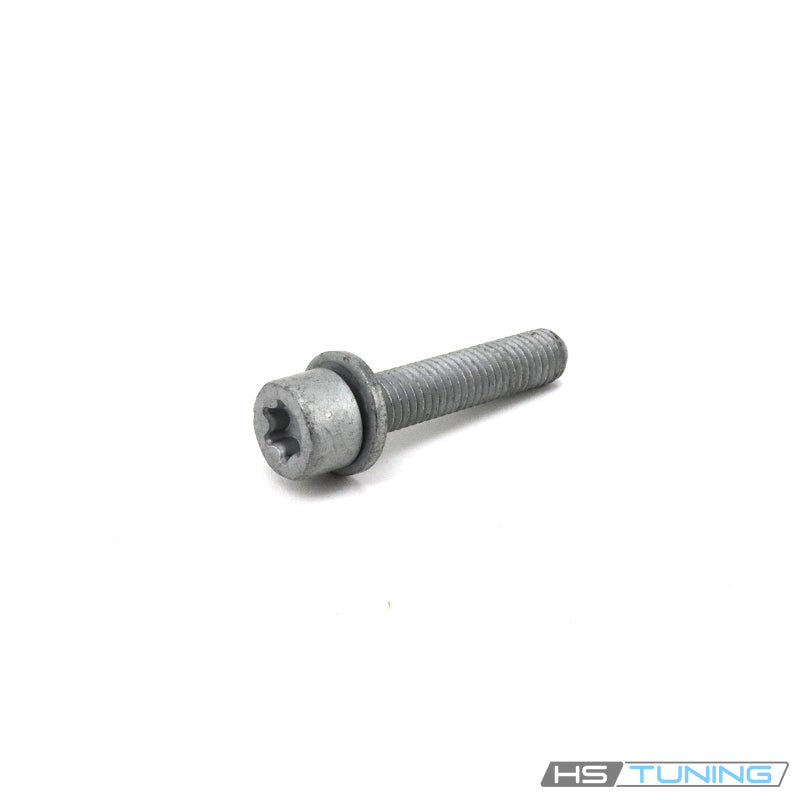

  • Socket-head bolt with a washer beneath the head, as shown in the original photograph.
  • Cataloged earlier part number: N10415401.
  • One bolt supplied. Hose, compressor, seals and refrigerant are separate.

The hose attachment must remain seated in the designed compressor connection. The correct bolt length and contact arrangement are necessary for assembling that joint as specified. Other M8 fasteners may have different lengths, heads or assigned mounting positions.

The mounting bolt retains the attachment; the separate connection seal provides the refrigerant seal. Replacing hardware alone does not repair a cracked fitting, damaged hose or deteriorated sealing ring. Inspect the complete connection when diagnosing a leak.

Common reasons to replace

Replace a missing bolt or one with damaged threads, a stripped drive recess, visible deformation or corrosion that affects serviceability. Renew hardware after removal whenever the factory procedure calls for replacement.

Compressor or hose replacement can reveal prior overtightening or driver damage. Inspect the mating threaded hole and hose attachment as well as the bolt before reassembly. Damage to either component requires attention before tightening new hardware.

Poor cooling, unusual compressor operation or refrigerant loss can have several causes. Diagnose the system and identify the faulty component instead of assuming the attachment bolt is responsible. Do not overtighten the connection to compensate for a leak.

Installation and service notes

Follow the repair procedure for the exact compressor and hose arrangement. If the refrigerant circuit must be opened, recover the refrigerant with the prescribed equipment before disconnecting the line.

Confirm the original part number at the assigned connection. Keep the hose aligned without strain and install the correct separate seal when required. Check that the connection surfaces and threaded hole are undamaged and prepared as directed.

Use the correct driver for the actual recess shown on the supplied fastener. Engage it fully, start the bolt by hand and confirm normal seating before final tightening. A bolt that binds or fails to seat can indicate incorrect hardware, poor alignment or damaged threads.

Use the tightening specification for this connection. Do not calculate torque from the M8 x 40 designation or transfer a value from a compressor bracket bolt. Follow the prescribed instructions for thread treatment and hardware replacement.

After service, complete the specified leak and functional checks. Use the refrigerant and lubricant required by the actual vehicle during any system servicing. This listing supplies one mounting bolt and contains no fluid or pressurized component.

Fitment

Vehicle Model years Engine Configuration Application restrictions
Audi RS4 2007–2008 4.2L naturally aspirated V8, BNS B7 sedan, quattro; 6-speed manual Specified compressor-to-condenser hose attachment at the compressor. Confirm N10415402 and the original hose/compressor arrangement; other bolts and seals are separate.
Audi allroad quattro 2001–2005 2.7L twin-turbocharged gasoline V6 C5 wagon, quattro; Confirm original compressor and hose connection Specified compressor-to-receiver/drier hose attachment at the compressor. Match N10415402 and the original hose/compressor arrangement; other fasteners and seals are separate.
Audi S4 2000–2002 2.7L twin-turbocharged gasoline V6 B5 sedan, quattro; 6-speed manual or 5-speed automatic Specified compressor-to-receiver/drier hose attachment at the compressor. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi S4 Avant 2001–2002 2.7L twin-turbocharged gasoline V6 B5 wagon, quattro; 6-speed manual or 5-speed automatic Specified compressor-to-receiver/drier hose attachment at the compressor. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi A4 2002–2005 1.8L turbocharged gasoline B6 sedan, FWD or quattro; 2005 B6 through VIN 8E-5-400000; Original manual, CVT or quattro automatic as equipped Specified compressor-to-receiver/drier hose attachment at the compressor. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi A4 2002–2005 3.0L 30-valve gasoline V6 B6 sedan, FWD or quattro; 2005 B6 through VIN 8E-5-400000; Original manual, CVT or quattro automatic as equipped Specified compressor-to-receiver/drier hose attachment at the compressor. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi A4 Avant 2002–2005 1.8L turbocharged gasoline or 3.0L 30-valve gasoline V6 B6 wagon, quattro; 2005 B6 through VIN 8E-5-400000; Original manual or automatic configuration Original compressor hose connection specifying N-104-154-02. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi S4 2004–2005 4.2L naturally aspirated gasoline V8 B6 sedan, quattro; 2005 B6 through VIN 8E-5-400000; 6-speed manual or 6-speed automatic Specified compressor-to-receiver/drier hose attachment at the compressor. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi S4 Avant 2004–2005 4.2L naturally aspirated gasoline V8 B6 wagon, quattro; 2005 B6 through VIN 8E-5-400000; 6-speed manual or 6-speed automatic Specified compressor-to-receiver/drier hose attachment at the compressor. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi S4 2005–2008 4.2L naturally aspirated gasoline V8 B7 sedan, quattro; 2005 B7 from VIN 8E-5-400001; 6-speed manual or 6-speed automatic Specified compressor-to-condenser hose attachment at the compressor. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi S4 Avant 2005–2008 4.2L naturally aspirated gasoline V8 B7 wagon, quattro; 2005 B7 from VIN 8E-5-400001; 6-speed manual or 6-speed automatic Specified compressor-to-condenser hose attachment at the compressor. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi A6 2000–2004 2.7L twin-turbocharged gasoline V6 C5 sedan, quattro; 6-speed manual or 5-speed automatic, as offered Specified compressor-to-receiver/drier hose attachment at the compressor. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi A6 2000–2004 4.2L naturally aspirated gasoline V8 C5 sedan, quattro; 5-speed automatic Specified compressor-to-receiver/drier hose attachment at the compressor. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi A6 1998–2001 2.8L 30-valve gasoline V6 C5 sedan, FWD or quattro; Original manual or automatic configuration Original compressor hose connection specifying N-104-154-02. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi A6 Avant 1998–2001 2.8L 30-valve gasoline V6 C5 wagon, quattro; 5-speed automatic Original compressor hose connection specifying N-104-154-02. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi A6 2002–2004 3.0L gasoline V6 C5 sedan, FWD or quattro; Original manual, FWD CVT or quattro automatic as equipped Original compressor hose connection specifying N-104-154-02. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi A6 Avant 2002–2004 3.0L gasoline V6 C5 wagon, quattro; 5-speed automatic Original compressor hose connection specifying N-104-154-02. Match the original compressor and line attachment; separate seals and other bolts are not included.
Audi S6 Avant 2002–2003 4.2L naturally aspirated gasoline V8 C5 wagon, quattro; 5-speed automatic Original compressor hose connection specifying N-104-154-02. Match the original compressor and line attachment; separate seals and other bolts are not included.

Confirm the original bolt number and exact compressor hose attachment before ordering. One bolt supplied.
