Genuine VW/Audi

Collared Hex Bolt - M10 x 55

Collared Hex Bolt - M10 x 55

SKU:N-104-684-02

Regular price $15.89 USD
Regular price $15.89 USD Sale price $15.89 USD
Sale Sold out
Shipping calculated at checkout.
In stock
Quantity
View full details

OVERVIEW

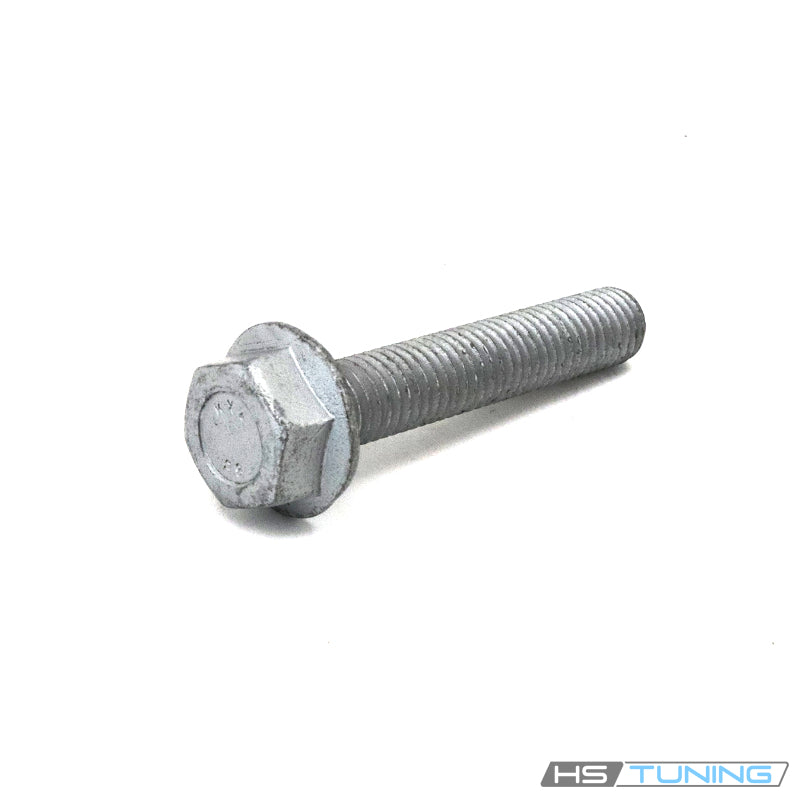

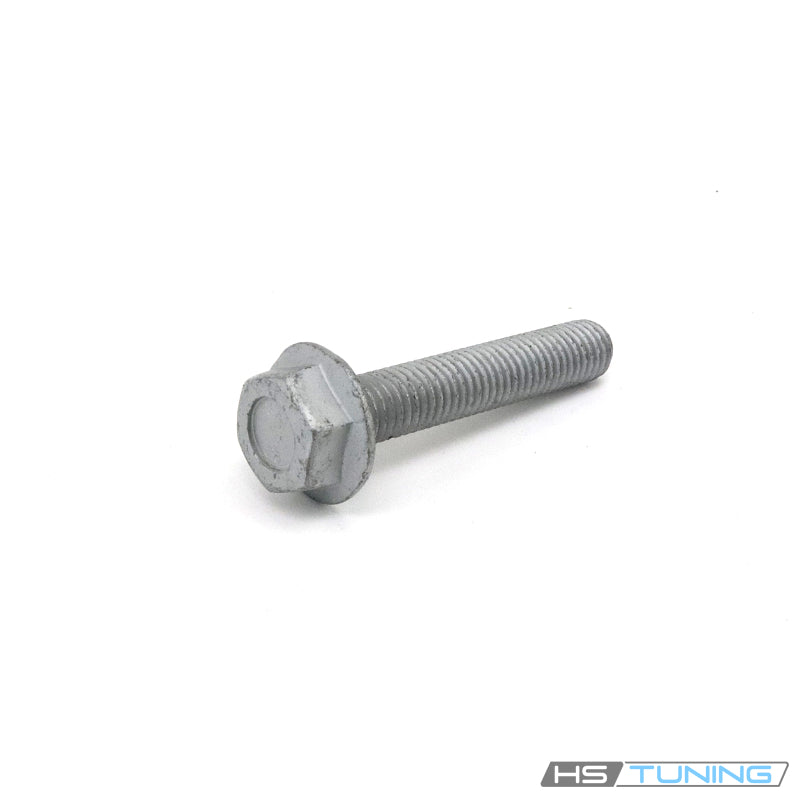

Genuine VW/Audi collared hex bolt, part number N-104-684-02. This original M10 x 55 fastener serves the specified transmission-case-to-engine attachment on the B5 S4 manual-transmission profiles and the assigned starter mounting position on the A8 L W12 profiles below. Confirm the assigned mounting position and original bolt number before ordering.

Technical details

  • Original part number: N-104-684-02 / N10468402.
  • Published nominal size: M10 x 55.
  • External hex head with an integral collar beneath the head.
  • One bolt supplied. Transmission, starter, mounting brackets, sleeves and remaining hardware are separate.
  • B5 S4 applications are restricted to the manual gearbox. A8 L W12 applications require the listed automatic gearbox codes and original starter mounting position.

The transmission housing or starter must remain correctly aligned and attached at its assigned mounting point. Each assigned mounting bolt has a specific length and head arrangement for its position. This M10 x 55 bolt is separate from the transmission mount-to-bracket hardware and other engine-to-transmission fasteners of different lengths.

A matching thread diameter does not establish interchangeability. Identify the actual bolt in the factory attachment arrangement, especially when servicing an assembly with several visually similar fasteners.

Common reasons to replace

Replace missing hardware, damaged threads, a rounded hex head, visible deformation or corrosion that affects reliable installation. Renew the fastener after removal when the relevant factory procedure requires new hardware.

Transmission removal, clutch service or other work at the engine-to-transmission connection can reveal prior tool damage or an incorrect substitute bolt. Inspect the mating threaded hole, housing contact area and remaining attachment hardware before reassembly.

A loose attachment requires checking the complete connection, housing alignment and condition of the mating components. A new bolt cannot repair a cracked housing, stripped threaded hole or damaged alignment feature. Diagnose the cause before completing the repair.

Installation and service notes

Follow the repair procedure for the exact engine and manual transmission. Support and align the components as prescribed before installing attachment hardware; do not use the bolt to pull an incorrectly aligned transmission into place.

Confirm the original number, assigned mounting position and correct length. Prepare the mating surfaces and threaded hole as directed, and install any separate alignment features or sleeves specified for the actual assembly.

Start the bolt by hand in undamaged threads. Use the correct hex socket and follow the prescribed sequence for the complete engine-to-transmission attachment.

Use the tightening specification for this position and assembly. Do not infer torque from the M10 x 55 designation or transfer a specification from a transmission mount bolt. Follow any required additional angle, thread treatment and fastener replacement instruction.

If the bolt binds or does not seat normally, check component alignment, threaded-hole condition and hardware selection before proceeding. Inspect the finished connection and complete the service checks required by the repair procedure.

This listing contains one original bolt. It does not provide a complete transmission attachment kit; other positions may require different hardware.

Fitment

Vehicle Model years Engine Configuration Application restrictions
Audi S4 2000–2002 2.7L twin-turbocharged gasoline V6, APB B5 sedan, quattro; 6-speed manual Specified transmission-case-to-engine attachment bolt. Confirm original N10468402 and assigned mounting position. Automatic transmission applications excluded from this confirmed profile.
Audi S4 Avant 2001–2002 2.7L twin-turbocharged gasoline V6, APB B5 wagon, quattro; 6-speed manual Specified transmission-case-to-engine attachment bolt. Confirm original N10468402 and assigned mounting position. Automatic transmission applications excluded from this confirmed profile.
Audi A8 L 2005–2007 6.0L gasoline W12 D3 long-wheelbase sedan; quattro; Automatic; gearbox code HKV, HLM, JBU, JNJ or JYZ Specified starter mounting bolt N10468402, M10 x 55. Confirm original gearbox and assigned starter bolt; the longer N10431703 fastener in the same set is a different part.
Audi A8 L 2008–2009 6.0L gasoline W12 D3 long-wheelbase sedan; quattro; Automatic; gearbox code JYZ or KZL Specified starter mounting bolt N10468402, M10 x 55. Confirm original gearbox and assigned starter bolt; the longer N10431703 fastener in the same set is a different part.

Confirm the original bolt number and exact transmission-case-to-engine position before ordering. One bolt supplied.
