OVERVIEW

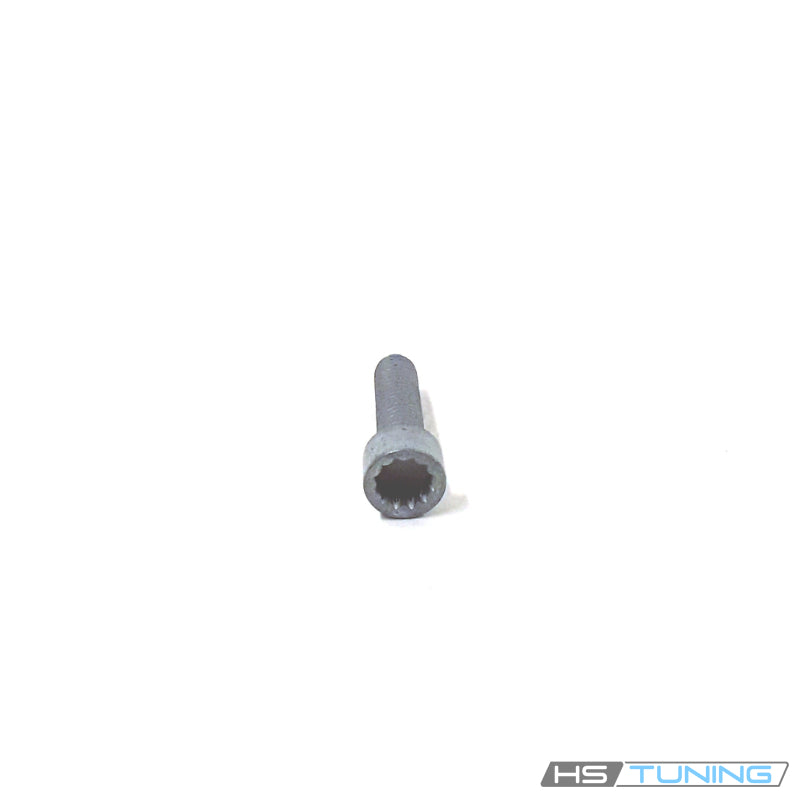

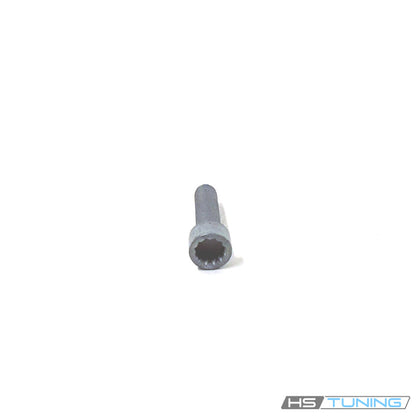

Genuine bolt for the original steering-column coupling
The N-105-184-04 Genuine VW/Audi bolt secures the assigned steering-column coupling attachment on the configurations below. Its M8×30 specification and internal multipoint drive distinguish it from the shorter column-support bolts.
The steering-column assembly uses separate fasteners for its supports, adjustment mechanism and shaft connection. Match this exact factory number and original location. This is one coupling bolt rather than a steering column, universal joint or complete hardware set.
Technical details
- Complete factory number: N-105-184-04.
- Factory specification: M8 × 30.
- Design: socket-head bolt with internal multipoint drive.
- Quantity supplied: one individual bolt.
The correct thread engagement and original coupling geometry are essential to the attachment. A nearby M8 bolt with a different length or head style is not interchangeable merely because it can enter the thread.
Common reasons to replace
- The original coupling bolt is missing during steering repair.
- The internal multipoint recess is damaged.
- Threads are damaged or cross-threaded.
- The bolt has physical damage.
- The applicable factory procedure requires a replacement bolt after the connection is released.
Inspect the shaft coupling, mating surfaces and receiving threads according to the factory procedure. A new bolt cannot correct wear in the universal joint, damaged splines or a distorted coupling.
Vehicle fitment
These rows require the original PR 2C7 electrically adjustable steering column and the coupling position assigned N10518404. Other steering-column bolts in the same vehicle have separate part numbers.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A8 | 2008 | 4.2L FSI gasoline V8 | D3 standard-wheelbase sedan; quattro; PR 2C7 electric axial and inclination-adjustable steering column | Original steering-column coupling attachment assigned N10518404 M8×30; PR 2C7 required. Not the four M8×28 column support bolts. |
| Audi A8 L | 2008 | 4.2L FSI gasoline V8 | D3 long-wheelbase sedan; quattro; PR 2C7 electric axial and inclination-adjustable steering column | Original steering-column coupling attachment assigned N10518404 M8×30; PR 2C7 required. Not the four M8×28 column support bolts. |
| Audi A8 L | 2008 | 6.0L gasoline W12 | D3 long-wheelbase sedan; quattro; PR 2C7 electric axial and inclination-adjustable steering column | Original steering-column coupling attachment assigned N10518404 M8×30; PR 2C7 required. Not the four M8×28 column support bolts. |
| Audi S8 | 2008 | 5.2L FSI gasoline V10 | D3 sedan; quattro; PR 2C7 electric axial and inclination-adjustable steering column | Original steering-column coupling attachment assigned N10518404 M8×30; PR 2C7 required. Not the four M8×28 column support bolts. |
Installation guidance
Follow the factory steering-column coupling repair procedure, including the prescribed column restraint, wheel alignment and restraint-system precautions for the access required. Align the shaft connection exactly as directed and use the correct multipoint tool and tightening specification.
Complete the specified connection, steering operation and diagnostic checks before returning the vehicle to use. Do not transfer a tightening specification from a column-support bolt or another M8 fastener.
Ordering information
Supplied as one genuine bolt. Steering column, coupling, rack, brackets and additional mounting hardware are not included. Confirm the factory number and original attachment before ordering.
