OVERVIEW
Factory internal-hex attachment hardware

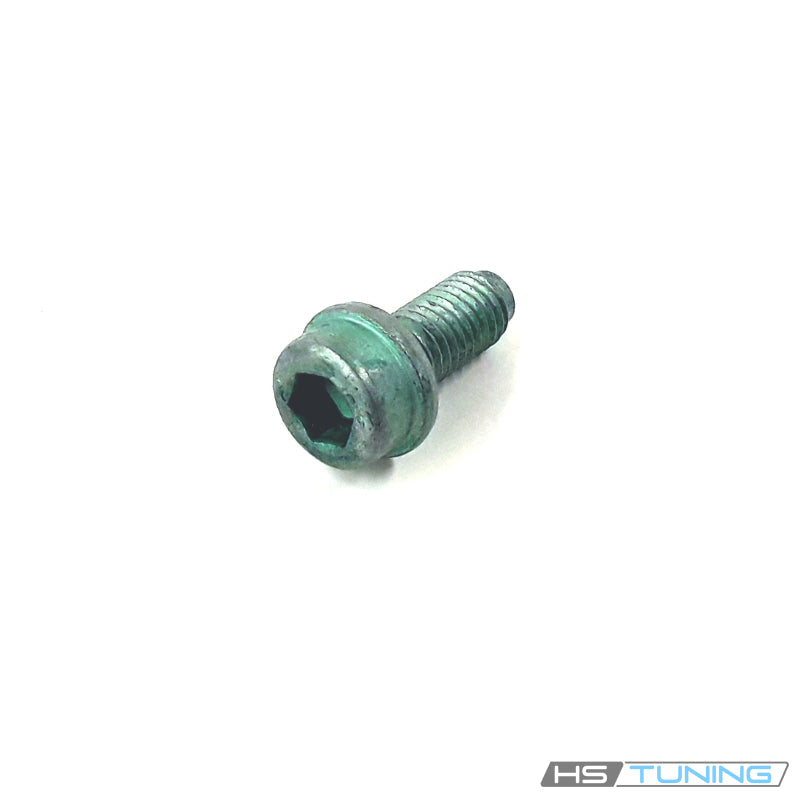

N-105-287-01 is a Genuine VW/Audi M10 x 25 cylindrical-head bolt with an internal hex drive. The confirmed Passat application serves the specified original net-partition fastening point in the vehicle's cargo-area arrangement.
A removable partition depends on sound mounting points and the correct hardware at each attachment. Match the complete bolt number and factory installation, since a cargo net or roller cover from a different arrangement can use different screws, retainers and supports.
Technical details
- Complete factory number: N-105-287-01.
- Factory specification: M10 x 25 mm hexagon socket-head bolt.
- Design: Cylindrical head with internal six-sided drive.
- Quantity supplied: one individual bolt.
Volkswagen Classic Parts identifies this exact number as M10 x 25 and lists an individual item weight of 0.025 kg. The nominal fastening length differs from the overall head-to-tip dimension.
Common reasons to replace
- A damaged hex recess that prevents controlled tightening or removal.
- Damaged threads, a bent shank or an impaired head seating surface.
- Missing original hardware or an incorrect replacement discovered during partition-mount service.
Inspect the receiving thread, bracket and surrounding attachment structure. A loose partition may also result from a worn lock, damaged retainer or loose support; replacing one bolt will not repair those components.
Vehicle fitment
These entries require the original net-partition arrangement and the specified chassis restrictions. Confirm the actual attachment before selecting the bolt.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Passat | 2000 | 2.8L V6 gasoline | B5 wagon, 4Motion, original removable net partition; Original automatic configuration | Specified original net-partition fastening point requiring N-105-287-01, from VIN 3B-XE340811. Confirm the factory net-partition mounting arrangement; excludes vehicles without this attachment. |
| Volkswagen Passat | 2001 | 2.8L V6 gasoline | Early B5 wagon, 4Motion, original removable net partition; Original automatic configuration | Original net-partition fastening point requiring N-105-287-01, through VIN 3B-1-049999. Confirm original equipment and exact mounting location; later chassis requires separate confirmation. |
Installation guidance
Support the partition mounting component before removing its hardware. Preserve the original bracket and spacer arrangement, start the bolt by hand and follow the factory tightening procedure for the joint.
Check that all mountings are secure and the partition locks correctly in its designated positions. Replace damaged retainers or mounting components as required.
Ordering information
New and unused inventory. Sold individually as N-105-287-01. Confirm VIN, original net-partition equipment, complete number and quantity before ordering.
