OVERVIEW
Genuine VW/Audi engine / transmission mount bolt, part number N-105-524-04. This hex-head flange bolt secures a matching powertrain mount and bracket. Its threaded connection provides the clamping force that holds the mounting arrangement together as the engine and transmission load the supports during acceleration, braking and normal operation.
Technical details
- Original part number: N-105-524-04 / N10552404.
- Factory catalog size: M12 x 1.5 x 70 mm: nominal thread diameter, pitch and bolt length. These are fastener specifications, not shipping dimensions.

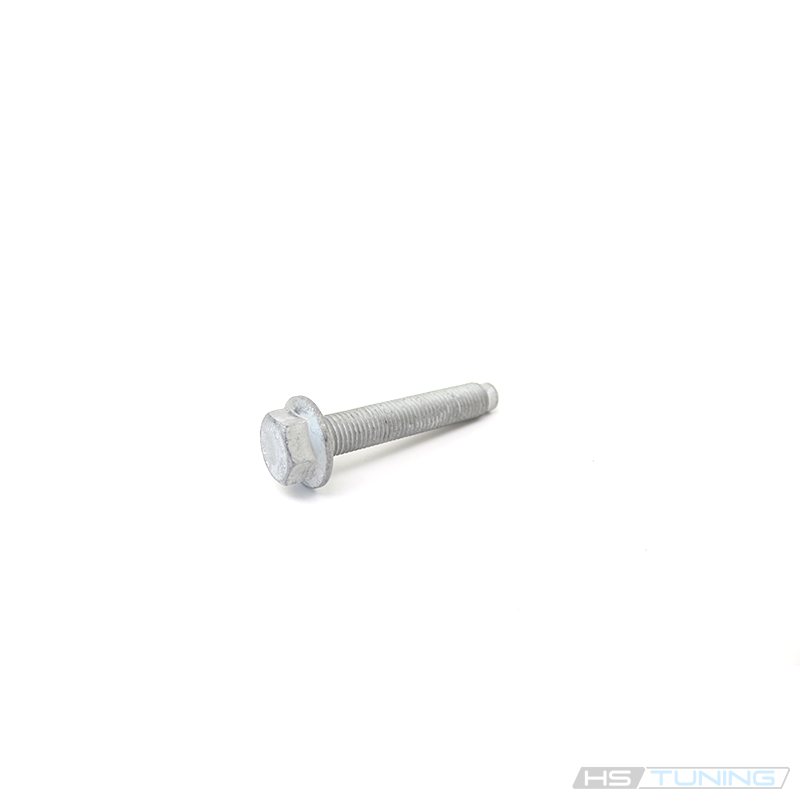

- Hexagonal drive head with integral flange, as shown in the product photo.
- Supplied as one bolt. Determine the required quantity from the specific mount repair.
- Factory catalog identifies this as a fastener that must not be reused after removal.
Common reasons to replace
Replace the bolt when removing the matching mount during engine, transmission, clutch or related service, following the factory requirement for a new fastener. Damaged threads, a rounded hex head, corrosion or evidence of incorrect previous installation also warrant replacement and inspection of the mating bracket.
Excessive powertrain movement, a clunk under load or vibration can indicate a problem in the mounting system, but those symptoms do not establish that this bolt is the cause. Inspect the mount, bracket, threaded mounting hole and related hardware. New hardware will not restore torn mount rubber, a failed hydraulic mount or damaged bracket threads.
Installation and service notes
Confirm the bolt number, mount position and engine / gearbox configuration before ordering. Similar-looking bolts can have different lengths, thread pitches and service requirements. Support the powertrain correctly before loosening the mounting arrangement, and align the mount and bracket without using the bolt to force misaligned components together.
Install a new bolt using the VIN-specific repair manual's tightening sequence, torque and any specified angle stage. Do not substitute a generic torque based only on the M12 thread size. Observe the specified condition of the threads and contact surfaces, and replace other single-use mounting fasteners when the applicable procedure requires it.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Beetle | 2015 | 2.0L EA288 TDI diesel, CVCA | TDI; Confirm mount position and gearbox by VIN | Matching mount-to-bracket position requiring N10552404; not every mount fastener. |
| Volkswagen Golf | 2015 | 2.0L EA288 TDI diesel, CRUA | Mk7 TDI hatchback; Confirm mount position and gearbox by VIN | Matching mount-to-bracket position requiring N10552404; not every mount fastener. |
| Volkswagen Golf SportWagen | 2015 | 2.0L EA288 TDI diesel, CRUA | TDI wagon; Confirm mount position and gearbox by VIN | Matching mount-to-bracket position requiring N10552404; not every mount fastener. |
| Volkswagen Jetta | 2015 | 2.0L EA288 TDI diesel, CVCA | Mk6 TDI sedan; Confirm mount position and gearbox by VIN | Matching mount-to-bracket position requiring N10552404; not every mount fastener. |
| Audi A3 | 2015 | 2.0L TDI diesel; CRUA | 8V sedan; front-wheel drive; Match VIN-specific engine/transmission mount diagram and bolt position | Only the mount position specified for this M12x1.5x70 bolt; confirm installed mount/bracket. Replace removed one-time-use hardware. |
| Audi A3 | 2015–2016 | 1.8L turbocharged gasoline; CNSB | 8V front-wheel-drive 1.8T; Match VIN-specific engine/transmission mount diagram and bolt position | Only the mount position specified for this M12x1.5x70 bolt; confirm installed mount/bracket. Replace removed one-time-use hardware. |
| Audi TT | 2015 | 2.0L turbocharged gasoline; CETA | 8J; match original mount; Match VIN-specific engine/transmission mount diagram and bolt position | Only the mount position specified for this M12x1.5x70 bolt; confirm installed mount/bracket. Replace removed one-time-use hardware. |
| Audi S3 | 2015–2017 | 2.0L turbocharged gasoline; CYFB | 8V sedan; quattro; Match VIN-specific engine/transmission mount diagram and bolt position | Only the mount position specified for this M12x1.5x70 bolt; confirm installed mount/bracket. Replace removed one-time-use hardware. |
| Volkswagen Jetta Hybrid | 2013–2016 | 1.4L gasoline/electric hybrid; CNLA | Hybrid sedan; Match VIN-specific engine/transmission mount diagram and bolt position | Only the mount position specified for this M12x1.5x70 bolt; confirm installed mount/bracket. Replace removed one-time-use hardware. |
| Volkswagen GTI | 2013–2014 | 2.0L turbocharged gasoline; CBFA/CCTA | Mk6 hatchback; Match VIN-specific engine/transmission mount diagram and bolt position | Only the mount position specified for this M12x1.5x70 bolt; confirm installed mount/bracket. Replace removed one-time-use hardware. |
| Volkswagen GTI | 2015–2018 | 2.0L turbocharged gasoline; CXCA/CXCB | Mk7 hatchback; Match VIN-specific engine/transmission mount diagram and bolt position | Only the mount position specified for this M12x1.5x70 bolt; confirm installed mount/bracket. Replace removed one-time-use hardware. |
| Volkswagen Passat | 2014–2017 | 1.8L turbocharged gasoline; CPKA | NMS sedan; Match VIN-specific engine/transmission mount diagram and bolt position | Only the mount position specified for this M12x1.5x70 bolt; confirm installed mount/bracket. Replace removed one-time-use hardware. |
Match the installed mount and bracket to N-105-524-04. The table identifies verified configurations and does not imply that every bolt in their mounting systems is interchangeable.
