OVERVIEW
Specified inner-multipoint hardware for the rear axle assembly

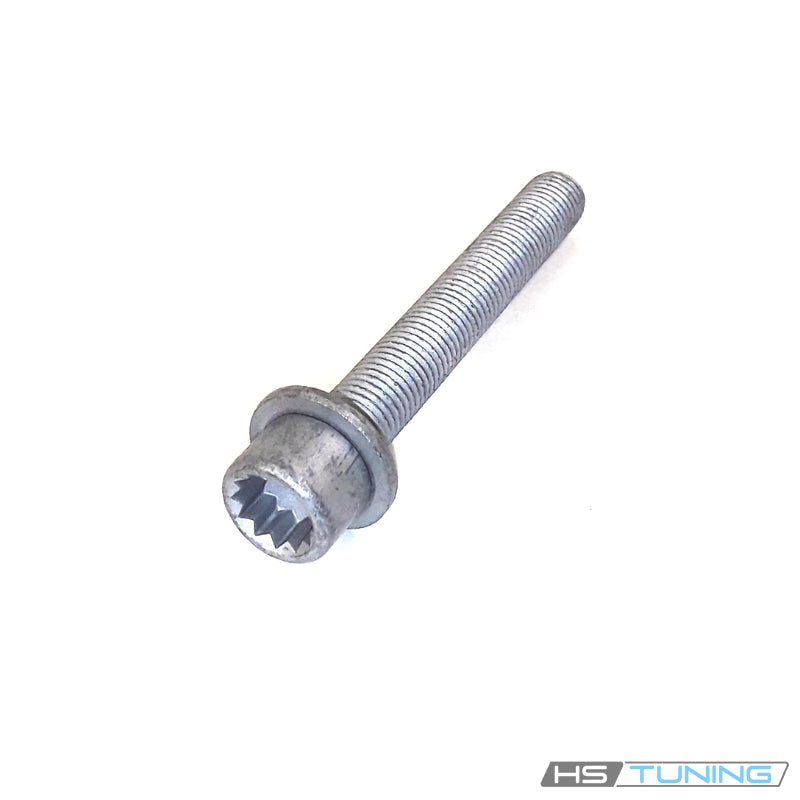

N-105-762-02 is the Genuine VW/Audi M12x1.5x85 combination bolt with an internal multipoint drive, cataloged in the rear axle assembly for the confirmed quattro applications below. Match the exact assigned connection and original fastener number.
Fasteners with a similar diameter can have different lengths, head forms and clamping requirements. Match the original factory number and assigned joint rather than choosing a bolt by appearance alone.
Technical details
- Complete factory number: N-105-762-02.
- Factory specification: M12 × 1.5 × 85 inner-multipoint combination bolt.
- Design: cylindrical inner-multipoint drive head with collar and threaded shank.
- Quantity supplied: one individual bolt.
The nominal thread and length describe the fastener itself. This listing supplies one bolt rather than the full quantity required for an assembly. Matching nuts, washers, brackets and related parts are separate.
Common reasons to replace
- The original bolt is missing after component service.
- Threads are damaged or will not engage correctly.
- The drive head is rounded or otherwise damaged.
- Corrosion or deformation makes the original fastener unsuitable for reuse.
Inspect the mating threads, supported component and associated hardware. A new bolt cannot correct a cracked mounting feature, damaged bracket or stripped receiving thread.
Vehicle fitment
The listed applications use the cataloged quattro rear axle assembly. Confirm the original bolt location by VIN and repair diagram; matching thread size alone does not establish interchangeability.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A3 | 2008 | 3.2L gasoline VR6 | 8P Sportback; quattro; PR 1X1; 6-speed DSG | Assigned rear axle assembly M12x1.5x85 inner-multipoint bolt; original AWD mounting position only. |
| Audi TT | 2012, 2014 | 2.0L turbo gasoline | 8J coupe or roadster; quattro; PR 1X1 | Assigned rear axle assembly M12x1.5x85 bolt only; match the original quattro mounting arrangement. |
Installation guidance
Follow the specific rear axle assembly repair procedure. Support the affected assembly, use the correct internal multipoint tool and replace all fasteners designated for single use. Apply the prescribed torque and any required angle stages; do not substitute a generic M12 bolt.
Check seating and engagement before final tightening. Verify that the serviced assembly is properly secured and that all required functional checks are completed.
Ordering information
One individual genuine bolt. Related nuts, washers, brackets and other assembly components are separate. Confirm VIN and original hardware number.
