OVERVIEW

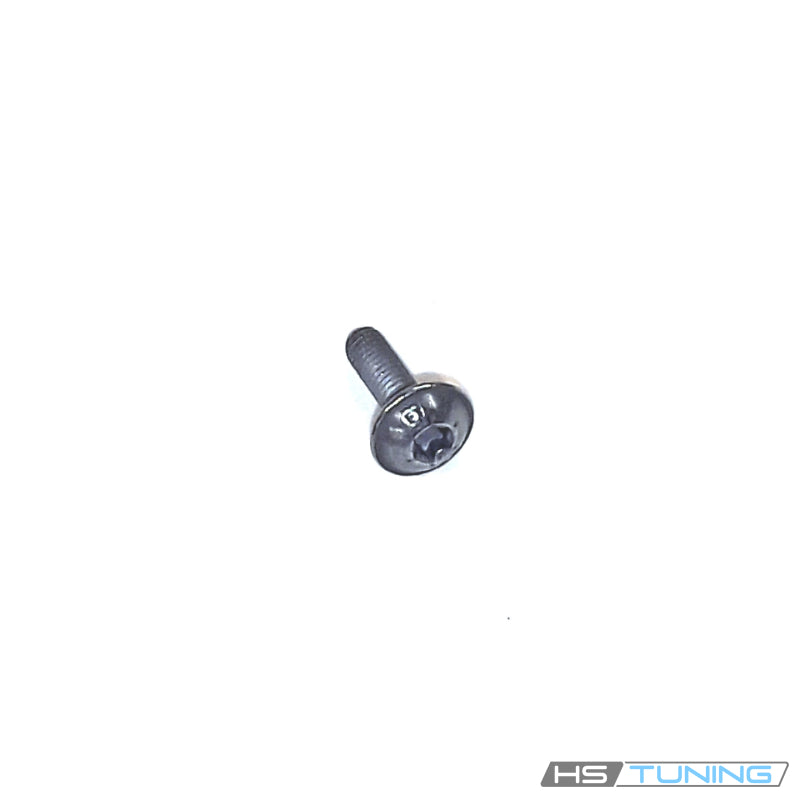

Genuine M4×14 bolt for the assigned lamp or sunblind connection
N-106-009-01 is the Genuine VW/Audi flat-head socket bolt specified at the mounting connections below. Confirmed uses include a Touareg additional brake-light attachment and the specified Passat electric sunblind assembly.
The factory uses this complete number at different assigned positions. Match the application column and original mounting point rather than treating the bolt as interchangeable with every small screw in the lamp or interior assembly.
Technical details
- Complete factory number: N-106-009-01.
- Factory specification: M4 × 14.
- Design: flat-head socket mounting bolt.
- Quantity supplied: one individual bolt.
Correct diameter, length and head seating preserve the intended connection. Other fasteners in these assemblies use different thread and panel-screw specifications, including a separate M2.5 sunblind screw. Confirm the original number before installation.
Common reasons to replace
- The original bolt is missing after lamp or sunblind service.
- The drive recess is damaged.
- Threads are damaged or cross-threaded.
- The head no longer seats correctly.
- Incorrect hardware was fitted during an earlier repair.
Inspect the receiving threads, mounting tabs and associated component before fitting a replacement. A new bolt cannot repair a cracked lamp mounting point or damaged sunblind mechanism. Diagnose an electrical or operating fault separately from the mounting hardware.
Vehicle fitment
Use the correct connection for the vehicle shown. The Passat application requires PR 3Y5 equipment. The Touareg row applies to its assigned additional brake-light mounting point.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Touareg | 2009 | 3.6L FSI gasoline VR6 | 7L SUV; 4Motion; Original additional/high-mounted brake-light attachment | Original N10600901 M4×14 lamp mounting position only. |
| Volkswagen Touareg | 2009 | 4.2L FSI gasoline V8 | 7L SUV; 4Motion; Original additional/high-mounted brake-light attachment | Original N10600901 M4×14 lamp mounting position only. |
| Volkswagen Touareg | 2009 | 3.0L TDI diesel V6 | 7L SUV; 4Motion; Original additional/high-mounted brake-light attachment | Original N10600901 M4×14 lamp mounting position only. |
| Volkswagen Passat | 2007 | 2.0L turbocharged FSI gasoline I4 | B6 sedan; PR 3Y5; Electric rear-window roller-sunblind assembly attachment | PR 3Y5 electric rear-window sun screen with manual side-window screens; original N10600901 position. |
| Volkswagen Passat | 2007 | 3.6L FSI gasoline VR6 | B6 sedan; PR 3Y5; Electric rear-window roller-sunblind assembly attachment | PR 3Y5 electric rear-window sun screen with manual side-window screens; original N10600901 position. |
Installation guidance
Follow the factory access and component-support procedure. Align the original attachment, start the correct bolt by hand and use a fully seated socket driver. Apply the connection-specific tightening instruction without distorting the lamp or interior component.
Confirm secure attachment and correct alignment. Check brake-light operation or sunblind travel, as applicable, and restore any disturbed trim or sealing components.
Ordering information
One genuine bolt is supplied. Lamps, sunblind assemblies, mounting brackets, seals and other hardware are not included. Verify the original part number, equipment and quantity required.
