OVERVIEW

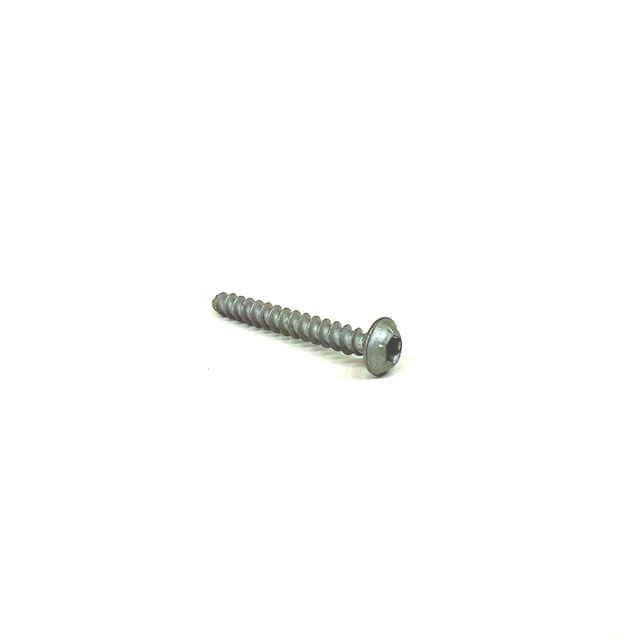

Genuine VW/Audi intake / throttle body screw, part number N-106-261-01. This low-profile fastener secures the matching intake assembly connection. At the throttle-body mounting position, correctly installed screws hold the flange evenly against its seal so that the intake connection stays properly seated.
Technical details
- Original part number: N-106-261-01 / N10626101.
- Factory catalog designation: 6 x 45 mm; nominal fastener diameter and length, not shipping dimensions.
- Thread-forming profile and internal drive head, visible in the product photo.
- Used in matching intake-system fastening positions; confirm the precise location and parts assignment by VIN.
- Supplied as one screw. This listing is not a four-piece throttle-body hardware set.
Common reasons to replace
Replace damaged or missing hardware when servicing the matching throttle body or intake component. A worn drive recess, damaged thread-forming profile, corrosion or a screw that cannot tighten correctly can compromise the connection. Inspect the mating fastening bore and flange whenever the installed screw appears damaged or incorrect.
A poorly seated intake flange can contribute to an air leak, but a new screw alone does not repair a cracked housing, damaged gasket or stripped fastening bore. Rough idle, intake-related fault codes or uneven operation need diagnosis of the full intake system before the hardware is blamed.
Installation and service notes
Verify the exact screw number, installed component and required quantity before ordering. Similar head shapes do not establish interchangeability. This is a thread-forming fastener; do not treat its nominal diameter as permission to substitute a conventional machine-thread bolt or to apply a generic bolt torque.
Seat the intake component and seal correctly before tightening. Use the specified internal-drive tool and follow the VIN-specific sequence and torque for the actual fastening position. Tightening into a damaged bore or overtightening a plastic housing can prevent proper clamping. Check related seals and replace other hardware when required by the repair procedure.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A3 | 2009–2013 | 2.0L TFSI gasoline, CCTA / CBFA | 8P hatchback, front-wheel drive or quattro; Manual or automatic; matching intake / throttle-body fastening position | Confirm VIN and installed intake assembly. Thread-forming 6 x 45 fastener; other screws and positions are not interchangeable. |
| Volkswagen GTI | 2010–2014 | 2.0L TSI gasoline, CCTA / CBFA | Mk6 hatchback; Manual or automatic; matching intake / throttle-body fastening position | Confirm VIN and installed intake assembly. Thread-forming 6 x 45 fastener; other screws and positions are not interchangeable. |
| Volkswagen CC | 2009–2017 | 2.0L TSI gasoline, CCTA / CBFA where fitted | 2.0T sedan, front-wheel drive; Manual or automatic; matching intake / throttle-body fastening position | Confirm VIN and installed intake assembly. Thread-forming 6 x 45 fastener; other screws and positions are not interchangeable. |
| Volkswagen Tiguan | 2009–2017 | 2.0L TSI gasoline, CCTA | First-generation SUV, front-wheel drive or 4Motion; Manual or automatic; matching intake / throttle-body fastening position | Confirm VIN and installed intake assembly. Thread-forming 6 x 45 fastener; other screws and positions are not interchangeable. |
| Volkswagen Tiguan Limited | 2017–2018 | 2.0L TSI gasoline, CCTA | First-generation Limited SUV; Manual or automatic; matching intake / throttle-body fastening position | Confirm VIN and installed intake assembly. Thread-forming 6 x 45 fastener; other screws and positions are not interchangeable. |
| Volkswagen Jetta GLI | 2015–2017 | 2.0L TSI gasoline, CPLA / CPPA | GLI sedan; Manual or automatic; matching intake / throttle-body fastening position | Confirm VIN and installed intake assembly. Thread-forming 6 x 45 fastener; other screws and positions are not interchangeable. |
| Volkswagen GTI | 2015–2017 | 2.0L TSI gasoline | Mk7 hatchback; Manual or automatic; matching intake / throttle-body fastening position | Confirm VIN and installed intake assembly. Thread-forming 6 x 45 fastener; other screws and positions are not interchangeable. |
| Audi A4 quattro | 2005–2008 | 3.2L FSI gasoline V6 | B7 sedan / Avant; 2005 new-body configuration only; Match original intake assembly and fastening position by VIN | Thread-forming 6x45 intake fastener only at the position specified for this number; verify original manifold and screw before ordering. |
| Audi A4 | 2006–2008 | 3.2L FSI gasoline V6 | B7 front-wheel-drive sedan; Match original intake assembly and fastening position by VIN | Thread-forming 6x45 intake fastener only at the position specified for this number; verify original manifold and screw before ordering. |
| Audi A4 Cabriolet | 2007–2009 | 3.2L FSI gasoline V6 | B7 quattro convertible; Match original intake assembly and fastening position by VIN | Thread-forming 6x45 intake fastener only at the position specified for this number; verify original manifold and screw before ordering. |
| Audi A5 | 2008–2010 | 3.2L FSI gasoline V6 | B8 quattro coupe; Match original intake assembly and fastening position by VIN | Thread-forming 6x45 intake fastener only at the position specified for this number; verify original manifold and screw before ordering. |
| Audi Q5 | 2009 | 3.2L FSI gasoline V6 | 8R SUV; Match original intake assembly and fastening position by VIN | Thread-forming 6x45 intake fastener only at the position specified for this number; verify original manifold and screw before ordering. |
| Audi A4 | 2009–2010 | 2.0L turbocharged gasoline inline-4 | B8 front-wheel-drive / quattro sedan; quattro Avant; Match original intake assembly and fastening position by VIN | Thread-forming 6x45 intake fastener only at the position specified for this number; verify original manifold and screw before ordering. |
Confirm engine code, intake assembly and screw position. These gasoline configurations do not establish fitment for diesel or other engine versions.
