OVERVIEW

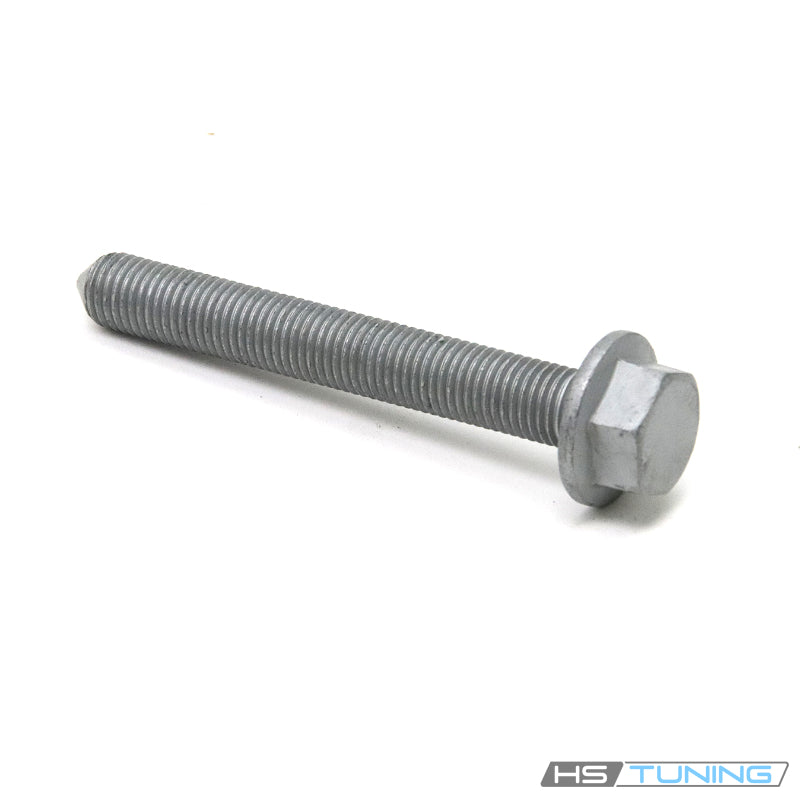

Genuine VW/Audi rear suspension mounting bolt, part number N-106-283-01. This original collared hex fastener is assigned to the rear lower shock mounting connection and selected rear tie-rod inner mounting positions shown below. Its application depends on the actual attachment point, so choose by original number and position as well as vehicle configuration.
Technical details
- Original part number: N-106-283-01 / N10628301.
- Published nominal size: M12 x 1.5 x 90.
- External hex drive with integral collar beneath the head.
- One bolt supplied; nuts, shock absorber, suspension links and bushings are separate.
- Cataloged as one-time-use hardware at the listed rear suspension positions.
At the specified lower shock connection, the bolt retains the damper mounting eye in its suspension attachment. At the separately listed rear tie-rod or toe-link inner position, it retains that link at its assigned inner mounting point. These are distinct connections even where the same original bolt number is specified.
Rear suspension hardware can differ in length, thread and service procedure between neighboring positions. The nominal M12 thread alone does not make another fastener suitable for either attachment. Confirm the original number at the exact mounting point before disassembly or ordering.
Common reasons to replace
Renew this bolt when the specified one-time-use connection has been loosened or removed during shock absorber, suspension link or related rear suspension service. Replace missing hardware, damaged threads, a rounded hex head, deformation or corrosion affecting installation.
A previously serviced connection may contain an unsuitable substitute or reused hardware. Inspect the complete mounting arrangement and obtain the correct bolt and any separately specified nut before reassembly.
Rear suspension noise, inconsistent damping or changes in wheel alignment require diagnosis of the damper, bushings, links and mounting points. A new bolt does not repair a worn shock absorber, torn bushing, bent link or damaged mounting hole. Correct those faults before completing the hardware connection.
Installation and service notes
Use the factory repair procedure for the exact rear shock or rear link attachment being serviced. Support the vehicle and suspension as prescribed before removing the mounting bolt; releasing the connection can allow the component or suspension assembly to move.
Inspect the mounting eye, bracket faces, associated bushing and mating threads. Position the components correctly and start the new bolt by hand. Do not force the fastener through a misaligned connection.
Use the specified new mating hardware where required and follow the prescribed tightening sequence, suspension position, torque and additional angle. Requirements for a rear shock connection must not be transferred to a different rear tie-rod or control-arm position.
Do not infer a universal tightening value from M12 x 1.5 x 90. Follow the applicable factory thread preparation instructions and avoid adding lubricant unless the procedure calls for it.
Complete the specified suspension and alignment checks after service. If link removal or adjustment affects wheel geometry, perform the required alignment work. This listing supplies one original bolt; select the quantity according to the positions being repaired.
Fitment
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen GTI | 2015–2017 | 2.0L turbocharged gasoline, EA888 Generation 3 | Mk7 hatchback, front-wheel drive; 6-speed manual | Specified rear lower shock mounting bolt. One-time-use hardware; match N10628301 at this position. Other rear suspension fasteners differ. |
| Volkswagen GTI | 2015–2017 | 2.0L turbocharged gasoline, EA888 Generation 3 | Mk7 hatchback, front-wheel drive; 6-speed DSG | Specified rear lower shock mounting bolt. One-time-use hardware; match N10628301 at this position. Other rear suspension fasteners differ. |
| Volkswagen GTI | 2018–2021 | 2.0L turbocharged gasoline, EA888 Generation 3 | Mk7.5 hatchback, front-wheel drive; 6-speed manual | Specified rear lower shock mounting bolt. One-time-use hardware; match N10628301 at this position. Other rear suspension fasteners differ. |
| Volkswagen GTI | 2018 | 2.0L turbocharged gasoline, EA888 Generation 3 | Mk7.5 hatchback, front-wheel drive; 6-speed DSG | Specified rear lower shock mounting bolt. One-time-use hardware; match N10628301 at this position. Other rear suspension fasteners differ. |
| Volkswagen GTI | 2019–2021 | 2.0L turbocharged gasoline, EA888 Generation 3 | Mk7.5 hatchback, front-wheel drive; 7-speed DSG | Specified rear lower shock mounting bolt. One-time-use hardware; match N10628301 at this position. Other rear suspension fasteners differ. |
| Volkswagen GTI | 2018–2021 | 2.0L turbocharged gasoline, EA888 Generation 3 | Mk7.5 hatchback, front-wheel drive; 6-speed manual | Specified rear tie-rod / toe-link inner mounting bolt. One bolt per side at this position; one-time-use hardware. Confirm original number and mounting position. |
| Volkswagen GTI | 2018 | 2.0L turbocharged gasoline, EA888 Generation 3 | Mk7.5 hatchback, front-wheel drive; 6-speed DSG | Specified rear tie-rod / toe-link inner mounting bolt. One bolt per side at this position; one-time-use hardware. Confirm original number and mounting position. |
Confirm the original bolt number and exact rear suspension attachment before ordering. One bolt supplied.
