OVERVIEW

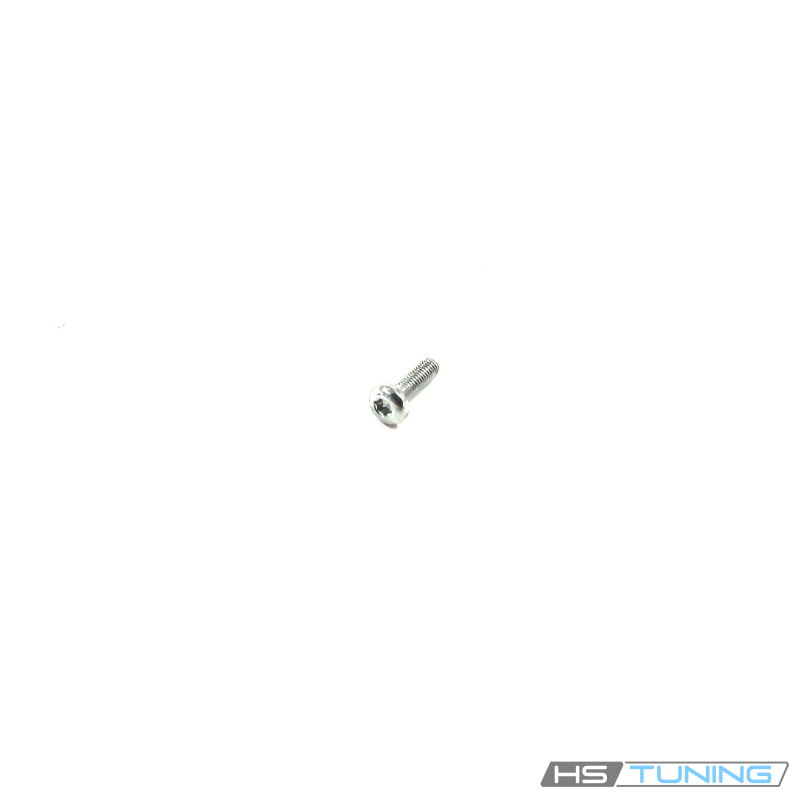

Genuine mounting bolt for the specified compass interior mirror
N-106-530-01 is the Genuine VW/Audi flat-head socket bolt used at the assigned interior mirror mounting connection. The confirmed R8 application requires the automatically dimming mirror with compass, identified by equipment code 4L7.
The mirror assembly contains multiple clips, covers and mounting components. Match the complete part number at the original connection. The listing supplies an individual mechanical fastener; the mirror, glass mounting base, wiring and covers are separate.
Technical details
- Complete factory number: N-106-530-01.
- Factory specification: M3 × 10.
- Design: flat-head socket mounting bolt.
- Quantity supplied: one individual bolt.
Correct thread diameter, length and head seating preserve the intended connection. Similar mirror fasteners from a different mirror type or model generation are not automatically interchangeable.
Common reasons to replace
- The original bolt is missing after mirror service.
- The drive recess is damaged.
- Threads are damaged or no longer engage correctly.
- The head or seating surface is distorted.
- Incorrect hardware was installed during an earlier repair.
Inspect the mirror attachment, receiving threads and associated clip or bracket for damage. A replacement bolt cannot repair a loose glass-mounted base or broken mirror housing.
Vehicle fitment
Verify the 4L7 compass mirror and the original bolt number. The factory entry specifies the model-year-2015 branch; other mirror equipment codes require separate confirmation.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi R8 | 2015 | 4.2L FSI gasoline V8 | Coupe; quattro; PR 4L7; Automatically dimming interior mirror with compass | Model year 2015 onward catalog branch; PR 4L7 mirror only; original N10653001 attachment. |
| Audi R8 | 2015 | 4.2L FSI gasoline V8 | Spyder; quattro; PR 4L7; Automatically dimming interior mirror with compass | Model year 2015 onward catalog branch; PR 4L7 mirror only; original N10653001 attachment. |
| Audi R8 | 2015 | 5.2L FSI gasoline V10 | Coupe; quattro; PR 4L7; Automatically dimming interior mirror with compass | Model year 2015 onward catalog branch; PR 4L7 mirror only; original N10653001 attachment. |
| Audi R8 | 2015 | 5.2L FSI gasoline V10 | Spyder; quattro; PR 4L7; Automatically dimming interior mirror with compass | Model year 2015 onward catalog branch; PR 4L7 mirror only; original N10653001 attachment. |
Installation guidance
Follow the vehicle-specific interior mirror removal and installation procedure. Support the mirror, protect nearby trim and glass, and start the bolt carefully by hand. Use the correct driver and the specified tightening instruction for this small connection.
Confirm the mirror is securely retained and that removed covers and electrical connections are restored. Check the mirror functions after the assembly is complete.
Ordering information
One genuine mounting bolt is supplied. The mirror, clips, glass mounting base, covers and wiring are not included. Confirm equipment code, original number and required quantity.
