OVERVIEW
Fasten the assigned inner CV joint retainer plate
N-106-679-01 is the Genuine VW/Audi internal multipoint socket-head bolt for the specified CV axle retainer-plate connections. Its factory M10 × 55 mm size must match the original joint and attachment.
CV joint fasteners operate in a rotating driveline connection where correct length, engagement and tightening procedure are essential. A bolt with the same nominal thread but a different head or length is not an equivalent substitute.
Technical details
- Complete factory number: N-106-679-01.
- Factory specification: M10 × 55 mm internal multipoint socket-head bolt.

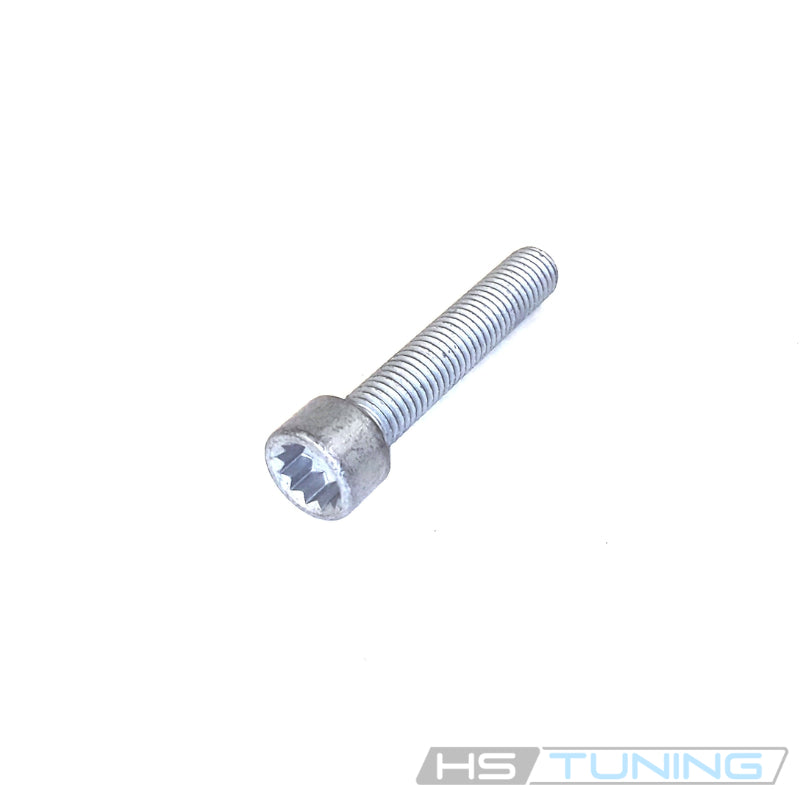

- Design: metal fastener with cylindrical socket head and threaded shank, as pictured.
- Quantity supplied: one individual bolt.
One individual bolt is supplied. Retainer plate, axle shaft, CV joint, boot, grease and other bolts are separate. The nominal thread and length describe the fastener, not its packaged shipping dimensions.
Common reasons to replace
- The repair procedure specifies replacement when the joint is disturbed.
- The internal drive is rounded or damaged.
- Threads are damaged or the bolt is corroded.
- The original fastener is missing or an incorrect replacement has been installed.
Inspect the retainer plate, joint flange and mating threads. Determine the cause of a loose connection and correct damaged components before installation. Do not use a longer bolt to compensate for damaged threads.
Vehicle fitment
The table lists confirmed original attachment positions. Match the axle, gearbox, joint design and complete part number; the bolt is not universal to every R8 driveline connection.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi R8 | 2009 | 4.2L gasoline V8 | quattro coupe | Rear inner CV joint retainer-plate bolt, assigned left/right positions; match original joint and factory number. |
| Audi R8 | 2010 | 4.2L gasoline V8 or 5.2L gasoline V10 | quattro; original rear drive-axle joint configuration | Rear retainer-plate screw positions for the listed engines; verify gearbox and original joint application. |
| Audi R8 | 2014 | 4.2L gasoline V8 | Spyder; automatic transmission | Assigned rear inner joint plate bolt; verify original joint, transmission and complete number. |
| Audi R8 | 2015 | 5.2L gasoline V10 | quattro; Base or Plus | Assigned rear CV axle retainer-plate bolt positions; match original configuration. |
Installation guidance
Use the correct fully seated multipoint bit and follow the vehicle-specific joint installation procedure. Observe requirements for clean threads, locking treatment, new fasteners and the prescribed torque or torque-angle sequence. Do not guess tightening specifications.
Check that the plate and joint are correctly seated and all required fasteners are installed. Complete the prescribed driveline inspection and road test, checking for leaks, looseness or abnormal vibration.
Ordering information
One individual Genuine VW/Audi N-106-679-01 CV axle retainer-plate bolt, M10 × 55 mm. Order the quantity required by the specific repair; other hardware and joint components are separate.
