OVERVIEW

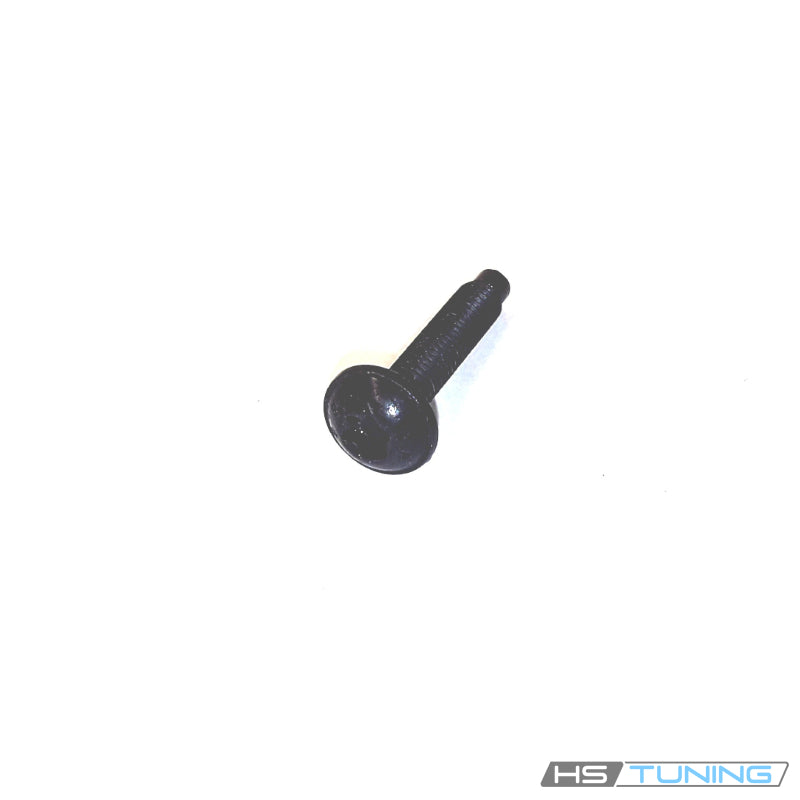

Genuine VW/Audi N-106-768-01 is an individual oval-head mounting bolt with a factory nominal specification of M5 × 25. The verified applications below distinguish the assigned interior audio and door-module mounting connections.
Technical details and contents
- Factory part number: N-106-768-01 / N10676801.
- Factory nominal fastener specification: M5 × 25.
- Oval head with recessed drive and threaded shank.
- Quantity supplied: one individual bolt.
- Trim, audio components, modules and other hardware are separate.
The nominal specification describes the functional fastener size, not a shipping measurement. Match the original head, receiver and attachment. Similar M5 bolts can have different lengths or bearing profiles and should not be substituted from appearance alone.
Distinct mounting applications
In the specified TT audio application, the catalog assigns this bolt to the active-speaker equipment arrangement identified by PR 9VD. The neighboring Bose equipment entries have separate assignments and must not be carried over to this bolt automatically.
In the listed Q3 configurations, the bolt is assigned to the door-module and sensor mounting diagram at the specified point. These are separate joints from the TT audio application. Follow the correct component-specific service procedure and hardware assignment.
Common reasons to replace
- The bolt is missing following trim, audio or module service.
- The recessed drive or threads are damaged.
- The shank is bent or the head no longer seats properly.
- Corrosion prevents correct fastening.
- The exact factory repair procedure requires replacement.
Inspect the receiving threads, mounting bracket and retained component before assembly. A new bolt will not repair a cracked mounting boss, damaged audio component or faulty sensor. Diagnose electrical faults separately from replacement of fastening hardware.
Vehicle fitment
Match the equipment code and the exact mounting point in the table. An engine and model match alone does not establish the correct audio package or module attachment. Adjacent fasteners in the same diagram have their own factory numbers.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi TT | 2011 | 2.0L turbocharged gasoline inline-four | 8J Coupe or Roadster; active-speaker equipment PR 9VD; assigned audio mounting point; 6-speed S tronic DSG; quattro | Original M5 × 25 audio mounting bolt for PR 9VD. Do not transfer the adjacent Bose 8RY equipment assignment to this row. |
| Audi Q3 Quattro | 2017 | 2.0L turbocharged gasoline inline-four | 8U SUV; assigned door-module/sensor mounting point; 6-speed automatic; quattro | Assigned M5 × 25 door-module/sensor bolt at diagram point 5. Neighboring N90969901 is a separate hardware entry; match original module and attachment. |
| Audi Q3 | 2018 | 2.0L turbocharged gasoline inline-four | 8U SUV; assigned door-module/sensor mounting point; 6-speed automatic; front-wheel drive | Assigned M5 × 25 door-module/sensor bolt at diagram point 5. Match exact original module and fastening point. |
Installation guidance
Follow the factory removal and installation procedure for the exact interior component. Observe required electrical and restraint-system preparation before working around connected door modules or sensors. Identify the original wire routing and mounting arrangement before removing hardware.
Align the component and start the bolt by hand. Use the correct drive tool and the exact tightening, renewal and thread-treatment instructions for the joint. Do not use the bolt to force a misaligned bracket into position or transfer a torque value between the audio and sensor applications.
Complete the prescribed component and electrical checks after assembly. This listing contains dry fastening hardware only and does not include a sensor, airbag, pretensioner, speaker or amplifier.
Ordering information
This listing supplies one genuine mounting bolt. Confirm the required quantity and all additional components for the repair. Module, wiring, speaker, bracket, trim and a complete installation kit are not included.
