OVERVIEW
Original multipoint combination hardware

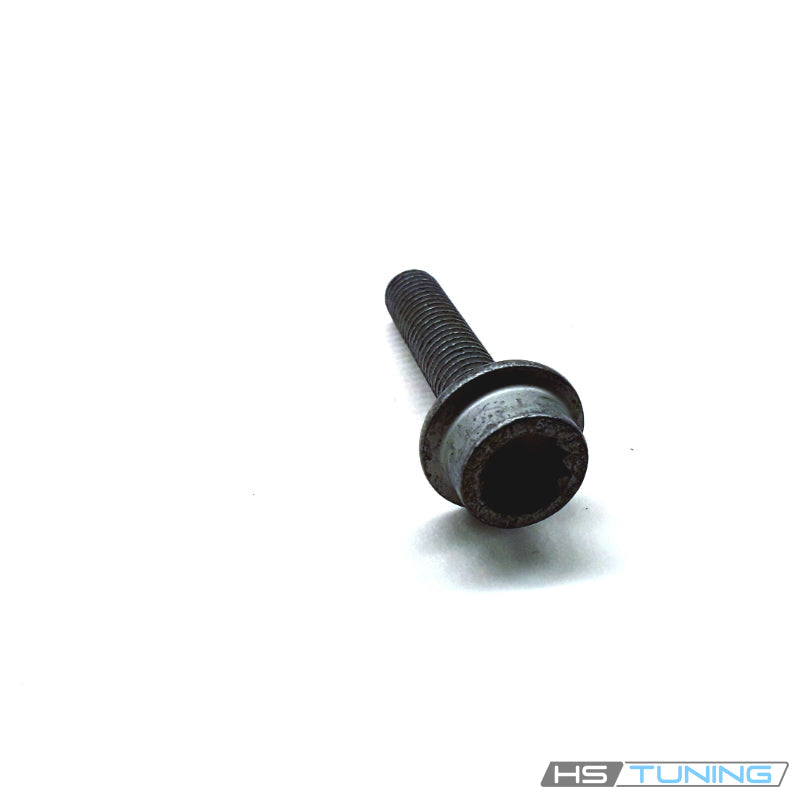

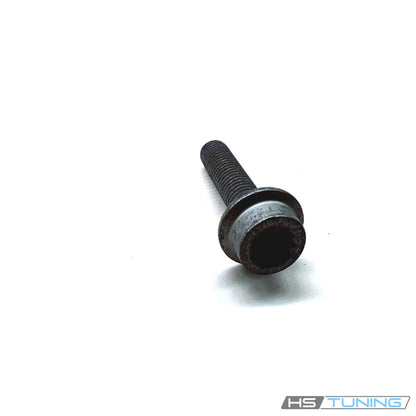

N-106-872-01 is a Genuine VW/Audi M10 x 45 combination bolt with an internal multipoint drive and a washer-style bearing arrangement. The confirmed applications below use it at specific original rear-axle assembly fastening points.
Rear-axle diagrams contain several different bolt sizes and equipment branches. The original fastening point and guard/support arrangement must match; a shared M10 diameter does not establish interchangeability with another suspension fastener.
Technical details
- Complete factory number: N-106-872-01.
- Factory specification: M10 x 45 mm, internal multipoint drive.
- Design: Socket head with washer-style bearing arrangement and threaded shank.
- Quantity supplied: one individual bolt; axle components, guards, brackets and other hardware are not included.
M10 x 45 describes nominal thread diameter and fastener length. No unverified drive size, thread pitch, strength class, torque, weight or package size is assigned.
Common reasons to replace
- Damaged multipoint recess that prevents secure tool engagement.
- Damaged threads, a bent shank or an impaired bearing arrangement.
- Missing hardware or an incorrectly substituted fastener found during assembly service.
Inspect the attached component, mounting surfaces and receiving threads before replacement. A new bolt alone does not repair a damaged guard, distorted bracket or worn suspension joint.
Vehicle fitment
Match the drivetrain and equipment restrictions in the table, then verify the complete original number at the particular attachment.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 2013 | 2.0L turbocharged gasoline | B8 sedan, quattro; Original configuration | Original rear-axle assembly hardware at the specified N-106-872-01 fastening point, PR 1X1. Confirm the original guard/support arrangement; not every rear-axle bolt. |
| Audi A4 allroad | 2014 | 2.0L turbocharged gasoline | B8 wagon, quattro; Automatic | Original rear support-frame/guard hardware requiring N-106-872-01; PR 1SH additional guard equipment required. Verify equipment before ordering. |
Installation guidance
Support any component affected by removal and follow the factory procedure for that exact joint. Maintain the specified washer and spacer order and start the correct fastener by hand.
Use a fully seated multipoint tool and the specified tightening method. Check seating, alignment and clearance, and complete any additional suspension checks required by the repair procedure.
Ordering information
New and unused inventory. Sold individually as N-106-872-01. Confirm the vehicle equipment, original attachment and required quantity before ordering.
