OVERVIEW

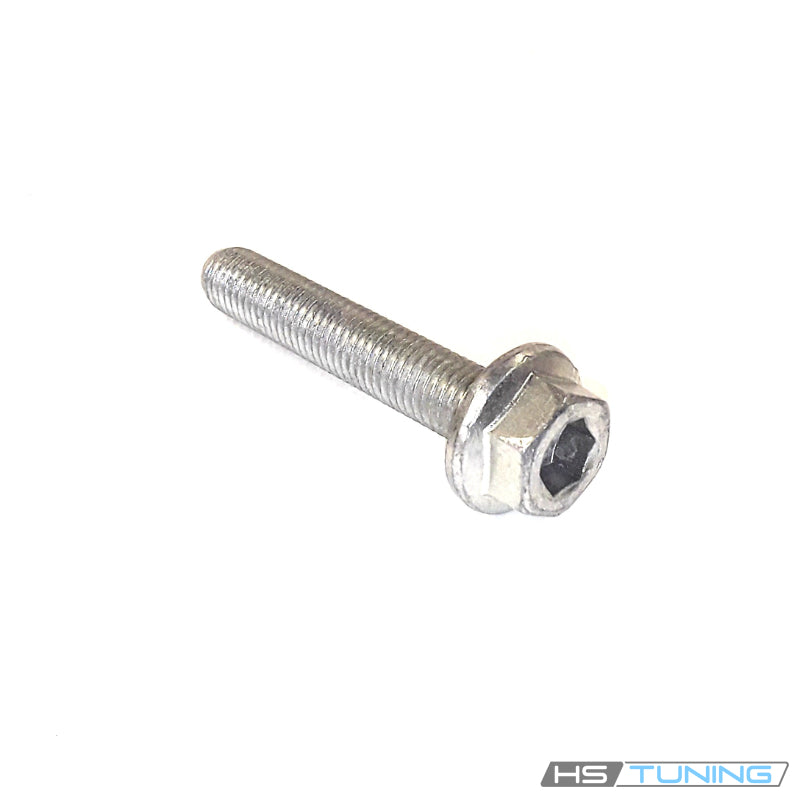

Genuine M12×70 transmission assembly bolt
The N-106-924-01 Genuine VW/Audi bolt is assigned to the original transmission attachment on the manual-gearbox configurations below. Its M12×70 factory specification distinguishes it from shorter bolts used around the same assembly.
Transmission-to-engine mounting uses several different bolt lengths and head designs, along with locating sleeves and starter hardware. Match this complete factory number and original location. This individual bolt is not a complete transmission mounting kit.
Technical details
- Complete factory number: N-106-924-01.
- Factory specification: M12 × 70.
- Design: combination hexagon-head mounting bolt with integral bearing flange.
- Quantity supplied: one individual bolt.
The nominal length and head bearing geometry are part of the original connection design. Another M12 bolt, including a nearby M12×65 item, is not automatically interchangeable. Confirm the installed gearbox and attachment before ordering.
Common reasons to replace
- The original mounting bolt is missing after gearbox service.
- The drive head is damaged.
- Threads are damaged or cross-threaded.
- The bearing flange is distorted.
- The factory repair procedure requires replacement of this fastener at the serviced connection.
Inspect the engine and transmission mounting faces, locating sleeves and receiving threads. A new bolt cannot correct a cracked housing, damaged thread or missing alignment sleeve. Correct those defects before final assembly.
Vehicle fitment
The rows require the stated 6-speed manual transmission and the original attachment assigned N10692401. Automatic, DSG and different-length mounting bolts are excluded from these applications.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Passat | 2006–2007 | 2.0L turbocharged FSI gasoline inline-four | B6; front-wheel drive; 6-speed manual; PR G0K | Original transmission-to-engine attachment assigned N10692401 M12×70; G0K 6-speed manual only. Not automatic mounting hardware. |
| Volkswagen Eos | 2010 | 2.0L TSI gasoline inline-four | Convertible; front-wheel drive; 6-speed manual; PR G0K | Original G0K manual transmission assembly position assigned N10692401 M12×70; excludes DSG. |
| Volkswagen GTI | 2010 | 2.0L TSI gasoline inline-four | Mk6 hatchback; front-wheel drive; 6-speed manual | Original manual-transmission attachment assigned N10692401 M12×70. Confirm original position and gearbox; do not substitute M12×65 N91060202. |
Installation guidance
Support the engine and transmission using the factory procedure. Align the housings and locating sleeves without drawing misaligned components together with the bolt. Start the correct hardware by hand and use the specified tightening sequence and connection-specific specification.
Verify that all original mounting and starter fasteners are installed in their assigned positions. Complete the prescribed mounting, wiring, fluid and functional checks after transmission service.
Ordering information
Supplied as one genuine bolt. Transmission, mounts, starter, locating sleeves and other mounting hardware are not included. Confirm the original part number and required quantity for the repair.
