OVERVIEW
Genuine VW/Audi N-107-105-01 is an individual recessed-head bolt assigned to the original center-console armrest pad attachment on the verified Audi applications below.
Technical details and contents
- Factory number: N-107-105-01 / N10710501.
- Component: individual armrest pad fastening bolt.
- Quantity supplied: one bolt.

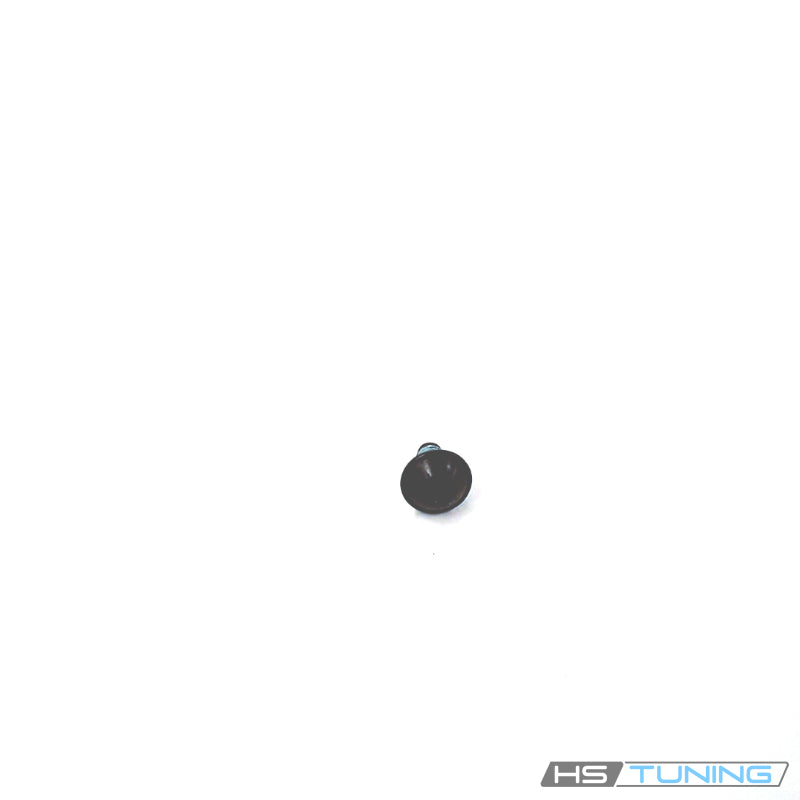

- The archive photo shows the dark rounded head and short fastening shank.
- Armrest pad, cover, support assembly, clips and other console hardware are separate.
Function in the console assembly
The bolt secures the assigned armrest pad mounting point. The console contains separate support fasteners, clips and covers with different jobs. Match the exact point in the armrest/rear-component diagram rather than selecting by head appearance alone.
Armrest upholstery color and trim-code notes identify the separate pad or cover. Those notes do not turn this individual bolt into a color-specific trim component. Confirm the installed armrest arrangement and receiving mount before ordering.
Common reasons to replace
- The original bolt is missing after console or armrest service.
- The recessed drive is damaged or rounded.
- The threads or seating face are damaged.
- Incorrect replacement hardware was used in a previous repair.
- Correct individual hardware is needed when reassembling the original armrest pad.
Movement or noise from the armrest can also result from broken locating features, a worn hinge or a damaged support. Inspect the complete assembly before assuming a new bolt will correct the problem. This bolt is not a seat or restraint-system anchorage fastener.
Vehicle fitment
The following rows identify verified original console applications. Match the installed armrest pad and exact attachment point; nearby console fasteners and clips are separate parts.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A7 Sportback | 2020 | 3.0L turbocharged gasoline V6 with mild hybrid system | C8 Sportback; 7-speed S tronic; quattro | Original center-console armrest pad fastening point 7, armrest/rear component diagram. Match the installed armrest and receiving mount. Does not replace console support or seat anchorage hardware. |
| Audi A6 allroad | 2020–2021, 2023 | 3.0L turbocharged gasoline V6 with mild hybrid system | C8 wagon; 7-speed S tronic; quattro | Original center-console armrest pad fastening point 7, armrest/rear component diagram. Match the installed armrest and receiving mount. Does not replace console support or seat anchorage hardware. |
| Audi RS6 Avant | 2021 | 4.0L twin-turbocharged gasoline V8 with mild hybrid system | C8 wagon; 8-speed Tiptronic; quattro | Original center-console armrest pad fastening point 7, armrest/rear component diagram. Match the installed armrest and receiving mount. Does not replace console support or seat anchorage hardware. |
| Audi RS7 Sportback | 2026 | 4.0L twin-turbocharged gasoline V8 with mild hybrid system | C8 Sportback; Performance; 8-speed Tiptronic; quattro | Original center-console armrest pad fastening point 7, armrest/rear component diagram. Match the installed armrest and receiving mount. Does not replace console support or seat anchorage hardware. |
Installation guidance
Follow the factory console and armrest removal procedure. Protect finished trim surfaces, align locating features and support the pad before starting the bolt. Use the correct recessed-drive tool and the tightening specification for this exact attachment.
Do not force the bolt into damaged receiving threads or tighten it excessively to pull a misaligned trim part into place. Check pad seating, armrest movement and adjacent trim clearance after reassembly.
Ordering information
This listing supplies one genuine bolt. It does not include a complete console, armrest pad, upholstery, hinge, support bracket, clips or a hardware kit. Verify the repair quantity and other required retainers before ordering.
