OVERVIEW
Genuine VW/Audi Black Wiring Harness Retainer
N-107-107-01 is the genuine black retainer used to support a matching section of wiring at its factory mounting point. The curved retaining section and mounting bar keep the assigned harness positioned relative to the adjacent bracket or support.

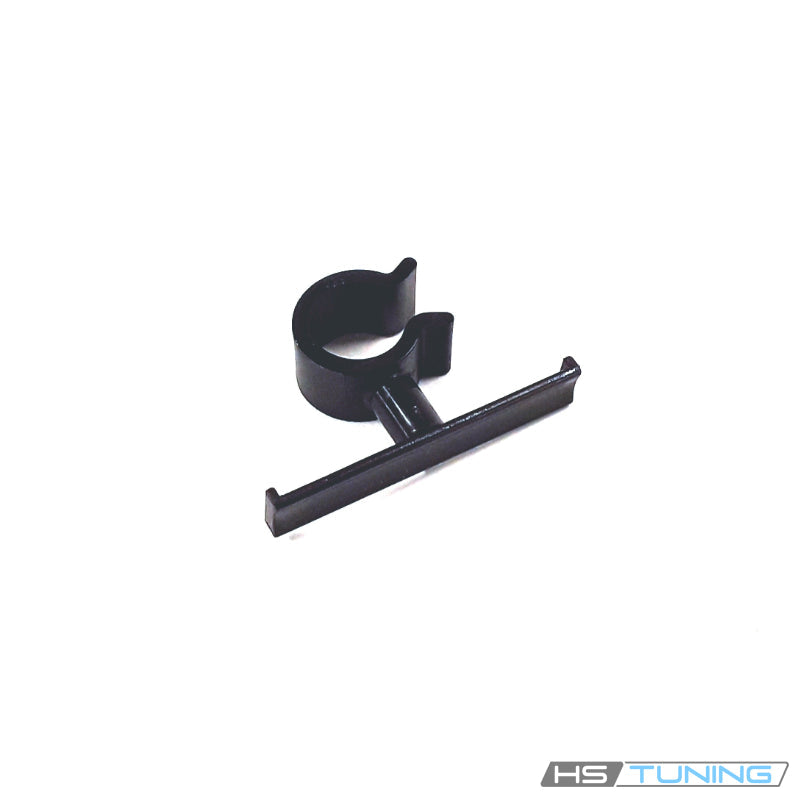

This listing supplies one individual retainer, as shown in the product photo. It is a routing and support component, separate from the wiring harness, electrical connectors and mounting structure. It does not provide an electrical connection or replace a damaged wire.
Technical details
- Complete factory number: N-107-107-01.
- Factory specification: Black wiring retainer; nominal retention diameter 11.5–13mm; complete OEM number N10710701.
- Design: Molded curved retaining section with an extended mounting bar.
- Quantity supplied: one individual retainer.
The stated diameter describes the catalog's retention range, not the overall length or shipping package. Correct support geometry and the original harness route matter as much as diameter. An attachment with a different mounting bar, orientation or retaining section may not secure the harness correctly.
Common reasons to replace
- Broken retaining section that no longer supports the assigned harness.
- Damaged mounting bar or attachment tabs found during service.
- Missing clip allowing wiring to move away from the original route.
- A removed retainer that cannot be refitted securely because its locking features are damaged.
Inspect the wiring insulation and the original support at the same time. Chafing, exposed conductors, corrosion or a distorted mounting point require separate repair. Loose routing can permit contact with moving or hot components; replacing the clip should restore the intended route without stretching or compressing the harness.
Vehicle fitment
Use the table with the original molded number and actual attachment. These vehicles use several different retainers, so match the mounting bar, harness diameter and assigned location before ordering.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Atlas | 2018–2023 | 2.0L turbocharged gasoline or 3.6L gasoline VR6 | SUV; matching original central wiring attachment | Original black retainer N10710701, nominal 11.5–13mm retention diameter, at assigned wiring mount; diagram position 24 where shown. Match actual harness diameter, mounting bar and factory routing. |
| Volkswagen Atlas Cross Sport | 2020–2023 | 2.0L turbocharged gasoline or 3.6L gasoline VR6 | CM SUV; matching original central wiring attachment | Original black retainer N10710701, nominal 11.5–13mm retention diameter, at assigned wiring mount; diagram position 24 where shown. Match actual harness diameter, mounting bar and factory routing. |
| Audi e-tron | 2020–2023 | Battery electric | Original e-tron SUV; matching factory wiring mount | Assigned original wiring retainer N10710701, diagram position 22. Match harness diameter, mounting bar and existing routing. Plastic support only; not a high-voltage connector, cable or electrical protection device. |
Installation guidance
Follow the factory electrical isolation and access procedure for the area being serviced. Record the original harness route before removing the retainer. Release the damaged clip without levering against insulation or connector bodies, and inspect the receiving support before installing the replacement.
Seat the mounting bar and retaining section fully in their original positions. Check that the harness is supported without tension, pinching or contact with nearby components. For an electric vehicle, use the prescribed high-voltage precautions whenever the repair area requires them; the retainer itself is only a mechanical support.
Ordering information
One individual N-107-107-01 retainer is supplied. Confirm the original part number, black housing, mounting-bar shape and nominal 11.5–13mm retention requirement. Wiring, connectors and surrounding brackets are not included.
