OVERVIEW

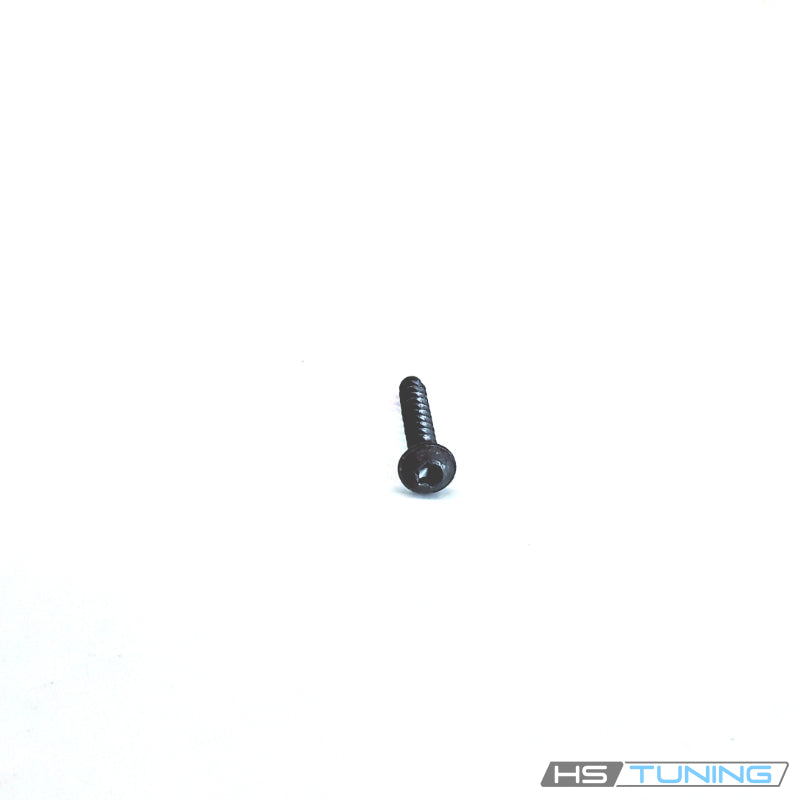

Genuine VW/Audi N-107-317-01 is an individual small mounting screw for the assigned original bumper-cover connection in the verified applications below. The factory nominal designation is 5 × 30. This listing contains the fastening screw only.
Technical details and contents
- Factory number: N-107-317-01 / N10731701.
- Nominal screw specification: 5 × 30.
- Recessed drive, oval head and threaded shank.
- Quantity supplied: one individual screw.
- Cover, bracket, retaining plate and other hardware are separate.
The nominal designation describes the functional screw size and is not a shipping dimension. Match the original receiver and fastening point. A similar screw can have a different thread profile, length or bearing surface.
Function at the cover attachment
This screw retains the assigned original cover connection. Correct fastening hardware helps the cover and associated mounting pieces remain seated at their intended attachment points.
The A6 applications below are limited to the original cover without the S line package. The S6 entry identifies its own assigned fastening point. Different covers, mounting plates and adjacent fasteners must be selected by their individual factory numbers.
Common reasons to replace
- The screw is missing following cover removal.
- The recessed drive or threaded profile is damaged.
- The head no longer seats correctly.
- Corrosion prevents proper fastening.
- A previous repair used an incorrect substitute screw.
Inspect the receiver, bracket and cover mounting tab before reassembly. A new screw cannot repair a broken tab, stripped receiver or distorted support. Do not overtighten the screw to compensate for a damaged mounting point.
Vehicle fitment
Match the engine, body style and bumper configuration in the table. The same vehicle can use several small fasteners in one assembly. The original diagram point and complete factory number determine the correct screw.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A6 | 2013–2015 | 2.0L turbocharged gasoline inline-four | C7 sedan; original front bumper cover without S line package; Multitronic CVT; front-wheel drive | Original 5 × 30 bumper-cover screw, diagram point 5. Without S line package; other bumper versions and nearby fasteners have separate assignments. |
| Audi A6 Quattro | 2012–2015 | 3.0L supercharged gasoline V6 | C7 sedan; original front bumper cover without S line package; 8-speed automatic; quattro | Original assigned cover screw, without S line package. This is the small fastener only; bumper and mounting kit are separate. |
| Audi S6 | 2013–2015 | 4.0L twin-turbocharged gasoline V8 | C7 sedan; original assigned front bumper-cover fastening point; 7-speed S tronic DSG; quattro | Assigned small cover screw at diagram point 5. Match original S6 cover connection; adjacent N90749004 is a separate fastener. |
Installation guidance
Follow the factory cover removal and installation procedure for the exact vehicle. Protect nearby finish surfaces and support the cover while its hardware is released. Identify wiring, sensors and hoses before moving the assembly.
Seat the cover and mating pieces correctly before starting the screw. Use the correct recessed-drive tool and the specified tightening instruction for the connection. Do not use the screw to draw a misaligned cover or damaged tab into place.
After assembly, check panel seating and the condition of all retaining points. Complete any required checks for electrical equipment disturbed during removal.
Ordering information
This listing supplies one genuine mounting screw. It does not include a bumper, body panel, cover, bracket, sensor or complete hardware kit. Confirm the number of screws and all associated mounting pieces required for the repair.
