OVERVIEW
Correct thread-forming hardware for the original fastening point

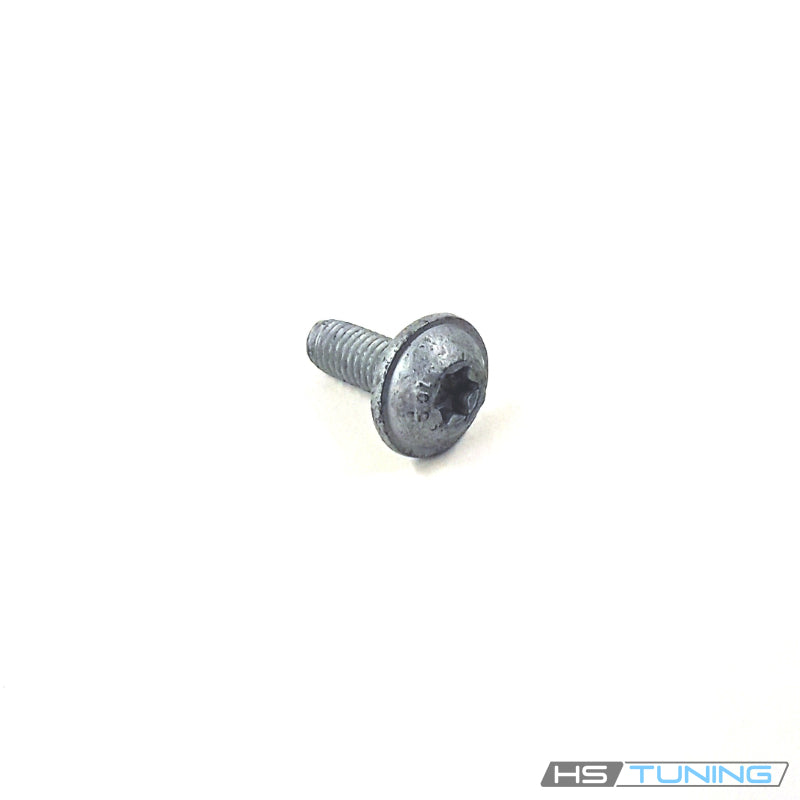

N-107-480-01 is a Genuine VW/Audi 6 x 16 thread-forming bolt with an internal Torx drive and a low rounded flange head. It replaces the specified original fastener in the oil-pan applications listed below.
The flange provides the intended head contact area while the thread-forming design differs from a conventional machine screw. Correct length, thread profile and head geometry matter when servicing the original pan; a similar-looking bolt is not sufficient identification.
Technical details
- Complete factory number: N-107-480-01.
- Factory specification: 6 x 16 mm, thread-forming, internal hexalobular drive.
- Design: Low rounded head with integral flange; match the original receiving hole and fastener specification.
- Quantity supplied: one individual bolt; pan, sealant and other fasteners are supplied separately.
The 6 x 16 designation identifies the nominal fastening size. It is not a packaged shipping dimension, and no unverified thread pitch or tightening torque is assigned.
Common reasons to replace
- Rounded drive recess that prevents secure tool engagement during removal or installation.
- Damaged threads, a bent shank or an impaired head seating surface.
- Missing hardware or a previously installed substitute of the wrong length or thread form.
An oil leak alone does not establish that the bolt is faulty. Inspect the pan flange, receiving threads and sealing joint before selecting the repair. A new fastener cannot restore a stripped receiving hole.
Vehicle fitment
Use the table to match the vehicle, engine and transmission, then confirm that the original fastening point calls for this complete part number.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Volkswagen Jetta | 2016–2018 | 1.4L turbocharged gasoline | Mk6.5 sedan, FWD; 5-speed manual or automatic | Original lower oil-pan fastening locations specifying N-107-480-01; confirm original pan and hardware by VIN. |
| Volkswagen Jetta | 2015 | 2.0L TDI diesel (CVCA) | Mk6.5 sedan, FWD; 6-speed DSG | Original oil-pan fastener locations specifying N-107-480-01. Not an oil drain plug. |
Installation guidance
Support and position the serviced component before starting the fastener. Use the correctly sized Torx tool, keep it fully seated, and follow the factory tightening sequence and torque for the exact pan and engine.
Do not substitute a generic M6 machine screw, add thread-locking compound or reuse an unsuitable receiving thread without the repair procedure specifying it. Check the repaired joint and sealing area after service.
Ordering information
New and unused inventory. Sold individually under complete factory number N-107-480-01. Order the quantity required for the repair after checking the original component and VIN.
