OVERVIEW
Original long fastener for the specified intake manifold

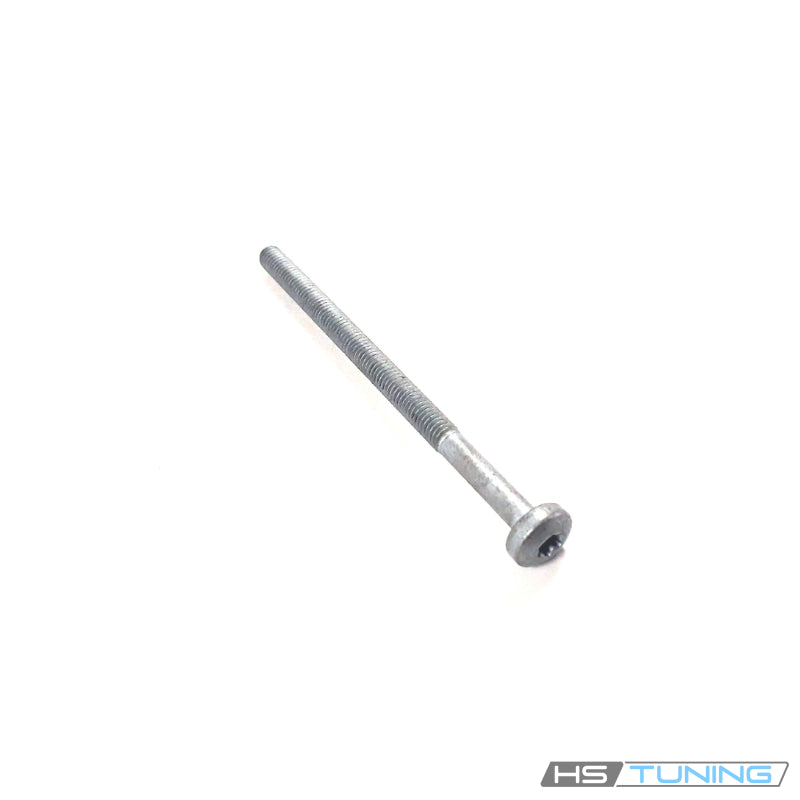

N-107-481-01 is the Genuine VW/Audi M6x95 recessed-drive bolt assigned to the intake manifold on the confirmed 2.0L engine configuration below. Its long shank reaches the original fastening location without substituting a different bolt length or head form.
Fasteners with a similar diameter can have different lengths, head forms and clamping requirements. Match the original factory number and assigned joint rather than choosing a bolt by appearance alone.
Technical details
- Complete factory number: N-107-481-01.
- Factory specification: M6 × 95 socket-drive intake manifold bolt.
- Design: recessed drive head with long partially threaded shank.
- Quantity supplied: one individual bolt.
The nominal thread and length describe the fastener itself. This listing supplies one bolt rather than the full quantity required for an assembly. Matching nuts, washers, brackets and related parts are separate.
Common reasons to replace
- The original bolt is missing after component service.
- Threads are damaged or will not engage correctly.
- The drive head is rounded or otherwise damaged.
- Corrosion or deformation makes the original fastener unsuitable for reuse.
Inspect the manifold attachment features and cylinder-head threads before installation. Air leaks, failed manifold controls or a damaged gasket require separate diagnosis and repair.
Vehicle fitment
Use only at the assigned factory fastening position on the listed applications. These vehicle entries do not establish compatibility with every fastening point on the vehicle.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A4 | 2014 | 2.0L turbo gasoline; engine family 06H.H; PR TL6 | B8 sedan; front-wheel drive or quattro | Assigned intake manifold M6x95 bolt only; original TL6 arrangement required. Excludes S4 V6. |
Installation guidance
Follow the engine-specific intake manifold service procedure. Protect open intake ports from debris, use the prescribed seals and position the manifold correctly before tightening. Apply the specified sequence and torque to avoid distorting the manifold.
Reinstall the assigned hoses and connectors and check for intake leaks and stored faults as directed. This individual bolt does not include a manifold, gasket or additional fasteners.
Ordering information
One individual genuine bolt. Related nuts, washers, brackets and other assembly components are separate. Confirm VIN and original hardware number.
