OVERVIEW

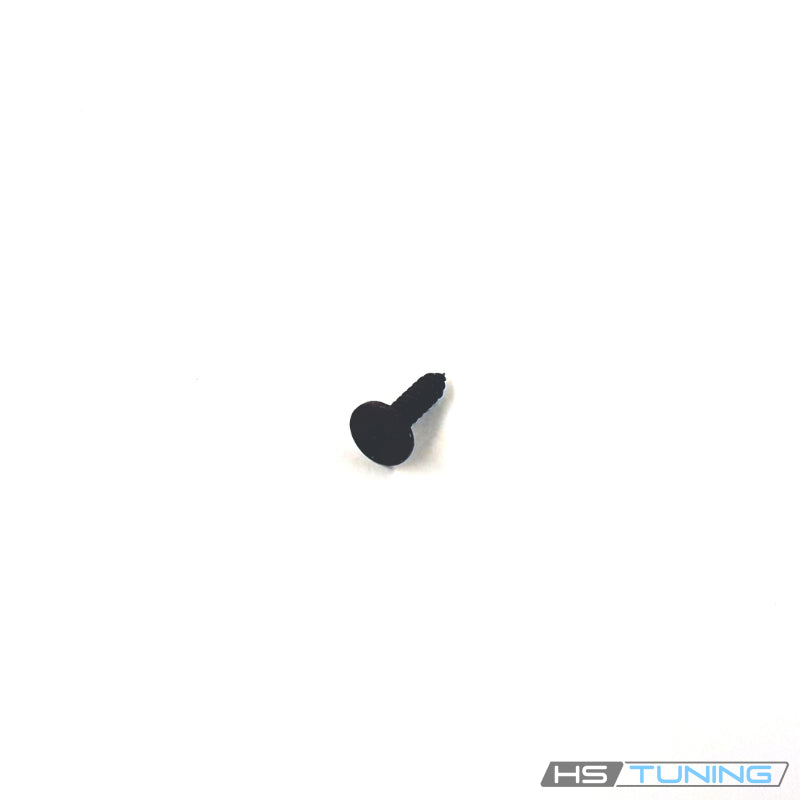

Genuine VW/Audi N-902-776-05 is an individual panel screw assigned to the original interior attachments listed below. Its factory nominal designation is 4.2 × 17. The verified applications include rear-lid handle and trim connections, plus a specific Q7 interior-light mounting arrangement.
Technical details and contents
- Factory part number: N-902-776-05 / N90277605.
- Nominal screw specification: 4.2 × 17.
- Pointed panel-screw profile with broad head.
- Quantity supplied: one individual screw.
- Handle, bezel, trim, lamp and other hardware are separate.
The nominal designation describes the functional fastener size, not a packaged shipping dimension. Match the original screw receiver and fastening point. A visually similar screw can have a different threaded profile, length or head-bearing shape.
Distinct interior mounting applications
In the rear-lid applications, the screw is assigned to the original handle-shell and trim arrangement. The Roadster, Cabriolet and sedan entries have separate body and equipment restrictions that must be retained when selecting the hardware.
The Q7 application is a separate mounting point in the interior-light arrangement for the specified roof equipment. Sharing this screw number does not make the trim and lighting service procedures interchangeable.
Common reasons to replace
- The screw is missing after handle, trim or lamp service.
- The drive or head is damaged.
- The threaded profile no longer engages the receiver correctly.
- The screw is bent or corroded.
- A previous repair used an incorrect substitute fastener.
Inspect the mounting boss, receiver and retained component before reassembly. A replacement screw cannot repair cracked trim, a stripped receiving point, a damaged handle or a faulty lamp. Do not overtighten to compensate for a damaged attachment.
Vehicle fitment
Match the body style, equipment code and exact connection in the table. Adjacent clips, handle parts and electrical components can have their own production dates and restrictions. Use the screw's assigned application rather than transferring a neighboring part's notes.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi TT | 2011–2012 | 2.0L turbocharged gasoline inline-four | 8J Roadster; PR K8J; original rear-lid emergency-handle/bezel attachment; 6-speed S tronic DSG; quattro | Assigned 4.2 × 17 panel screw for the Roadster handle shell and rear-lid emergency-handle arrangement. Coupe not included in this row. |
| Audi RS5 | 2014 | 4.2L naturally aspirated gasoline V8 | 8F Cabriolet; factory A8U equipment; original rear-lid trim/handle-shell attachment; 7-speed S tronic DSG; quattro | Original 4.2 × 17 panel screw assigned to A8U rear-lid trim arrangement. One screw supplied; catalog assembly quantity is two. |
| Audi A8 Quattro | 2012 | 4.2L gasoline V8 | D4 sedan; standard or A8 L body; factory A8U equipment; original rear-lid handle-shell attachment; 8-speed automatic; quattro | Assigned 4.2 × 17 handle-shell panel screw for A8U equipment. Neighboring 4E9 closing-system component dates are separate assignments. |
| Audi Q7 | 2014 | 3.0L supercharged gasoline V6 or 3.0L TDI diesel V6 | 4L SUV; big roof system PR 3FV; original interior-light mounting arrangement; 8-speed automatic; quattro | Assigned 4.2 × 17 panel screw for PR 3FV interior-light arrangement. Not a general fastener for every headliner or lighting connection. |
Installation guidance
Follow the factory procedure for the exact trim or lamp assembly. Protect nearby finish surfaces and identify the original positions of clips, screws and covers before disassembly. Observe any required electrical preparation for lighting work.
Align the component and start the screw carefully in the intended receiver. Use the correctly fitting tool and the specified tightening instruction for the connection. Do not use the screw to force a misaligned bezel or trim panel into place.
After reassembly, confirm that the handle or lamp operates correctly and that the surrounding trim is seated. Resolve any damaged mounting point or trapped wiring identified during the repair.
Ordering information
This listing supplies one genuine panel screw. Confirm the assembly quantity and all additional clips or fasteners required. Handle, emergency cable, bezel, lamp, wiring, trim panel and a complete installation kit are not included.
