OVERVIEW
Original combination hardware for the specified engine attachment

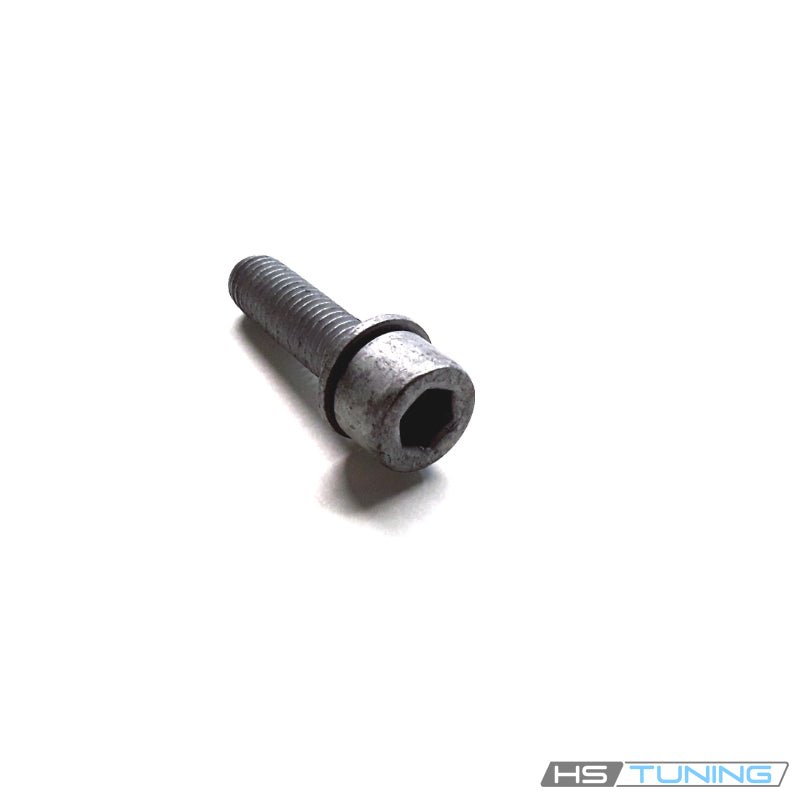

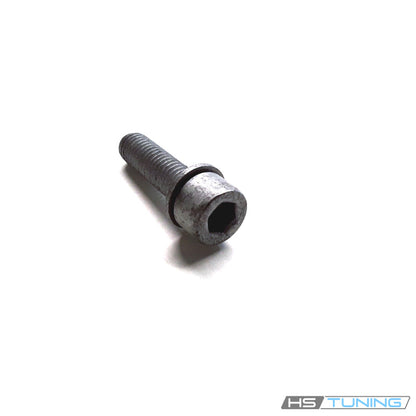

N-903-202-06 is a Genuine VW/Audi M10 x 35 bolt with an internal hex drive and a washer-style bearing arrangement. It is used at specific original engine mounting and support locations in the applications listed below.
The engine-support and transmission configuration determines the correct fastening point. Several neighboring bolts can share similar dimensions, so the full factory number, engine branch and original hardware arrangement must be checked.
Technical details
- Complete factory number: N-903-202-06.
- Factory specification: M10 x 35 mm internal-hex combination bolt.
- Design: Cylindrical socket head with washer-style bearing arrangement and threaded shank.
- Quantity supplied: one individual bolt; engine support, hydraulic mount, bracket and other attachment pieces are not included.
M10 x 35 describes nominal thread diameter and fastener length. No unverified thread pitch, strength class, tightening torque, weight or shipping dimensions are supplied.
Common reasons to replace
- A rounded internal drive that no longer permits controlled tightening.
- Damaged threads, a bent shank or a damaged bearing arrangement.
- Missing hardware or an incorrectly substituted fastener discovered during support or mounting service.
Engine movement or vibration can also come from a worn hydraulic mount, damaged bracket or another support fault. Inspect and diagnose the complete mounting system; this bolt does not replace the mount itself.
Vehicle fitment
Match the exact engine or transmission branch below and confirm the original joint. The bolt is not universal hardware for all engine or transmission mounts on the listed models.
| Vehicle | Model years | Engine | Configuration | Application restrictions |
|---|---|---|---|---|
| Audi A8 | 2009 | 4.2L V8 FSI gasoline, PR MN5 | D3 sedan, quattro; Automatic | Original engine-support fastening hardware specifying N-903-202-06. MN5 engine branch only; adjacent hydraulic-mount VIN limits do not apply to this bolt entry. |
| Audi A8 L | 2009 | 4.2L V8 FSI gasoline, PR MN5 | D3 long-wheelbase sedan, quattro; Automatic | Original engine-support fastening hardware specifying N-903-202-06. MN5 engine branch only; adjacent hydraulic-mount VIN limits do not apply to this bolt entry. |
| Audi A4 / A4 Avant | 2008 | 3.2L V6 gasoline, PR T14 | B7 sedan or Avant, quattro; Original configuration | Original engine mounting/support joint requiring N-903-202-06; T14 branch only. Preserve the specified washer and support arrangement. |
| Audi A4 Cabriolet | 2005 | 1.8L turbocharged or 3.0L V6 gasoline | B6 convertible, FWD; Multitronic CVT, PR G0Z | Original securing-parts/engine attachment in the G0Z branch calling for N-903-202-06; excludes quattro and non-CVT hardware. |
Installation guidance
Support the powertrain according to the factory procedure before releasing any mounting attachment. Preserve the specified washer and spacer order, align the components and start the bolt by hand.
Use the appropriate hex tool fully seated in the recess and follow the repair procedure for replacement rules and tightening sequence. Complete all prescribed clearance and support checks after service.
Ordering information
New and unused inventory. Supplied as one individual N-903-202-06 bolt. Confirm the complete number, original attachment and required quantity before ordering.
